Question 1

How to replace the fuel injectors and fuel rail on SFI engines (2.8L, 3.6L) on Cadillac CTS?

Accepted Answer

The replacement process for sfi engine (2.8L, 3.6L) fuel injectors and fuel rail begins with discharging fuel system pressure using a specific approach dependent on engine type. The next step involves removing both intakes. Begin by detaching the upper Intake Manifold followed by the removal of the lower Intake Manifold. Unsecure the fuel pipe retaining clip to detach its feed pipe connection from the fuel injector rail. Clear away debris with compressed air from the location where the fuel injectors pass into the Intake Manifold. Support the fuel rail before unbolt the fuel rail bolts to prevent injuring spray tips and electrical connector terminals. The process starts with unattaching the fuel rail containing fuel injectors by removing their electrical connectors then moving onto delete the fuel injector retainer clips and extract each fuel injector before disposal of the old fuel injector seals. First install new fuel injector seals before adding the fuel injector together with its retainer clip. The fuel injector electrical connection must have its connector replaced before locking the connection. Secure the fuel rail with its attached fuel injectors while tightening the fuel rail bolts at 10 nm (89 lb in). The operator should connect the fuel feed pipe to the fuel rail before using the retaining clip to install it. Then return the upper Intake Manifold into position.

Question 2

How to replace the fuel rail assembly on Cadillac XLR?

Accepted Answer

The replacement process of a Fuel Rail assembly requires disconnecting the negative Battery Cable followed by removing the Fuel Injector sight shield. Follow the fuel pressure relief procedure to empty the system pressure before starting the replacement process. The Fuel Rail assembly must be carefully unplugged with caution of the injector electric terminals and spray tip while supporting the rail to protect its components. The opening needs capping while also plugging holes to prevent external contaminants from entering. Follow the gm x 30a engine cleaning solution instructions to cleanse the Fuel Rail assembly whereas liquid cleaning solvents must be avoided. Cut the fuel feed and return pipes (2, 3) off from their connection points with the Fuel Rail and detach the positive crankcase ventilation (PCV) air tube from the cam cover and remove electrical connectors (1) from all fuel injectors before setting down the harness. After removing the engine wiring harness the technician should disconnect it from the Fuel Rail stud, the Fuel Rail attaching studs and the Fuel Rail assembly. The injector lower o-ring seals from each injector end need removal before disposal at the spray tip location. The installation requires removal of fuel injectors to proceed with the new injectors when replacing the Fuel Rail. An application of clean engine oil on the new lower injector o-ring seals follows, using caution to seal the Fuel Rail inlet and outlet ports with plugs for prevention of contamination. Monomolecular cleaning solutions and air pressure should not be used when working with Fuel Rail assemblies. After installing the fuel injectors start by placing new o-ring seals onto the spray tip ends before you install the Fuel Rail. Tighten the Fuel Rail attaching studs to 9 n.m using 80 lb in torque settings. Appy electrical connectors to fuel injectors as well as position fuel feed and return pipes onto the Fuel Rail before reattaching the negative cable to the battery. Turning on the ignition with engine off will validate fuel leak identification during a two-second ignition on period followed by a ten-second ignition off period which should be resumed by turning on ignition with engine off before inspecting for leaks. You should place the Fuel Injector sight shield in its proper position.

Question 3

How to replace the fuel injector and fuel rail on Cadillac SRX?

Accepted Answer

The replacement process of fuel injector and fuel rail starts with releasing fuel system pressure by using ch 48027 or performing the operation without it when needed. The first step includes taking out both the upper Intake Manifold before handling the lower Intake Manifold. First disconnect the fuel injectors rail from the fuel feed pipe by removing its retaining clip. Crowd out debris from the fuel injector Intake Manifold entry points by blowing compressed air through that area. In order to avoid damaging injector electrical connector terminals and spray tips during fuel rail bolt removal properly support the fuel rail. Secure the fittings along with plugging all opened holes to prevent contamination entry. Separate the fuel rail from other components before discharging and disconnecting the fuel injector electrical connector. Remove the fuel injector retainer clip then detach the fuel injector while throwing away used fuel injector seals. When installing the fuel injector one should use fresh seals and place the fuel injector into position before attaching the retainer clip. The work is complete by reattaching the fuel injector electrical connector then using the lock to secure it. Seal the install of the fuel rail with its fuel injectors by tightening each fuel rail bolt to 10 n.m (89 lb in). You should connect the fuel feed pipe to the fuel rail while installing the retaining clip before reattaching the upper Intake Manifold.

OEM Cadillac Fuel Rail

64 Fuel Rails found

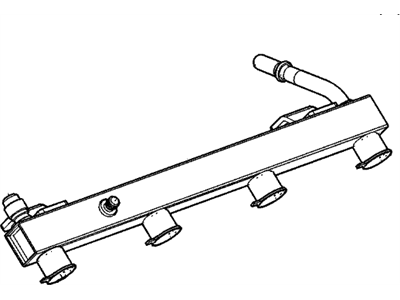

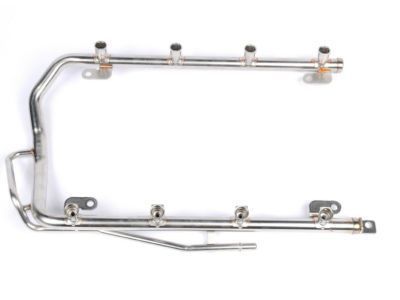

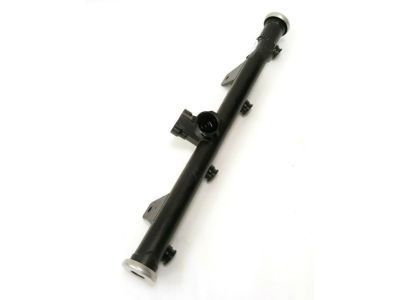

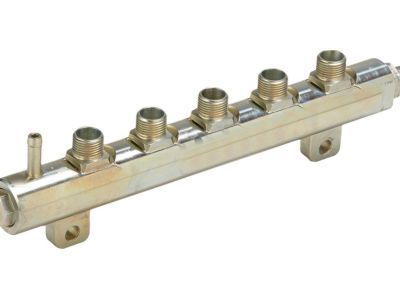

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail

Cadillac Fuel Rail
