OEM Cadillac Fuel Pressure Sensor

Fuel Tank Pressure Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Fuel Pressure Sensors found

View related parts

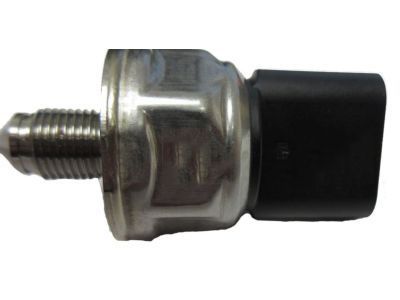

Cadillac Pressure Sensor
Part Number: 12673825
$67.97 MSRP: $123.02
You Save: $55.05 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12650701
Fits the following Cadillac Models:
- CTS | 2016 | V | 8 Cyl 6.2 L GAS
View related parts

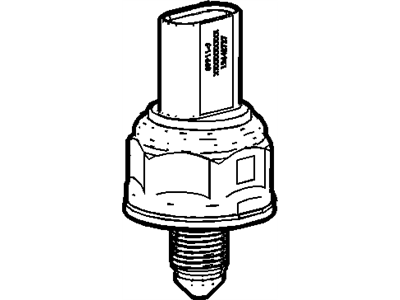

Cadillac Fuel Pressure Regulator, Passenger Side
Part Number: 16238399
$49.19 MSRP: $101.06
You Save: $51.87 (52%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Fuel Tank Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Pressure Regulator; Sensor, Early Fuel Evaporation; Fuel Gauge Sending Unit; Tank Pressure Sensor
- Position: Passenger Side
- Replaces: 12206740, 16217059, 16257276, 22678829, 09377680, 12219388, 16196060, 9377680
Fits the following Cadillac Models:
- CTS | 2003-2008 | Base, Luxury, Luxury Sport, V | 6 Cyl 2.8 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
- DTS | 2006-2008 | Base, Luxury, Platinum | 8 Cyl 4.6 L GAS
- DeVille | 2000-2005 | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
- Eldorado | 1998-2002 | ESC, ETC | 8 Cyl 4.6 L GAS
- Escalade | 2007 | Base | 8 Cyl 6.2 L GAS
- Escalade ESV | 2007, 2003 | Base | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
- Escalade EXT | 2007-2009, 2002-2003 | Base | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- SRX | 2004-2008 | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
- STS | 2005-2008 | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
- Seville | 1998-2004 | SLS, STS | 8 Cyl 4.6 L GAS
View More
View related parts
Cadillac Pressure Sensor, Passenger Side
Part Number: 13502903
$47.79 MSRP: $98.21
You Save: $50.42 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Tank Pressure Sensor; Level Sensor; Tank Pressure Sensor; Sensor; Sensor, Early Fuel Evaporation; Sensor, Fuel Tank Meter/Pump
- Position: Passenger Side
- Replaces: 13502510
Fits the following Cadillac Models:
- ATS | 2013-2019 | Base, Luxury, Performance, Premium, Premium Luxury, Premium Performance, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- CT4 | 2020-2024 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.6 L GAS
- CT5 | 2020-2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
- CT6 | 2016-2020 | Base, Luxury, Platinum, Premium Luxury, Sport, V | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 4.2 L GAS
- CTS | 2009-2019 | Base, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
- DTS | 2009-2011 | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
- Escalade | 2008-2023 | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2008-2023 | Base, Luxury, Platinum, Premium, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade EXT | 2008-2013 | Base, Luxury, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- SRX | 2010-2016 | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor
Part Number: 12682589
$51.22 MSRP: $104.02
You Save: $52.80 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12662738, 12652442
Fits the following Cadillac Models:
- ATS | 2016-2019 | Performance, Premium, Premium Luxury, V | 6 Cyl 3.6 L GAS
- CT6 | 2016-2018 | Base, Luxury, Platinum, Premium Luxury | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS
- CTS | 2017-2019 | Luxury, Premium, Premium Luxury, Vsport, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
- XTS | 2014-2019 | Vsport Platinum, Vsport Premium, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor
Part Number: 12673824
$64.05 MSRP: $130.10
You Save: $66.05 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12623130
Fits the following Cadillac Models:
- Escalade | 2015-2016 | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2015-2016 | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Pressure Sensor
Part Number: 12668189
$48.40 MSRP: $98.30
You Save: $49.90 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
Fits the following Cadillac Models:
- XTS | 2014-2019 | Base, Livery, Luxury, Platinum, Premium, Premium Luxury | 6 Cyl 3.6 L GAS
View related parts
Cadillac Pressure Sensor
Part Number: 12635273
$63.97 MSRP: $129.92
You Save: $65.95 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Pressure Sensor; Sensor; Injector; Sensor, Computer Control Sensors
- Replaces: 12633417
Fits the following Cadillac Models:
- ATS | 2013-2016 | Luxury, Performance, Premium, V | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- CTS | 2014-2016, 2011 | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- SRX | 2012-2016 | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor
Part Number: 12627092
$92.39 MSRP: $187.68
You Save: $95.29 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor; Sensor, Computer Control Sensors
Fits the following Cadillac Models:
- ATS | 2013-2016 | Base, Luxury, Performance, Premium | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
- CT6 | 2016-2017 | Base, Luxury, Plug-In | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- CTS | 2014-2016 | Base, Luxury, Performance, Premium | 4 Cyl 2.0 L GAS
View More
View related parts
Cadillac Pressure Sensor
Part Number: 12247409
$45.23 MSRP: $92.95
You Save: $47.72 (52%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor, Fuel Tank Meter/Pump
- Replaces: 88965447
Fits the following Cadillac Models:
- Escalade | 2007-2008 | Base, Platinum | 8 Cyl 6.2 L GAS
- Escalade ESV | 2004-2008 | Base, Platinum | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
- Escalade EXT | 2004-2008 | Base | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts
Cadillac Pressure Sensor
Part Number: 13574913
$26.19 MSRP: $46.76
You Save: $20.57 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor, Fuel Tank Meter/Pump
Fits the following Cadillac Models:
- CT6 | 2017-2018 | Plug-In | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- ELR | 2014-2016 | Base | 4 Cyl 1.4 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Cadillac Pressure Sensor
Part Number: 25201778
$43.97 MSRP: $89.30
You Save: $45.33 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection; Fuel Rail Pressure Sensor; Fuel Tank Pressure Sensor
- Replaced by: 28289962
Fits the following Cadillac Models:
- ATS | 2017-2019 | Base, Luxury | 4 Cyl 2.0 L GAS
- CT6 | 2018 | Base, Luxury, Plug-In | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- CTS | 2017-2019 | Base, Luxury | 4 Cyl 2.0 L GAS
View More
View related parts
Cadillac Water Sensor
Part Number: 12375515
$127.49 MSRP: $239.42
You Save: $111.93 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Fuel Tank Meter/Pump
- Replaces: 12511965
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Pressure Sensor
Part Number: 12708493
$22.47 MSRP: $42.20
You Save: $19.73 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection; Fuel Rail Pressure Sensor; Fuel Tank Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12684286, 12664124
Fits the following Cadillac Models:
- ATS | 2018 | Premium Luxury, Premium Performance, V | 6 Cyl 3.6 L GAS
- CT4 | 2020-2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.6 L GAS
- CT5 | 2020-2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
- CT6 | 2018-2020 | Base, Luxury, Platinum, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS
- CTS | 2017-2019 | V | 8 Cyl 6.2 L GAS
- Escalade | 2017-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2017-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- XT4 | 2019-2023 | Luxury, Premium Luxury, Sport | 4 Cyl 2.0 L GAS
- XT5 | 2017-2023 | Base, Livery, Luxury, Platinum, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
- XT6 | 2020-2023 | Luxury, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor
Part Number: 25201779
$59.26 MSRP: $107.26
You Save: $48.00 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Sensor, Computer Control Sensors
- Replaced by: 28289963
Fits the following Cadillac Models:
- CT6 | 2019-2020 | Platinum, V | 8 Cyl 4.2 L GAS
View related parts
Cadillac Pressure Sensor
Part Number: 13516496
$47.65 MSRP: $96.80
You Save: $49.15 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor, Computer Control Sensors; Sensor, Fuel Tank Meter/Pump
- Replaces: 13579380
Fits the following Cadillac Models:
- ATS | 2013-2016 | Base, Luxury, Performance, Premium, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- ELR | 2014 | Base | 4 Cyl 1.4 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Cadillac Pressure Sensor
Part Number: 13500745
$29.15 MSRP: $54.74
You Save: $25.59 (47%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Pressure; Fuel Injection Pressure Sensor; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor; Sensor, Computer Control Sensors; Sensor, Fuel Tank Meter/Pump
- Replaces: 13500747, 25780327
Fits the following Cadillac Models:
- SRX | 2012-2016 | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac Pressure Sensor
Part Number: 12642727
$66.74 MSRP: $120.80
You Save: $54.06 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
Fits the following Cadillac Models:
- CTS | 2016 | Vsport, Vsport Premium | 6 Cyl 3.6 L GAS
