How to replace the front door window regulator on Chevrolet Astro?

The first step to replace the front door Window Regulator begins with a trim panel removal before removing the inner panel upper bar. A soft-faced scraper will be needed to eliminate the water deflector. You should lift the window glass before applying body tape to secure the window position across the door frame for regulator removal. When power window functionality exists the power Window Regulator motor needs its wiring harness disconnected. A 6 mm (1/4 in) drill bit should be used to perform rivet heads extraction on the Window Regulator. You can remove the power Window Regulator by placing the regulator inside the door access then moving it forward and backward to release the arms from the sash and rail before combining the arms for extraction through the opening. To set up the new regulator move it into the access hole from the door until the Window Regulator arm rollers match with sash and regulator rail positions. Next step to push the regulator into the door opening to set the holes correctly. Use the heavy duty rivet gun (M 39010) to instal rivets onto the Window Regulator. If powered window capability is present install the wire harness to the regulator followed by placement of the water deflector and insertion of the upper panel bar. After removing window tape as well as door tape examine window functioning and fix the trim panel.

OEM Chevrolet Astro Window Regulator

Electric Power Window Regulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Window Regulators found

View related parts

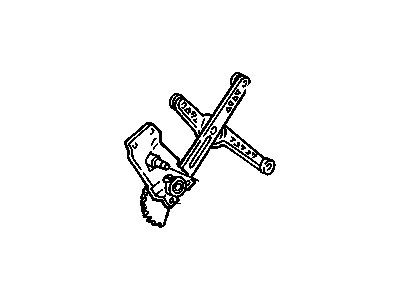

Chevrolet Astro Window Regulator
Part Number: 22049768
$42.62 MSRP: $85.56
You Save: $42.94 (51%)
ADD TO CART
Product Specifications
- Other Name: Regulator, Door And End Gate Window
- Replaced by: 88961505
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-2002 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts

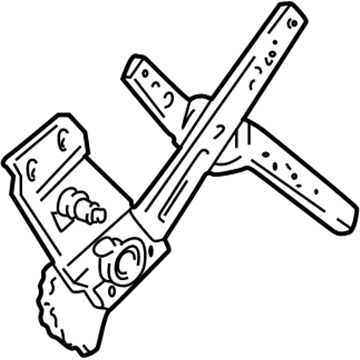

Chevrolet Astro Window Regulator
Part Number: 22049767
$42.62 MSRP: $85.56
You Save: $42.94 (51%)
ADD TO CART
Product Specifications
- Other Name: Regulator, Door And End Gate Window
- Replaced by: 88961505
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-2002 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Window Regulator, Front Passenger Side
Part Number: 15091384
$194.70 MSRP: $360.22
You Save: $165.52 (46%)
ADD TO CART
Product Specifications
- Other Name: Regulator, Front Door Window Regulator; Regulator; Regulator, Door And End Gate Window
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Window Regulator, Front Passenger Side
Part Number: 15172550
Product Specifications
- Other Name: Regulator, Front Door Window Regulator; Regulator; Regulator, Door And End Gate Window
- Position: Front Passenger Side
- Replaces: 15731176
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2005 Chevrolet Astro | Base, LS, LT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Window Regulator, Front Driver Side
Part Number: 15091383
Product Specifications
- Other Name: Regulator, Front Side Door Window; Regulator; Regulator, Door And End Gate Window
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Window Regulator, Front Passenger Side
Part Number: 14056094
Product Specifications
- Other Name: Regulator, Front Door Window Regulator; Regulator; Regulator, Door And End Gate Window
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1995 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Window Regulator, Front Driver Side
Part Number: 14056093
Product Specifications
- Other Name: Regulator, Front Door Window Regulator; Regulator; Regulator, Door And End Gate Window
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1995 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Window Regulator, Front Driver Side
Part Number: 15172549
$142.54 MSRP: $255.69
You Save: $113.15 (45%)
Product Specifications
- Other Name: Regulator, Front Door Window Regulator; Regulator; Regulator, Door And End Gate Window
- Position: Front Driver Side
- Replaces: 15731175
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2005 Chevrolet Astro | Base, LS, LT | 6 Cyl 4.3 L GAS

Chevrolet Astro Window Regulator

Our website offers an extensive catalog of genuine Chevrolet Astro Window Regulator at unbeatable prices. Every OEM Chevrolet Astro Window Regulator comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Astro Window Regulator Parts Questions & Experts Answers

Window Regulator, Front Driver Side
15172549
Q: How to replace the front door window regulator on Chevrolet Astro?
A: The first step to replace the front door Window Regulator begins with a trim panel removal before removing the inner panel upper bar. A soft-faced scraper will be needed to eliminate the water deflector. You should lift the window glass before applying body tape to secure the window position across the door frame for regulator removal. When power window functionality exists the power Window Regulator motor needs its wiring harness disconnected. A 6 mm (1/4 in) drill bit should be used to perform rivet heads extraction on the Window Regulator. You can remove the power Window Regulator by placing the regulator inside the door access then moving it forward and backward to release the arms from the sash and rail before combining the arms for extraction through the opening. To set up the new regulator move it into the access hole from the door until the Window Regulator arm rollers match with sash and regulator rail positions. Next step to push the regulator into the door opening to set the holes correctly. Use the heavy duty rivet gun (M 39010) to instal rivets onto the Window Regulator. If powered window capability is present install the wire harness to the regulator followed by placement of the water deflector and insertion of the upper panel bar. After removing window tape as well as door tape examine window functioning and fix the trim panel.
