OEM GMC A/C Condenser
Air Conditioning Condenser- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
52 A/C Condensers found

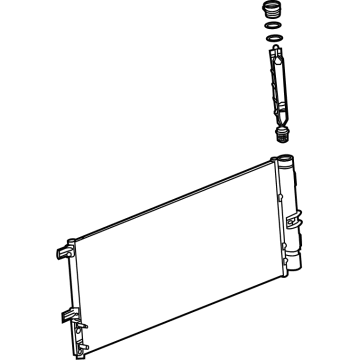

GMC Condenser
Part Number: 89019255$127.77 MSRP: $191.00You Save: $63.23 (34%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Replaces: 52495585, 89019055, 10371432
GMC Condenser
Part Number: 85524338$158.20 MSRP: $304.38You Save: $146.18 (49%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Condenser Assembly-A/C
- Replaced by: 85829168
GMC Condenser
Part Number: 23409063$174.20 MSRP: $260.40You Save: $86.20 (34%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Condenser Assembly-A/C; A/C Condenser
- Replaced by: 85822145
GMC Condenser
Part Number: 84722278$194.57 MSRP: $290.82You Save: $96.25 (34%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Condenser Assembly-A/C
- Replaced by: 86535151
GMC Condenser
Part Number: 89019256$142.17 MSRP: $212.52You Save: $70.35 (34%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Condenser, A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Replaces: 88986836, 10371431, 89019054
GMC Condenser
Part Number: 84243592$366.44 MSRP: $547.76You Save: $181.32 (34%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser, A/C Condenser
- Replaced by: 84655553
GMC Condenser
Part Number: 89019343$152.68 MSRP: $228.23You Save: $75.55 (34%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 89018828, 89018405, 89019147
Product Specifications- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
Product Specifications- Other Name: Condenser, A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Replaces: 52471231
Product Specifications- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 52461492
Product Specifications- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 52467045
Product Specifications- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser; Condenser, A/C Condenser
- Replaced by: 85145960
Product Specifications- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser A/C; Condenser, A/C Condenser
- Replaces: 15074425, 52472419
Product Specifications- Other Name: Condenser, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 52465295, 52465296
Product Specifications- Other Name: Condenser Assembly, A/C; A/C Condenser
Product Specifications- Other Name: Condenser, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 52479563, 52457306, 52450235
Product Specifications- Other Name: Condenser, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 03053293, 3053293
Product Specifications- Other Name: Condenser Assembly-A/C; A/C Condenser; Condenser, A/C Condenser
Product Specifications- Other Name: Condenser Assembly, A/C; A/C Condenser
- Product Specifications
- Other Name: Condenser Assembly, A/C; A/C Condenser; Condenser, A/C Condenser
- Replaces: 52471230, 52458718, 52494466
| Page 1 of 3 |Next >
1-20 of 52 Results
GMC A/C Condenser Parts Questions & Experts Answers
- Q: How to replace the A/C Condenser in an A/C system on GMC Envoy?A: Begin by removing the Radiator and then remove bolts that fasten the condenser to the Radiator. The next step involves removing the condenser from the mounting points on the Radiator. When replacing your condenser always add refrigerant oil into the new component if the original condenser is being replaced. Mount the condenser onto the Radiator before you move important components across from the old condenser. Secure the condenser in place to the mounts on the Radiator before installing retaining bolts with a torque setting of 28 n.m (21 lb ft). To complete this operation members will reinstall the Radiator and perform a/c system evacuations followed by refrigerant recharge then do a halogen leak detector (J 39400-A) examination on the component fittings.
- Q: How to Properly Service an A/C Condenser on GMC Sierra 1500?A: Before starting condenser replacement work you need to recover the refrigerant. The first step requires removing fascia together with radiator support bolts which can be accessed through the rear of the upper radiator support. Start by removing the compressor discharge hose assembly bolt attached to the condenser then unplug the compressor discharge hose assembly from the condenser. Disassemble the operation by first taking out the evaporator tube's nut and then disconnecting the tube from the condenser unit. Complete the condenser removal by disassembling the insulator retainer bolts alongside the upper insulator retainers until the condenser leaves the vehicle. The installation process requires refrigerant oil in the new condenser followed by proper reattachment of the vehicle's condenser. Use 2.4 Nm (21 lb in) torque to tighten the insulator retainer bolts when installing them with the upper insulator retainers. Attach the evaporator tube to the condenser through a new sealing washer before installing the evaporator tube nut with 16 Nm (12 lb ft) torque. Following compressor discharge hose installation using new sealing washers, users must tighten the discharge hose nut to 16 Nm (12 lb ft capacity). Begin by tightening the lower bolts to the hood latch support bracket at 9 Nm (80 lb in) then reinstall the radiator support while accessing its bolts on the upper radiator support rear side to reach the nut tightening to 16 Nm (12 lb ft). The installation sequence concludes with radiator support bracket bolt attachment followed by fascia installation then system evacuation and recharging and finally leak testing component fittings using J 39400-A Halogen Leak Detector.
- Q: How to replace the A/C Condenser in the HVAC system on GMC Canyon?A: Start by testing your hvac system's component fittings for leakage using the halogen leak detector (J 39400-A). Start by dissembling the Radiator followed by recovering the refrigerant from the system. Untighten the receiver dryer before you remove it followed by the removal of condenser inlet hose bolt and inlet hose. You should first remove both the condenser outlet hose bolt and the outlet hose. Release the condenser from its mounting points on the Radiator before taking it out in its entirety. Follow the specifications in the refrigerant system capacities to add oil to the new condenser. Mount the new condenser to the Radiator following the transfer of important components from the original condenser unit. Usehand the condenser to its mounts on the Radiator before torquing the retaining bolts to 28 n.m (21 lb ft). Reattach the receiver dryer first and afterward reconnect the condenser inlet hose using its bolt which needs to be tightened to 20 n.m (15 lb ft). Fasten the outlet hose to the condenser while tightening it to 20 n.m (15 lb ft). The last procedure involves installing the Radiator before conducting an evacuation and recharge of the a/c system with proper technique for all operations.
