How to replace the rear axle lower control arm on GMC Envoy?

First to replace the rear axle lower Control Arm, lift and hold the vehicle; then lift and hold the rear axle at the designed d - height. If the vehicle has air suspension, depressurize the air suspension system. Next, after you remove the axle mounting nut and bolt, from which you also remove the frame mounting nut and bolt, then you remove the lower Control Arm from the rear axle. For installation, first you install the lower Control Arm, then you fix the rear axle lower Control Arm to the frame and mounting nut and bolt, and finally fix the axle mounting bolt and nut. Tighten the lower Control Arm mounting bolts to 100 nm (74 ft. Lbs.), making sure that you refer to the fastener notice in service precautions. Finally, take out the rear axle support and lower the vehicle.

How to replace the lower control arm (1500) on GMC Sierra 1500?

Begin by elevating and supporting your vehicle before removing the tire along with wheel to replace the lower Control Arm (1500). Complete the following tasks: first, disconnect the stabilizer shaft link from the lower Control Arm and then remove the wheel drive shaft if your vehicle has it. Use mechanics wire or equivalent to support the knuckle assembly and upper Control Arm. First remove the lower Ball Joint retaining nut before using tools to disassemble the lower shock module bolts from the lower Control Arm. The j 43631 and j 45851 tools should be used to remove the lower Ball Joint connection between the Steering Knuckle. The nuts securing the lower Control Arm need removal before removing Control Arm hardware consisting of washers and Control Arm bolts. Position the lower Control Arm in the correct location and use Control Arm bolts a well as washers to secure it. Wedge the lower Control Arm retaining nuts right after installation before tightening them to 175 nm (129 lb ft). Lock down the lower Ball Joint inside the Steering Knuckle through the installation of a fresh retaining nut which you should tighten to 125 nm (92 lb ft). Follow the procedure to attach the lower shock absorber module mount bolts before applying 50 nm (37 lb ft) torque. First remove the upper Control Arm's support and Steering Knuckle support before reinstalling the wheel drive shaft when needed. Replace the stabilizer shaft link onto the lower Control Arm and add the tire along with wheel then pull off the support and lower the vehicle. Finally, align the front end.

How to replace the lower control arm (2500) on GMC Yukon?

Replacing the lower Control Arm (2500) requires initial vehicle lifting and then tire/wheel removal. First disconnect the stabilizer shaft link from the lower Control Arm before removing the torsion bars and shock absorber. The wheel drive shaft must be taken out next until the lower Ball Joint retaining nut needs disposal. You should use j 43631 - ball joint separator in combination with j 45851 - ball joint separator protector adapters to pull the lower Ball Joint out of the Steering Knuckle. Start by washing away the Control Arm nuts and washers before removing Control Arm bolts and Control Arm assembly. Lower Control Arm must be positioned before you install the Control Arm bolts along with washers . Secure the lower Control Arm retaining nuts into place while tightening them to 175 nm (129 lb ft). To install the lower Ball Joint into the Steering Knuckle, use a proper nut as follows: with captured washer reach 125 nm (92 lb ft) torque or without captured washer reach 50 nm torque plus 130 degrees (37 lb ft) torque. Secure the wheel drive shaft then reinstall the shock absorber and torsion bars. Begin by taking out support for both knuckle and upper Control Arm. Next attach stabilizer shaft link to lower Control Arm. After reinstalling the tire and wheel you must remove supports before lowering the vehicle to check front end alignment.

OEM GMC Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

233 Control Arms found

View related parts

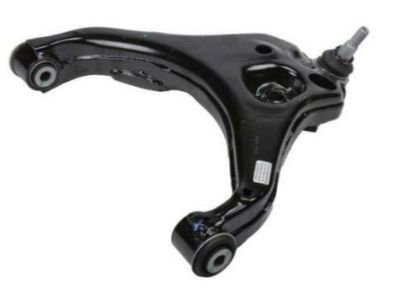

GMC Lower Control Arm, Passenger Side Part Number: 23224319
$121.14 MSRP: $206.25
You Save: $85.11 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
Fits the following GMC Models:
- Canyon | 2016-2022 | All Terrain, AT4, Denali, Elevation, SLE, SLT | 4 Cyl 2.8 L DIESEL
View related parts
GMC Lower Control Arm, Driver Side Part Number: 25997509
$388.44 MSRP: $639.89
You Save: $251.45 (40%)
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 10355407, 25997507, 25788110
Fits the following GMC Models:
- Sierra 1500 | 2007-2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2007-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2007-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Yukon | 2007-2014 | Denali, Denali Hybrid, Hybrid, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 1500 | 2007-2009 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts
GMC Lower Control Arm, Passenger Side Part Number: 15293527
$204.96 MSRP: $332.63
You Save: $127.67 (39%)
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 12472974, 15010340, 15083714
Fits the following GMC Models:
- Jimmy | 2000 | Diamond Edition, Envoy, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 2000-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm Part Number: 15578815
$99.68 MSRP: $178.00
You Save: $78.32 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Lower Control; Control Arm
- Position: Lower
- Replaced by: 12472995
Fits the following GMC Models:
- S15 | 1984-1990 | Base, EL, Gypsy, High Sierra, Sierra Classic | 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- S15 Jimmy | 1984-1991 | Base, Gypsy, High Sierra, Sierra Classic, SLE, SLS, SLT, Timberline | 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Sonoma | 1991 | Base, SLE | 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Syclone | 1991 | Base | 6 Cyl 4.3 L GAS
View More
View related parts
GMC Trailing Arm, Rear Driver Side Part Number: 23269737
$145.28 MSRP: $226.53
You Save: $81.25 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Trailing; Suspension Trailing Arm; Arm, Rear Axle Control Arm
- Position: Rear Driver Side
- Replaces: 25896862
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
GMC Upper Control Arm, Passenger Side Part Number: 85571708
$93.61 MSRP: $146.63
You Save: $53.02 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control
- Position: Passenger Side
Fits the following GMC Models:
- Hummer EV Pickup | 2022-2023 | 3X, Edition 1 | BATTERY EV (EV/BEV)
View related parts
GMC Upper Control Arm, Passenger Side Part Number: 12475482
$226.07 MSRP: $384.87
You Save: $158.80 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Steering Knuckle Upper & Lower Control; Control Arm
- Position: Passenger Side
- Replaced by: 25793553
Fits the following GMC Models:
- Yukon XL 2500 | 2000 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Upper Control Arm, Driver Side Part Number: 85571707
$98.29 MSRP: $153.96
You Save: $55.67 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control
- Position: Driver Side
Fits the following GMC Models:
- Hummer EV Pickup | 2022-2023 | 3X, Edition 1 | BATTERY EV (EV/BEV)
View related parts
GMC Upper Control Arm, Front Driver Side Part Number: 12376163
$228.94 MSRP: $360.23
You Save: $131.29 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Front Upper Control (Left-Hand); Control Arm; Arm Kit, Steering Knuckle Upper & Lower Control
- Position: Front Upper Driver Side
Fits the following GMC Models:
- C1500 | 1995-1996, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C2500 | 1995-1999, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1995-1996, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K2500 | 1995-1999, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- Safari | 1990-2005 | Base, GT, SL, SLE, SLT, SLX | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View More
View related parts
GMC Lower Control Arm, Front Driver Side Part Number: 19416906
$386.72 MSRP: $637.05
You Save: $250.33 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Front Lower Control; Control Arm; Arm Kit, Steering Knuckle Upper & Lower Control
- Position: Front Lower Driver Side
- Replaces: 15665554
Fits the following GMC Models:
- C1500 | 1988-1999 | Sierra, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1999 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Trailing Arm, Rear Driver Side Part Number: 84591014
$79.28 MSRP: $136.16
You Save: $56.88 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Trailing; Arm, Rear Axle Control Arm
- Position: Rear Driver Side
Fits the following GMC Models:
- Yukon | 2021-2023 | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon XL | 2021-2023 | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Trailing Arm, Rear Passenger Side Part Number: 23463142
$63.28 MSRP: $100.46
You Save: $37.18 (38%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Trailing
- Position: Rear Passenger Side
Fits the following GMC Models:
- Terrain | 2018-2022 | AT4, Denali, SL, SLE, SLT | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
GMC Lower Control Arm, Driver Side Part Number: 15777766
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 12388446, 15018806, 12472994
Fits the following GMC Models:
- Jimmy | 1995-2000 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1994-1999 | SL, SLE, SLS | 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm, Passenger Side Part Number: 15293529
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15056334, 15083716
Fits the following GMC Models:
- Jimmy | 2001 | Diamond Edition, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 2001-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm, Driver Side Part Number: 15293528
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 12472973, 15010339, 15083715
Fits the following GMC Models:
- Jimmy | 2000 | Diamond Edition, Envoy, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 2000-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm, Passenger Side Part Number: 15777765
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control; Control Arm
- Position: Passenger Side
- Replaces: 12361581, 12388445, 12472993, 15018805
Fits the following GMC Models:
- Jimmy | 1995-2000 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1994-1999 | SL, SLE, SLS | 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Upper Control Arm, Driver Side Part Number: 15213849
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 15167939
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Upper Control Arm, Passenger Side Part Number: 15213848
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15167934
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Lower Control Arm, Passenger Side Part Number: 15104116
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Lower Control Arm, Driver Side Part Number: 15104115
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS

| Page 1 of 12 |Next >

1-20 of 233 Results

GMC Control Arm

Want to cut long-term maintenance and repair costs? Choose OEM Control Arm. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Control Arm includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Control Arm Parts Questions & Experts Answers

Lower Control Arm, Driver Side
19133555
Q: How to replace the rear axle lower control arm on GMC Envoy?
A:
First to replace the rear axle lower Control Arm, lift and hold the vehicle; then lift and hold the rear axle at the designed d - height. If the vehicle has air suspension, depressurize the air suspension system. Next, after you remove the axle mounting nut and bolt, from which you also remove the frame mounting nut and bolt, then you remove the lower Control Arm from the rear axle. For installation, first you install the lower Control Arm, then you fix the rear axle lower Control Arm to the frame and mounting nut and bolt, and finally fix the axle mounting bolt and nut. Tighten the lower Control Arm mounting bolts to 100 nm (74 ft. Lbs.), making sure that you refer to the fastener notice in service precautions. Finally, take out the rear axle support and lower the vehicle.
Lower Control Arm, Driver Side
20832022
Q: How to replace the lower control arm (1500) on GMC Sierra 1500?
A:
Begin by elevating and supporting your vehicle before removing the tire along with wheel to replace the lower Control Arm (1500). Complete the following tasks: first, disconnect the stabilizer shaft link from the lower Control Arm and then remove the wheel drive shaft if your vehicle has it. Use mechanics wire or equivalent to support the knuckle assembly and upper Control Arm. First remove the lower Ball Joint retaining nut before using tools to disassemble the lower shock module bolts from the lower Control Arm. The j 43631 and j 45851 tools should be used to remove the lower Ball Joint connection between the Steering Knuckle. The nuts securing the lower Control Arm need removal before removing Control Arm hardware consisting of washers and Control Arm bolts. Position the lower Control Arm in the correct location and use Control Arm bolts a well as washers to secure it. Wedge the lower Control Arm retaining nuts right after installation before tightening them to 175 nm (129 lb ft). Lock down the lower Ball Joint inside the Steering Knuckle through the installation of a fresh retaining nut which you should tighten to 125 nm (92 lb ft). Follow the procedure to attach the lower shock absorber module mount bolts before applying 50 nm (37 lb ft) torque. First remove the upper Control Arm's support and Steering Knuckle support before reinstalling the wheel drive shaft when needed. Replace the stabilizer shaft link onto the lower Control Arm and add the tire along with wheel then pull off the support and lower the vehicle. Finally, align the front end.
Lower Control Arm, Rear
22868629
Q: How to replace the lower control arm (2500) on GMC Yukon?
A:
Replacing the lower Control Arm (2500) requires initial vehicle lifting and then tire/wheel removal. First disconnect the stabilizer shaft link from the lower Control Arm before removing the torsion bars and shock absorber. The wheel drive shaft must be taken out next until the lower Ball Joint retaining nut needs disposal. You should use j 43631 - ball joint separator in combination with j 45851 - ball joint separator protector adapters to pull the lower Ball Joint out of the Steering Knuckle. Start by washing away the Control Arm nuts and washers before removing Control Arm bolts and Control Arm assembly. Lower Control Arm must be positioned before you install the Control Arm bolts along with washers . Secure the lower Control Arm retaining nuts into place while tightening them to 175 nm (129 lb ft). To install the lower Ball Joint into the Steering Knuckle, use a proper nut as follows: with captured washer reach 125 nm (92 lb ft) torque or without captured washer reach 50 nm torque plus 130 degrees (37 lb ft) torque. Secure the wheel drive shaft then reinstall the shock absorber and torsion bars. Begin by taking out support for both knuckle and upper Control Arm. Next attach stabilizer shaft link to lower Control Arm. After reinstalling the tire and wheel you must remove supports before lowering the vehicle to check front end alignment.
