How to service and repair the rear upper control arm on GMC Yukon XL 1500?

First, to service and repair rear upper control arm, raise and support the vehicle. If equipped, remove the Real Time Damping (RTD) sensor. Use the wrench mobility to remove the upper control arm retaining nut and bolt from the frame bracket, remove of the retaining nut and bolt from the axle bracket, then the upper control arm is removed. For installation, start with the upper control arm at the position and install the retaining bolt and nut to the axle bracket, then install the retaining bolt to the frame bracket. It is very important not to tighten nuts until you are at the curb height in the suspension. When you've fixed the upper control arm retaining nut, tighten the retaining bolts to 105 Nm(77 ft. lbs.); Last but not least, reconnect the RTD sensor where available and return the vehicle to the ground.

How to service and repair the front lower control arm on GMC Yukon XL 1500?

To service and repair front lower Control Arm start by lifting and supporting the vehicle. Take off the tire and wheel off, if equipped disconnect the real time damping (RTD) link rod from the sensor. Subsequently, uninstall the front coil spring. Go ahead and take off lower Control Arm nuts and washers (15 Series), and then lower Control Arm bolts (15 Series). Then remove the nuts and washers (25 Series) on the lower Control Arm, in case of car series 25 and the lower Control Arm bolts, please. After that, you have to take off the lower ball joint stud nut and separate the lower ball joint stud from the Steering Knuckle with the help of the ball joint separator (J43631). Install the new lower Control Arm after detaching the lower Control Arm and then attach the ball joint stud to the knuckle steering after doing the safety check to tighten the lower ball joint stud nut to 137 nm (101ft. Lbs.). Replace the front coil spring, and the lower Control Arm bolts (15 Series) and lower Control Arm nuts and washers (15 Series) and tighten tighten the nuts to 145 nm (107 ft. Lbs.). Next, install the lower Control Arm bolts (25 Series), and lower Control Arm nuts and washers (25 Series), by tightening the nuts to 145 nm (107 ft. Lbs.). Lastly replace the front stabilizer shaft link, the Shock Absorber, the tire and wheel, remove the safety stands and lower the vehicle and check the wheel alignment.

OEM GMC Yukon XL 1500 Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Control Arms found

View related parts

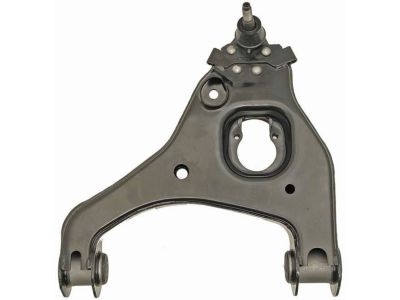

GMC Yukon XL 1500 Lower Control Arm, Passenger Side Part Number: 20832023
$626.80 MSRP: $828.34
You Save: $201.54 (25%)
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15103879, 25909327, 12475476
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2013 GMC Yukon XL 1500 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

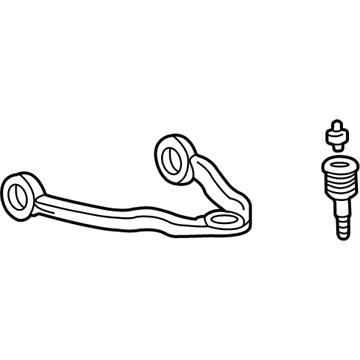

GMC Yukon XL 1500 Upper Control Arm, Front Part Number: 15864153
$241.13 MSRP: $391.36
You Save: $150.23 (39%)
ADD TO CART
Product Specifications
- Other Name: Arm, Front Upper Control; Suspension Control Arm and Ball Joint Assembly.; Arm, Steering Knuckle Upper & Lower Control
- Position: Front Upper
- Replaces: 15047200
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2006 GMC Yukon XL 1500 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Passenger Side Part Number: 20869202
$317.05 MSRP: $539.77
You Save: $222.72 (42%)
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15948968, 22952194, 25788115, 25868824
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2014 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Driver Side Part Number: 20869201
$317.05 MSRP: $539.77
You Save: $222.72 (42%)
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 25868823, 15948967, 22952193, 25788114
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2014 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Driver Side Part Number: 20832022
$617.53 MSRP: $828.34
You Save: $210.81 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.; Arm Kit, Steering Knuckle Upper & Lower Control
- Position: Driver Side
- Replaces: 12475475, 15103878, 25909326
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2013 GMC Yukon XL 1500 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Upper Control Arm, Passenger Side Part Number: 25812726
$187.39 MSRP: $314.31
You Save: $126.92 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Front Upper Control *Forged Steel; Suspension Control Arm and Ball Joint Assembly.; Arm, Steering Knuckle Upper & Lower Control
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2014 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Upper Control Arm, Driver Side Part Number: 25812725
$187.39 MSRP: $314.31
You Save: $126.92 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Front Upper Control *Forged Steel; Suspension Control Arm and Ball Joint Assembly.; Arm, Steering Knuckle Upper & Lower Control
- Position: Driver Side
- Replaces: 15096197
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2014 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Passenger Side Part Number: 25997510
$372.58 MSRP: $639.89
You Save: $267.31 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 25997508, 25788111
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Driver Side Part Number: 25997509
$388.44 MSRP: $639.89
You Save: $251.45 (40%)
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 10355407, 25997507, 25788110
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Upper Control Arm Part Number: 25905442
$166.52 MSRP: $283.49
You Save: $116.97 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Front Upper
- Replaces: 15224737, 15110013, 15049881
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Rear Part Number: 22868629
$52.53 MSRP: $89.43
You Save: $36.90 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Trailing Arm; Suspension Control Arm; Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2014 GMC Yukon XL 1500 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Upper Control Arm, Rear Part Number: 15767252
$98.75 MSRP: $154.69
You Save: $55.94 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Upper Control; Suspension Control Arm; Control Arm; Arm, Rear Axle Control Arm
- Position: Rear Upper
- Replaces: 15133164, 15208540
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2010 GMC Yukon XL 1500 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Passenger Side Part Number: 12475480
$282.85 MSRP: $445.05
You Save: $162.20 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Steering Knuckle & Control Arm Assembly; Suspension Control Arm and Ball Joint.
- Position: Passenger Side
- Replaces: 12472818
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2006 GMC Yukon XL 1500 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Driver Side Part Number: 12475479
$292.45 MSRP: $460.16
You Save: $167.71 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Steering Knuckle & Control Arm Assembly; Suspension Control Arm and Ball Joint.
- Position: Driver Side
- Replaces: 12472817
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2006 GMC Yukon XL 1500 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 1500 Upper Control Arm, Rear Part Number: 20917465
$48.53 MSRP: $95.03
You Save: $46.50 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm; Link, Rear Axle Control Arm; Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2014 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 6.2 L FLEX
View related parts
GMC Yukon XL 1500 Lower Control Arm, Driver Side Part Number: 12478067
$130.12 MSRP: $204.73
You Save: $74.61 (37%)
ADD TO CART
Product Specifications
- Other Name: Suspension Control Arm and Ball Joint Assembly; Control Arm Assembly; Arm Kit, Steering Knuckle Upper & Lower Control; Control Arm
- Position: Lower Driver Side
- Replaces: 12475523, 12477633
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2002 GMC Yukon XL 1500 | SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
GMC Yukon XL 1500 Upper Control Arm Part Number: 12475485
$102.18 MSRP: $152.05
You Save: $49.87 (33%)
ADD TO CART
Product Specifications
- Other Name: Control Arm
- Position: Upper
- Replaces: 12474578
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2001 GMC Yukon XL 1500 | Denali, SLE, SLT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 1500 Lower Control Arm, Front Passenger Side Part Number: 12478068
Product Specifications
- Other Name: Arm Kit, Front Lower Control (Right-Hand); Suspension Control Arm and Ball Joint Assembly.; Arm Kit, Steering Knuckle Upper & Lower Control
- Position: Front Lower Passenger Side
- Replaces: 12477634, 12475524
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2002 GMC Yukon XL 1500 | SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS

GMC Yukon XL 1500 Control Arm

Want to cut long-term maintenance and repair costs? Choose OEM Control Arm. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Yukon XL 1500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Yukon XL 1500 Control Arm includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Yukon XL 1500 Control Arm Parts and Q&A

Lower Control Arm, Rear
22868629
Q: How to service and repair the rear upper control arm on GMC Yukon XL 1500?
A:
First, to service and repair rear upper control arm, raise and support the vehicle. If equipped, remove the Real Time Damping (RTD) sensor. Use the wrench mobility to remove the upper control arm retaining nut and bolt from the frame bracket, remove of the retaining nut and bolt from the axle bracket, then the upper control arm is removed. For installation, start with the upper control arm at the position and install the retaining bolt and nut to the axle bracket, then install the retaining bolt to the frame bracket. It is very important not to tighten nuts until you are at the curb height in the suspension. When you've fixed the upper control arm retaining nut, tighten the retaining bolts to 105 Nm(77 ft. lbs.); Last but not least, reconnect the RTD sensor where available and return the vehicle to the ground.
Lower Control Arm, Passenger Side
12475480
Q: How to service and repair the front lower control arm on GMC Yukon XL 1500?
A:
To service and repair front lower Control Arm start by lifting and supporting the vehicle. Take off the tire and wheel off, if equipped disconnect the real time damping (RTD) link rod from the sensor. Subsequently, uninstall the front coil spring. Go ahead and take off lower Control Arm nuts and washers (15 Series), and then lower Control Arm bolts (15 Series). Then remove the nuts and washers (25 Series) on the lower Control Arm, in case of car series 25 and the lower Control Arm bolts, please. After that, you have to take off the lower ball joint stud nut and separate the lower ball joint stud from the Steering Knuckle with the help of the ball joint separator (J43631). Install the new lower Control Arm after detaching the lower Control Arm and then attach the ball joint stud to the knuckle steering after doing the safety check to tighten the lower ball joint stud nut to 137 nm (101ft. Lbs.). Replace the front coil spring, and the lower Control Arm bolts (15 Series) and lower Control Arm nuts and washers (15 Series) and tighten tighten the nuts to 145 nm (107 ft. Lbs.). Next, install the lower Control Arm bolts (25 Series), and lower Control Arm nuts and washers (25 Series), by tightening the nuts to 145 nm (107 ft. Lbs.). Lastly replace the front stabilizer shaft link, the Shock Absorber, the tire and wheel, remove the safety stands and lower the vehicle and check the wheel alignment.
