Make sure this part fits

GM 15214345
Wiper Arm

2002-2009 GM

Customer Questions & Expert Answers (17)

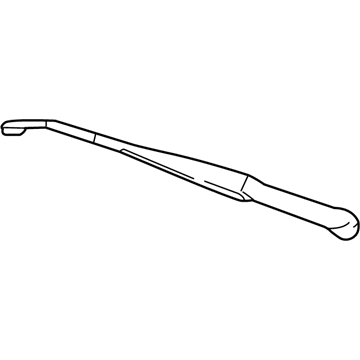

GM 15214345 Wiper Arm
GM 15214345 Wiper Arm
GM 15214345 Wiper Arm
  • Part Description
    Arm, Windshield Wiper
  • Replaces
    12487603
  • Manufacturer
    General Motors
Make sure this part fits
$65.41 MSRP: $116.80
You Save: $51.39 (44%)
Ships in 1-3 Business Days
1
ADD TO CART

  • 15214345 Wiper Arm is Ref No. 3 in the diagram below

    2006 Chevy Trailblazer EXT Wiper Arm Diagram for 15214345
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15214345

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2007 Buick RainierCXL, CXL Plus6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2009 Chevrolet TrailblazerBase, LS, LT, LTZ, North Face, SS6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2002-2006 Chevrolet Trailblazer EXTLS, LT, North Face6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2009 GMC EnvoyDenali, SLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2006 GMC Envoy XLDenali, SLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2004-2005 GMC Envoy XUVSLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2004 Oldsmobile BravadaBase6 Cyl 4.2 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 15214345 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15214345 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the wiper arm on Buick Rainier? Posted by Customer
    A:
    Removing the Wiper Arm requires two steps: first remove the cover from the Wiper Arm's nut before holding the Wiper Arm to remove its nut. Apply inward pressure at the Wiper Arm pivot to gain loose separation from the Drive Shaft then continue with removal steps. If the Wiper Arm does not come off a battery terminal puller will be needed as an additional removal tool. After loosening the Wiper Arm from its pivot shaft position remove it completely along with the Wiper Arm blade from the arm itself. Run a wire brush on the Drive Shaft knurls until clean. Begin Wiper Blade installation by putting the Wiper Arm blade onto the Wiper Arm followed by placing the Wiper Arm on the Drive Shaft. Use the windshield blackout dots to align the Wiper Arm blade then fasten the Drive Shaft nut until it reaches 30 n.m (22 lb ft) torque. The wiper function should be checked after you replace the cover on the nut.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the wiper arm on GMC Envoy? Posted by Customer
    A:
    Start by removing the protective cover from the wiper nut and grip the arm firmly before taking out its mounting nut. A battery terminal puller requires you to push inward at the Wiper Arm pivot to disconnect it from the Drive Shaft if rocking fails to loosen it. After removing the Wiper Arm push the Wiper Arm blade off its spindle and scrub the Drive Shaft knurls with a wire brush. First attach the Wiper Arm blade to its arm before putting the arm onto the Drive Shaft. Reverse the Wiper Blade properly over the dots in the tinted windshield area before attaching the nut at the Drive Shaft and tightening it to 30 n.m (22 lb ft). After putting the nut cover back in place use the wiper control to check if everything works right.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the first step to replace the rear wiper arm for the 2006 Buick Rainier? Posted by Customer
    A:
    Place the arm in the mid-wipe position on the rear glass and disconnect the washer hose.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What is the first step to replace the wiper arm for the 2005 Buick Rainier? Posted by Customer
    A:
    First, remove the cover from the nut on the wiper arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What is the process for installing the new wiper arm for the 2002 Chevrolet Trailblazer? Posted by Customer
    A:
    Attach the wiper arm blade to the wiper arm, position the wiper arm to align with the previously made mark on the windshield, install the wiper arm onto the drive shaft, and secure it with the nut, tightening it to 30 N.m (22 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    How should the wiper arm be positioned during installation for the 2004 Chevrolet Trailblazer? Posted by Customer
    A:
    Position the wiper arm into the park ramp.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What should you do after aligning the wiper arm blade for the 2005 Chevrolet Trailblazer? Posted by Customer
    A:
    Secure the nut on the drive shaft, tightening it to 30 N.m (22 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What should you do after securing the wiper arm for the 2003 Chevrolet Trailblazer? Posted by Customer
    A:
    Replace the cover on the nut, clean any marks or masking tape from the windshield, and operate the wipers to ensure proper functionality.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What should be done after disconnecting the washer hose for the 2009 Chevrolet Trailblazer? Posted by Customer
    A:
    Remove the wiper arm cover and disengage the nut that retains the wiper arm to the pivot shaft, then remove the wiper arm from the pivot shaft.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What should you do if rocking the wiper arm does not loosen it for the 2008 GMC Envoy? Posted by Customer
    A:
    Use a battery terminal puller.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    How do you further loosen the wiper arm from the drive shaft for the 2009 GMC Envoy? Posted by Customer
    A:
    Push inward at the wiper arm pivot to loosen it.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What is the final step after installing the wiper arm for the 2003 GMC Envoy? Posted by Customer
    A:
    Reinstall the wiper arm cover and reconnect the washer hose.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What should be done if necessary after removing the wiper arm for the 2007 GMC Envoy? Posted by Customer
    A:
    Detach the wiper arm blade from the wiper arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What is the final step after completing the installation for the 2005 GMC Envoy? Posted by Customer
    A:
    Inspect the operation of the endgate window.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What if the wiper arm blade needs to be detached for the 2002 GMC Envoy? Posted by Customer
    A:
    If necessary, detach the wiper arm blade from the wiper arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What is the final step after securing the wiper arm for the 2008 GMC Envoy? Posted by Customer
    A:
    Reposition the wiper arm cover and reconnect the washer hose.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Wiper Arm 15214345 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15214345 Wiper Arm is available in the market under the name GM Windshield Wiper, Wiper Arm. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15214345 Wiper Arm fits certain Chevrolet Trailblazer, Trailblazer EXT models, as well as GMC Envoy, Envoy XL, Envoy XUV. Additionally, it is compatible with Buick Rainier and Oldsmobile Bravada models.
The original GM component designated by manufacturer part number 15214345 maintains top performance when functioning as the Arm, Windshield Wiper unit. The component 15214345 is constructed from durable material and its dimensions span 3.3 x 21.7 x 1.4 inches while weighing 1.00 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Front Arm; Arm, Windshield Wiper Transmission. The part 15214345 has available replacement options 12487603. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
If you want to save money in the long run on maintenance and repairs, you should choose OEM products because they're of the top level of durability. Are you on the quest of finding GM parts, our site is worth a visit. We stock an endless selection of high-quality GM components including things like ignition coils all the way through to fan shrouds and all at prices that can not be matched. You have nothing to worry about because all our OEM parts are covered with a manufacturer warranty, which guarantees superior quality and value.
