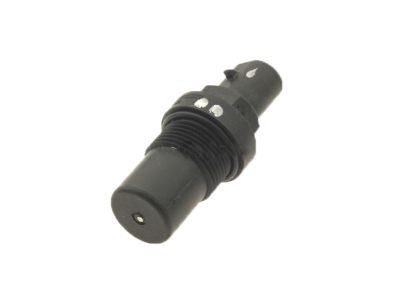

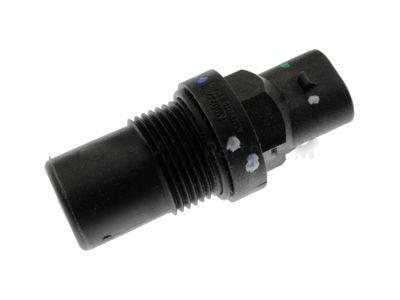

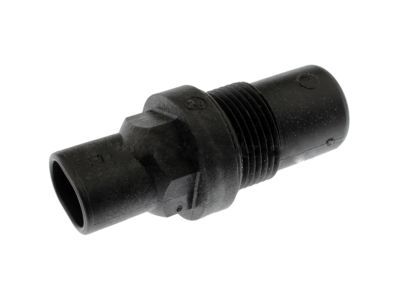

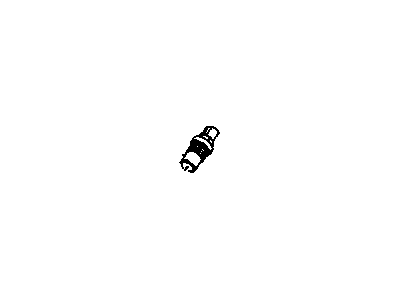

GM 19302667
Vehicle Speed Sensor

Before starting work you must raise the vehicle and remove all related components including the tire wheel brake rotor and wiring harness. Unplug the Wheel Speed Sensor electric connector then release its wiring harness retainer parts. Gently pull the sensor in a straight line from the bore by unscrewing the mounting screw. Doing this without tools prevents potential sensor body damage. Leaving the stainless steel shim attached to the bearing assembly is vital so keep it in place; when the bearing assembly needs replacement both sensor and abs functionality require this part for operation. Be careful during bearing cleaning to stop grease inside the sealed unit from getting contaminated which can damage the bearing faster. After taking out the Wheel Speed Sensor from its hub and bearing location put in the new speed sensor which includes a fresh o-ring. Get rid of the aged o-ring and apply a thin layer of bearing grease to the new o-ring before putting it in place making sure not to touch the bore of the sensor. Connect the Wheel Speed Sensor electrical wires before threading the speed sensor mounting screw and tightening it to 18 nm (13 ft. Lbs.). The new speed sensor package comes with suitable clips on the wire so avoid reusing your old setup. First position the Wheel Speed Sensor wiring harness onto the frame then Control Arm before adding the brake rotor and returning the wheel and tire to their place.

Raise the vehicle and take off the wheel and tire to get to the brake rotor for Wheel Speed Sensor replacement. Pull off the Wheel Speed Sensor wiring harness retainers and disconnect the electric connection. Use fingers to gently draw the sensor straight from the bore space without tools to avoid breaking the sensor casing. Maintaining the stainless steel shim directly attached to the bearing assembly will help preserve sensor and abs performance so do not attempt to remove it. Keep the bearing lubricant protected during cleaning and hub work to prevent fast bearing breakdown. Install the new speed sensor and its included o-ring into the hub and bearing assembly. Dispose of the old o-ring and apply light bearing grease to only the o-ring and the sensor ends that touch it. Avoid placing grease inside the sensor bore. Put the speed sensor into the hub and bearing parts then fasten the speed sensor mounting screw at 17 nm (12 ft. Lbs.). Plug back the electrical wires while changing to new retaining clips from the kit. Place both parts of the Wheel Speed Sensor wiring harness onto its designated locations on the frame and control arm. Then put on the brake rotor before putting back the wheel and tire.

Start by lifting your vehicle and putting it on support equipment before you remove both wheel and tire for every 4wd or 2wd vehicle model when replacing the Wheel Speed Sensor. You need to remove the brake rotor that applies to 1500 series models. Disconnect the wss cable mounting clips from the knuckle, upper Control Arm, frame mounting points, wss cable electric connector and wss bolt attachment point. Once mounted on the 2500/3500 series the wss needs to be withdrawn directly from its hub and bearing setup without applying force that will harm the sensor. Use the wss bore plug to shield the mounting space then brush the hub mounting area clean before applying thin gm p/n 01051344 lubricant to both hub and sensor o-ring surface. Simply set the wss properly in line with the hub while making sure it lays flat. Next attach the mounting bolt and tighten it at 18 nm (13 ft. Lbs). Put back the wss cable mounting clips on their original places at the knuckle, upper Control Arm, and frame bracket while joining the wss cable's electrical connection. After completing these actions replace the specific brake rotor for 1500 engines and install the tire wheel assembly before doing the required diagnostics.

The procedure to replace an output shaft speed sensor on 2-wheel drive (2WD) vehicles begins with proper lifting and supporting of the vehicle. Start by disconnecting the output speed sensor electric wire before you remove the output speed sensor bolt and the sensor itself. Perform visual checks on the output speed sensor to identify any damage. Apply automatic transmission fluid to the output speed sensor seal before installing your output speed sensor. Screw the output speed sensor bolt into place while applying a torque of 11 Nm which equals 96 inch lbs. Return the output speed sensor electrical connector to its place after which you can lower the vehicle.

To change the VSS (Vehicle speed Sensor) for the 4L60-E transmission, there are the instructions to disconnect the harness connector, and then disconnect the bolt and then remove the VSS and the circle seal. During installation, fit the O-ring seal on the vehicle speed sensor and apply a very thin film of transmission fluid before installing the sensor into the transmission case. Put the bolt and tighten it to 11 Nm (97 inch lbs), after that connect the wiring harness electric connection to the vehicle speed sensor. Finally, fill as necessary.

Start by properly supporting the vehicle then lift it off the ground before a sensor replacement process can begin. Initiate the removal of the input speed sensor electrical connector from the sensor bolt at which point you can detach the input speed sensor . Check the input speed sensor completely because it might display signs of damage. Automobile transmission fluid must first coat the input speed sensor seal before installing this sensor. Tighten the input speed sensor bolt to a torque of 11 Nm (96 inch lbs.). After installing the input speed sensor electrical connection you must finally lower the vehicle.

Before working on the Wheel Speed Sensor of a 4wd antilock brake system you must lift the vehicle undergo wheel removal. Move on to remove the brake rotor designed for 1500 models after extraction. When removing the wss bolt and sensor from the bore employ slow movements to prevent breaking the sensor structure. On models 2500/3500 you must take out the wss from hub/bearing assembly before disconnecting wss cable-mounting clips from knuckle uppers Control Arm and frame plus disconnecting the wss cable electrical connector. Return the wss to the hub/bearing assembly and secure it with the mounting bolt at 18 n.m torque setting (13 lb ft). Reinstall wss cable mounting clips to the frame parts before attaching its electrical connector to the wss component. Reinstall the brake rotor for 1500 models as well as the tire and wheel unit before completing the diagnostic system check - abs tests.

After lifting the vehicle set it on supports you must remove the tire and wheel to access the Wheel Speed Sensor. Disconnect the brake rotor first then the Wheel Speed Sensor (WSS) mounting bolt. Remove the sensor gently through the bore without tools to protect its body. To begin the job extract the Wheel Speed Sensor from the hub/bearing assembly and remove the wss cable mounting clips across both parts of the suspension. Separate the wss cable electrical connector. Fit the wss unit into the wheel bearing center space then bolt it down using the mounting bolt at 18 nm (13 ft. Lbs.). Set the wss cable mounting clips back on the transmission knuckle and frame before connecting the electrical connector at the wss cable. Reinstall the brake rotor as well as the tire and wheel assembly and go back to the antilock brake system basic scan configuration.

Before you start replacing the front Wheel Speed Sensor on a four-wheel-drive vehicle you need to remove the front Wheel Bearing and hub assembly. Remember to locate the Wheel Speed Sensor harness between the widest section of the bolt holes at this part. Apply white colored paint at the wheel sensor connector position on the wheel assembly. Focus your force on the Wheel Hub when removing the Wheel Speed Sensor without touching its tone wheel. Put the Wheel Speed Sensor in waste and use a proper device to pull it away from the Wheel Hub/bearing housing. Before installing set the Wheel Speed Sensor harness directly on the centerline of Wheel Hub/bearing assembly at the space between bolt holes. Push the new Wheel Speed Sensor directly onto the hub/bearing assembly until it sits securely against the housing wall. Put back the front Wheel Bearing and hub assembly with the speed sensor harness placed in an upward direction. Complete the assembly by attaching the Wheel Speed Sensor harness bracket bolt and fitting it with a torque of 20 nm (14 lb ft).

A mechanic must raise and properly support 2-wheel drive (2WD) vehicles before beginning Output Shaft Speed Sensor replacement. The installation process begins with disconnecting the output speed sensor connection wires followed by removing its bolt and finally extracting the output speed sensor from its position. Prior to installation check the output speed sensor for indications of damage. Lubricate the output speed sensor seal using automatic transmission fluid as you install the output speed sensor . Install the output speed sensor bolt and tighten it to 11 Nm (96 inch lbs.)Reconnect the output speed sensor electrical connector after lowering the vehicle.

Begin the Transmission Speed Sensor replacement process by turning off the vehicle's ignition and unconnecting the external wiring harness from the sensor. Use a wrench to remove the bolt from the speed sensor before you extract the sensor carefully from its location. Rotating the new speed sensor in its retaining bracket during installation will result in improper performance. Mount an installation O-ring on the speed sensor before applying clean transmission fluid for lubrication. Put the new speed sensor into the bore making sure its hole in the retaining bracket matches up with the hole in the speed sensor boss. To install the speed sensor bolt apply 12 Nm (108 inch lbs.) torque force. Reconnect the external wiring harness to the speed sensor at the end of installation.

The first step to replace the Vehicle Speed Sensor (VSS) in nv 4500 manual transmission starts by properly elevating and supporting the vehicle. You should disconnect the vss electrical connector first before taking out both the vss and its seal. Apply a thin coating of transmission fluid on the new o-ring seal using gm p/n 12346190 (Canadian P/N 10953477) or an equivalent product before installation. Fit the Vehicle Speed Sensor into position then torque it to 16 nm (12 ft. Lbs.). Return the vss electrical connector after completing the installation process then lower the vehicle back to the ground.

To remove the Vehicle Speed Sensor (VSS) the vehicle must be first lifted, and a drain pan should be placed below. Disconnect the electrical connector from sensor; meanwhile, remove the bolt. Using the twisting and pulling motion, remove out the vehicle speed sensor from the case and dispose of the O-ring seal. For installation, apply a new O-ring seal on the vehicle speed sensor and before reinserting the sensor into the transmission case, coat with clean transmission fluid. Tighten the bolt to 11 Nm (97 inch lbs) by installing it. Unplug the wiring harness electrical connector from the vehicle speed sensor, take out the drain pan, drop the vehicle, and top the transmission off to the right level with DEXRON (R) III transmission fluid.

To change the Wheel Speed Sensor (WSS) in an a4wd vehicle first use jack stands to lift the car and then remove the tire and wheel unit. Uninstall the brake rotor from its position. Prioritize wiping away all dirt in the region because dirt inside a sealed Wheel Bearing can reduce bearing life. Carefully take out the sensor from its bore by pulling straight without forcing or risk breaking the part. To disconnect the wss cable system remove the clips from the three attached components plus the electrical connector. When installing keep the wss bore plugged to stop dirt entry while the hub receives Wheel Bearing lubricant and sensor o-ring. Apply gm p/n 01051344 Wheel Bearing lubricant on the hub surface and sensor contact. Fits the wss unit into the hub/bearing assembly space and fastens it by tightening the bolt to 18 nm (13 ft. Lbs.). Reposition the wss mounting clips back onto the knuckle, upper Control Arm, and frame and connect the wss cable electrical component. Put everything back in its place starting from the brake rotor through the wheel and tire then resume antilock brake system checks at the beginning point.

Rise the vehicle and disconnect the electrical cables from the vehicle speed sensor to work on its manual transmission NV 3500 counterpart. Take out the bolt and vehicle speed sensor along with its seal. Apply a thin film of transmission oil onto a new O-ring seal with Synchro-mesh Transmission Fluid GM P/N 12345349 or an identical product. First put the O-ring on the vehicle speed sensor assembly then connect both parts together with the bolt and fasten the bolt to 22 Nm (16 ft. lbs.). Finish by fixing the electrical cable to the speed sensor before letting the vehicle down.

The first thing to do is raise and support your vehicle before working on the transfer case speed sensor. Take off the electrical connector from the speed sensor, take out the sensor plus the O-ring seal, and look at the seal for any wear, changing it if required. If you took off the O-ring seal, apply some lubrication to it and put it back on the speed sensor. Align the speed sensor with the transfer case and screw it on, be sure to tighten it to 17 N.m (13 lb ft). After that, join the electrical connector to the transfer case speed sensor and lower the car.

First, users need to elevate their vehicle following the directions until the procedures will only apply to 2wd models where the Vehicle Speed Sensor (VSS) sits on the Transfer Case when working on 4wd vehicles. Begin by disconnecting the output speed sensor electrical connector followed by removing the output speed sensor bolt for the output speed sensor bracket assembly from the case. Check the output speed sensor assembly for indications of damage. Apply automatic transmission fluid at the output speed sensor seal before installing both the output speed sensor and bracket assembly. Screw in the bolt and torque it to 11 nm (96 inch lbs.) before reconnecting the output speed sensor electrical connector then safely lowering the vehicle.

Start with vehicle raising and support before you can replace the VSS in a 4L60-E/4L65-E/4L70-E automatic transmission. Disconnect the VSS electrical connector followed by VSS bolt removal and VSS extraction and O-ring seal removal. First position the O-ring seal on top of the VSS . Afterwards apply a thin layer of transmission fluid to the O-ring seal before setting the VSS in its place. Tighten the VSS bolt to 11 Nm (97 inch lbs.) following VSS bolt installation, then attach the VSS electrical connector . Lower the vehicle after completing installation while also topping off the fluid when needed.

To replace the Vehicle Speed Sensor (VSS) on 4l60-e/4l65-e/4 l70-e transmission, first, lift and properly support the vehicle. Take the vss electrical connector off, pull off the vss bolt and the vss . Remove the o-ring seal prior to installing the new o-ring seal onto the vss and applying a very light coat of transmission fluid. Next, install the vss and make sure to comply with the fastener notice. Secure the vss with the bolt and tighten it to 11 n.m (97 lb in) and reconnect the vss electrical connector. Finally, you should lower the car and fill in the fluid as needed.

To replace the Wheel Speed Sensor start by raising the vehicle and removing the tire then continue with brake caliper hub and rotor. First you must free the Wheel Speed Sensor mounting clips from both the Control Arm and frame rail before disconnecting its electrical connector and unscrewing the sensor from its mounting hole. Use gentle force and direct grip to draw the sensor from its bore space effectively. Leave the stainless steel shim part permanently attached to the bearing assembly because replacing the whole bearing assembly is required to work correctly. Keep the sealing oil in the bearing from getting mixed during sensor removal. Install a new sensor into the hub and bearing with its fresh o-ring that needs light bearing grease application. Keep the bore free of moisture during installation. Turn the sensor mounting screw to 18 nm (13 ft. Lbs.) tension and then connect the Wheel Speed Sensor electrical connector. Secure the sensor holder onto the frame rail and Control Arm. Reassemble the hub rotor tire wheel assembly and brake caliper.

Make sure you raise the vehicle before starting to replace the Transfer Case Front Output Shaft Speed Sensor on the TrailBlazer EXT, Envoy XL, or Envoy XUV. Take off the electrical connector from the transfer case front speed sensor before you take out the sensor. During installation, put on the new speed sensor and make sure it is tightened to 17 N.m (13 lb ft). Plug the electrical connector into the transfer case front speed sensor and bring the vehicle back down.

You need to raise and support the vehicle before replacing the entire Wheel Hub assembly that contains the rear Wheel Speed Sensor ring. Take out all wheel components starting with the tire and wheel then the brake rotor according to official guidelines for both parts. First take off the axle hub that goes to the back. Steps for installation are to put in the rear axle hub first, then the rear brake rotor before fitting back the tire and wheel assembly. Use all required tools and equipment from the ranges listed as follows: (Lifting System with Stand and Floorplate), (Wheel and Tire Removal Tools), and (Brake Rotor Tools for Rear Models JD9, JH6, and JH7) during this process.

Vehicle support and raising become essential before beginning Input Shaft Speed Sensor replacement. Begin the replacement process by disconnecting the input speed sensor's electrical connector followed by removing the input speed sensor bolt and the sensor itself. Check the input speed sensor for signs of breakdown indicators. Before you install the input speed sensor apply automatic transmission fluid to the seal. Before securing the installation, verify that the bolt connecting the input speed sensor maintains a torque setting of 11 Nm (96 inch lbs.). When complete connect the input speed sensor electrical connector before lowering the vehicle.

Before replacing the Vehicle Speed Sensor (VSS) users must raise the vehicle to a proper height. Remove the harness connector and the bolt next. Prepare the drain pan under the vehicle base and use the J 38417 Speed Sensor Remover (J 38417) to disconnect the vehicle speed sensor before removing the O-ring seal. The J 38417 Speed Sensor Remover (J 38417) should be used to install the new speed sensor along with the O-ring seal while applying a thin transmission fluid film on the seal during assembly. Install the bolt and tighten it to 11 Nm (97 inch lbs.)Reconnect the harness connector after tightening the bolt to 11 Nm (97 inch lbs.). After completing installation of the new speed sensor and tightening the bolt to 11 Nm (97 inch lbs.) proceed to lower the vehicle and perform any required fluid refills.

The vehicle must be raised then securely supported before starting to replace the Transfer Case Speed Sensor. Start by disconnecting the speed sensor electricity connector and take out the speed sensor and old O-ring which you should discard. The proper installation of the new speed sensor involves the use of a fresh O-ring and requires sensor torque to 17 N.m (13 lb ft). The vehicle support process should finish by reconnecting the speed sensor electrical connector before lowering the vehicle.

Raising and supporting the vehicle enables easy access to change the wss on 4 wheel drive vehicles. You need to detach the brake rotor from 1500 series. Unfasten the wss cable mounting clip from all attachment points and detach the electrical connector followed by unscrewing and removing the wss mounting bolt. Take out the wss in a straight line from its bore using your hands only instead of tools to keep the sensor body intact. To install put the wss bore plug over it until the installation starts. Prepare the wss mounting area on the hub by brushing away debris and apply a thin layer of wheel bearing lubricant gm p/n 01051344 to all surfaces. Place the wss properly into the hub/bearing assembly while maintaining flat contact with the hub surface before applying the wss mounting bolt and tightly tightening it to 18 nm (13 ft. Lbs.). Place the wss cable mounting brackets back onto the common part, upper Control Arm, and body connection point then join the wss electrical connector. Reinstall the brake rotor into its proper position as depicted in the 1500 series documentation. Reassemble the wheel and tire afterward you run the diagnostic system check for your vehicle.

The first step for replacing the vss is to lift the vehicle and put a drain pan in place. Take off the electrical connector from the sensor and take out the bolt . Pull and twist the sensor out of the case and get rid of the o-ring seal . Prior to reinstalling the Vehicle Speed Sensor, use a new o-ring seal and put clean transmission fluid on it. Once the bolt is in, hand-turn it until you reach 11 nm (97 inch lbs.). Join the wiring harness connector to the Vehicle Speed Sensor, clear away the drain pan, lower the vehicle, and bring the transmission fluid to the correct dexron-iii level.

To replace the Input Shaft Speed Sensor, first, lift and adequately stable lift the vehicle. Disconnect the input speed sensor electrical connector and remove the input speed sensor bolt and the input speed sensor. Check the input speed sensor to see if there is any sign of damage. But before installing the input speed sensor, make sure to lubricate the input speed sensor seal with automatic transmission fluid. Put on the input speed sensor bolt and tighten it to 11 Nm (96 inch lbs), and join the input speed sensor electrical connector and put down the vehicle.

The process of replacing a ZF S6-650 VSS (Vehicle Speed Sensor) begins with raising the vehicle while providing support. The procedure begins by disconnecting the VSS electrical connector for engines with 6.6L capacity and engines with 8.1L capacity need their VSS electrical connector removed first. Extract the VSS bolt in combination with the sensor as well as the seal. Apply transmission fluid to a new O-ring seal before inserting the VSS and its bolt. Torque the bolt to a setting of 10 Nm (89 inch lbs.). Connect the VSS electrical connector for the 8.1L engine while connecting the VSS electrical connector for the 6.6L engine. Check the transmission fluid level then add fluid if needed while the vehicle is at its lowest position.

Raise and support your car first, before you start replacing the Vehicle Speed Sensor (VSS) on the 4L60-E/4L65-E transmission. Take off the VSS bolt and the VSS once you have disconnected the VSS electrical connector . Pull out the O-ring seal first, then put the new O-ring seal onto the VSS and brush some transmission fluid over it. Now, attach the VSS, align it, and fasten it using the VSS bolt, making sure you tighten to 11 Nm (97 inch lbs.). After you reconnect the electrical connector, lower the vehicle and top off the fluid if it's needed.

To repair the Wheel Speed Sensor on a vehicle with two-wheel drive you must first lift the vehicle and secure it afterward take off the tire then wheel and lastly the brake rotor. Unthread the wss mounting bolt and take out the sensor only by pushing it directly through the bore to stay away from harming the sensor shell. Separate the wss from its assembly and take off the wss mounting clips from the knuckle, upper Control Arm and frame attachment point to disconnect the wss electrical connector. Feed the wss into the hub/bearing assembly area and mount it with the bolt. Torque the bolt to 18 n.m (13 lb ft) as installation progress. Place the wss mounting clips back on the knuckle, upper Control Arm and frame while connecting the wss electrical cable to its end. Complete the installation by putting back the brake rotor and wheel assembly then execute the diagnostic system check - abs.

Refill the fluid as required.

Ensure to install the new transfer case right rear speed sensor and tighten it to 17 N.m (13 lb ft).

Disconnect the electrical connector from the transfer case front speed sensor and remove the sensor itself.

Position the new transfer case front speed sensor and tighten it to 17 Nm (13 ft. lbs.), ensuring to observe the Fastener Notice in Service Precautions.

Tighten the bolt to 11 Nm (97 inch lbs.).

Raise the vehicle.

Remove the sensor bolt and take out the output speed sensor.

Lubricate the output speed sensor seal with automatic transmission fluid.

First, remove the transfer case shield if it is equipped.

Disconnect the right rear speed sensor electrical connector and remove the right rear speed sensor.

Plug the bore to prevent debris entry.

Use a NEW O-ring.

Do not drive the vehicle until it is diagnosed and repaired; inspect the wheel speed sensor electrical connector for damage and proper installation.

Use the J 38417 Speed Sensor Remover (J 38417) to remove the vehicle speed sensor and the O-ring seal.

Install the harness connector, lower the vehicle, and refill the fluid as required.

Remove the VSS bolt and the VSS.

Remove the transfer case left rear speed sensor.

Disconnect the front speed sensor electrical connector and remove the front speed sensor.

Disconnect the electrical connector from the vehicle speed sensor and remove the vehicle speed sensor along with the O-ring seal.

First, remove the transfer case shield if it is equipped.

Raise the vehicle.

Reconnect the electrical connector and lower the vehicle.

Raise the vehicle.

Remove the vehicle speed sensor and the O-ring seal.

Raise and support the vehicle.

Remove and discard the O-ring seal.

Align the harness with the reference mark on the steering knuckle, then install the brake rotor and wheel hub/bearing assembly to the steering knuckle.

Reconnect the VSS electrical connector and lower the vehicle.

First, raise and support the vehicle.

Reconnect the right rear speed sensor electrical connector before lowering the vehicle.

Lightly lubricate the O-ring seal and position it on the speed sensor if it was removed.

Align the wheel speed sensor harness with the reference mark on the wheel hub/bearing assembly.

Mark the holes for the speed sensor electrical connector to ensure proper reinstallation.

Place the O-ring seal on the vehicle speed sensor and coat it with a thin film of transmission fluid.

Reconnect the VSS electrical connector and lower the vehicle.

Reconnect the VSS electrical connector and lower the vehicle.

Place the O-ring seal on the vehicle speed sensor and coat it with a thin film of transmission fluid.

Remove the sensor itself after disconnecting the electrical connector.

Reinstall the front propeller shaft.

Disconnect the right rear speed sensor electrical connector and remove the right rear speed sensor.

Remove the wheel speed sensor bolt and then take out the wheel speed sensor from the rear axle.

First, raise and suitably support the vehicle.

Disconnect the electrical connector from the sensor and remove the bolt.

Install the VSS and O-ring seal, tightening the VSS to 16 N.m (12 lb ft).

Connect the right rear speed sensor electrical connector before lowering the vehicle.

Disconnect the front speed sensor electrical connector and then remove the front speed sensor.

First, raise the vehicle and remove the tire and wheel assembly.

Connect the wheel speed sensor electrical connector and install the mounting clips back onto the frame rail and control arm.

Raise and suitably support the vehicle.

Install the VSS and O-ring seal, ensuring to tighten the VSS to 16 Nm (12 ft. lbs.).

Disconnect the output speed sensor electrical connector.

Disconnect the speed sensor electrical connector and then remove the speed sensor.

Reconnect the speed sensor electrical connector and lower the vehicle.

Next, take off the brake rotor as shown on the 1500 Series.

Install a new O-ring on the speed sensor and lubricate it with clean transmission fluid.

Start the engine and allow it to idle, checking that the ABS indicator or traction assist indicator remains illuminated.

Coat the NEW O-ring seal with a thin film of transmission fluid, using GM P/N 12346190 (Canadian P/N 10953477) or an equivalent.

Disconnect the input speed sensor electrical connector.

Raise and support the vehicle.

Reattach the WSS cable mounting clips to the knuckle, upper control arm, and frame attachment point.

Ensure to use a NEW O-ring seal and tighten the sensor to 17 Nm (13 ft. lbs.).

Connect the front speed sensor electrical connector.

Install the bolts and tighten them to 11 Nm (96 inch lbs.).

Ensure to install the transfer case right rear speed sensor back onto the transfer case and tighten it to 15 Nm (11 ft. lbs.).

Remove the bolt securing the speed sensor and carefully take out the speed sensor.

Reattach the WSS cable mounting clips to the knuckle, upper control arm, and frame attachment point, then connect the WSS cable electrical connector.

Carefully pull the WSS straight out of the bore without using any prying tools to avoid breaking the sensor body.

Insert the WSS into the hub/bearing assembly, ensuring it is seated flat.

Detach the WSS cable mounting clips from the knuckle, upper control arm, and frame attachment point, followed by disconnecting the WSS cable electrical connector.

Disconnect the electrical connector from the transfer case left rear speed sensor and remove the sensor itself.

Lubricate the input speed sensor seal with automatic transmission fluid.

Lubricate it with transmission fluid.

Remove the output speed sensor bolt and the output speed sensor itself.

Inspect the input speed sensor for any evidence of damage.

Reconnect the electrical connector to the transfer case front speed sensor and lower the vehicle.

Connect the wiring harness electrical connector to the vehicle speed sensor and refill the fluid as required.

Take out the vehicle speed sensor along with the O-ring seal.

Reattach the WSS cable mounting clips to the knuckle, upper control arm, and frame attachment point, then connect the WSS cable electrical connector.

Remove the wheel speed sensor wiring harness retainers and disconnect the wheel speed sensor electrical connector.

Tighten it to 17 Nm (12 ft. lbs.).

Raise and suitably support the vehicle.

Disconnect the wiring harness electrical connector from the vehicle speed sensor and remove the harness connector.

Take out the vehicle speed sensor along with the O-ring seal.

Do not attempt to remove the stainless steel shim from the bearing assembly, as it is permanently attached.

Install the axle shaft bearing with the J-23690 - Bearing Installer and the J-8092 - Driver Handle, driving it in until the tool bottoms against the tube.

Reconnect the electrical connector and lower the vehicle.

Ensure the wheel speed sensor harness is aligned with the reference mark on the steering knuckle.

Install the VSS and O-ring seal, ensuring to tighten the VSS to 16 Nm (12 ft. lbs.).

First, remove the transfer case shield if it is equipped.

Ensure to follow the fastener notice in service precautions.

The tire and wheel assembly, followed by the brake rotor.

Disconnect the VSS electrical connector and remove the VSS along with the O-ring seal.

Ensure to install the new transfer case left rear speed sensor into the transfer case and tighten it to 17 N.m (13 lb ft).

Reconnect the electrical connector and lower the vehicle.

Install the wheel speed sensor harness bracket bolt and tighten it to 9 Nm (80 lb in), followed by the wheel speed sensor harness grommet to the mounting bracket and the harness clips to the suspension upper control arm.

Inspect the O-ring seal for wear and replace it if necessary.

Remove the wheel speed sensor from the hub and bearing assembly.

Disconnect the wiring harness electrical connector from the vehicle speed sensor and remove the harness connector.

First, raise the vehicle.

Follow the fastener notice in service precautions.

Begin by removing the harness connector.

Disconnect the VSS electrical connector.

Lightly lubricate the O-ring seal and position it on the speed sensor if it was removed.

First, raise the vehicle and disconnect the electrical connector from the transfer case left rear speed sensor.

The wheel speed sensor retaining bolt and the wheel speed sensor itself.

Do not lubricate the bore.

Disconnect the electrical connector from the transfer case front speed sensor and remove the sensor itself.

Install the new speed sensor and O-ring seal using the J 38417 Speed Sensor Remover, ensuring to coat the seal with a thin film of transmission fluid.

Remove the brake caliper, then the hub and rotor.

Raise and support the vehicle securely.

Install the speed sensor bolt and tighten it to 12 N.m (108 lb in).

Remove the vehicle speed sensor and the O-ring seal.

Reattach the WSS cable mounting clips to the knuckle, upper control arm, and frame attachment point, then connect the WSS cable electrical connector.

First, remove the harness connector and the bolt.

Reconnect the electrical connector to the speed sensor.

Reconnect the electrical connector, reinstall the front propeller shaft, and the transfer case shield before lowering the vehicle.

Disconnect the electrical connector from the transfer case right rear speed sensor and then remove the sensor.

Place the O-ring seal onto the vehicle speed sensor and coat it with a thin film of transmission fluid.

Ensure it is tightened to 17 Nm (13 lb ft) with the O-ring seal.

Disconnect the VSS electrical connector.

Install the bolt and tighten it to 11 Nm (97 inch lbs.).

Raise and support the vehicle, then remove the tire and wheel.

Raise and support the vehicle.

Raise and suitably support the vehicle.

Place the O-ring seal onto the VSS and coat it with a thin film of transmission fluid.

Finally, reconnect the electrical connector to the vehicle speed sensor and lower the vehicle.

Align the hole in the retaining bracket with the bolt hole in the speed sensor boss.

Reattach the WSS cable mounting clips, connect the WSS cable electrical connector, reinstall the brake rotor, and put the tire and wheel back on.

Disconnect the wheel speed sensor electrical connector and release the electrical connector and sensor harness clips from the inboard frame rail.

Disconnect the electrical connector.

Begin by installing the front speed sensor and tightening it to 15 Nm (11 ft. lbs.).

Disconnect the VSS electrical connector.

Raise and support the vehicle.

Disconnect the electrical connector from the transfer case right rear speed sensor and remove the sensor itself.

Install the bolt and tighten it to 11 Nm (97 inch lbs.).

Carefully pull the sensor straight out of the bore without using any prying tools to avoid breaking the sensor body.

Coat a NEW O-ring seal with a thin film of Synchro-mesh transmission fluid GM P/N 12345349 (Canadian P/N 10953465) or equivalent.

Reconnect the output speed sensor electrical connector and lower the vehicle.

The transfer case speed sensor is located at the left rear.

Reconnect the left rear speed sensor electrical connector before lowering the vehicle.
