How to replace the left engine mount bracket on 2004 Cadillac SRX?

You should begin the left Engine Mount bracket replacement by supporting the raised vehicle then installing a screw jack which will rest on an Oil Pan block. First use a screw jack to lift the engine upward while also unbolt the lower mount retaining nut then relieve all mount weight. The next step is to remove the upper Engine Mount retaining nut before extracting the Engine Mount away from the vehicle by making sure you do not deform or warp the Engine Mount heat shield. You should untighten the left Engine Mount bracket retaining bolts before removing the left Engine Mount bracket. The installation starts with mounting the left engine bracket and afterward tightening the left bracket bolts registration to 60 nm (44 ft. Lbs.). After mounting the engine to the vehicle position the upper retaining nut properly while tightening it to 80 nm (59 ft. Lbs.). Lower the engine using the screw jack until the weight supports the mount before you install the Engine Mount lower retaining nut and torques it to 80 nm (59 ft. Lbs.). Finally, cut the jack screws and lower the vehicle while removing the jack and wood support at the Oil Pan.

OEM 2004 Cadillac SRX Engine Mount Bracket

Engine Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Engine Mount Brackets found

View related parts

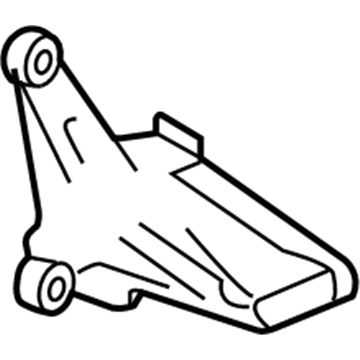

2004 Cadillac SRX Mount Bracket, Passenger Side
Part Number: 25756322
$8.30 MSRP: $13.00
You Save: $4.70 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Passenger Side
- Replaced by: 10360744
- Item Weight: 1.90 Pounds
- Item Dimensions: 7.7 x 4.9 x 4.1 inches
- Condition: New
- SKU: 25756322
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts

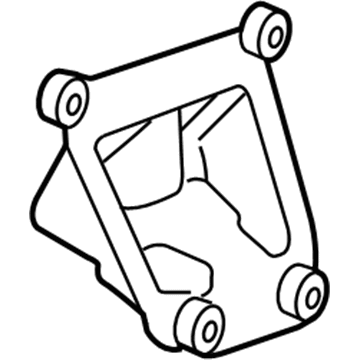

2004 Cadillac SRX Mount Bracket, Driver Side
Part Number: 25762620
$7.84 MSRP: $12.28
You Save: $4.44 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Driver Side
- Replaced by: 10360745
- Item Weight: 2.30 Pounds
- Item Dimensions: 9.3 x 8.5 x 6.3 inches
- Condition: New
- SKU: 25762620
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Cadillac SRX Submodels:
- Base | 8 Cyl 4.6 L GAS
View related parts

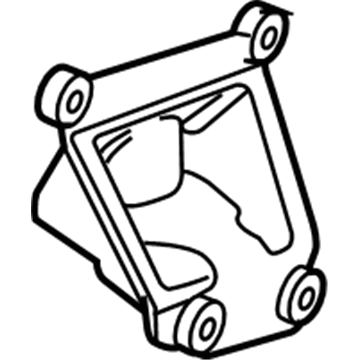

2004 Cadillac SRX Mount Bracket, Passenger Side
Part Number: 25762621
$7.81 MSRP: $12.23
You Save: $4.42 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Passenger Side
- Replaced by: 10360746
- Item Weight: 2.30 Pounds
- Item Dimensions: 9.4 x 8.6 x 6.8 inches
- Condition: New
- SKU: 25762621
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Cadillac SRX Submodels:
- Base | 8 Cyl 4.6 L GAS
View related parts

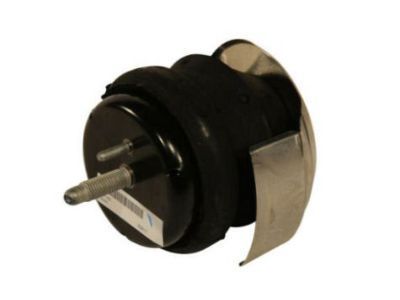

2004 Cadillac SRX Motor Mount, Passenger Side
Part Number: 25971089
$26.38 MSRP: $41.32
You Save: $14.94 (37%)
Product Specifications
- Other Name: Mount; Engine Mount Bracket; Front Mount; Mount, Engine Mount Dampening
- Position: Passenger Side
- Replaces: 10360738
- Item Weight: 4.10 Pounds
- Item Dimensions: 8.2 x 5.2 x 5.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25971089
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2004 Cadillac SRX Mount Bracket, Passenger Side
Part Number: 10360747
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Replaces: 25716470
- Item Weight: 2.20 Pounds
- Item Dimensions: 6.1 x 5.6 x 4.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10360747
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Cadillac SRX Submodels:
- Base | 8 Cyl 4.6 L GAS
View related parts
2004 Cadillac SRX Mount Bracket, Passenger Side
Part Number: 10360742
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Replaces: 25756320
- Item Weight: 1.90 Pounds
- Item Dimensions: 10.1 x 8.0 x 4.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10360742
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2004 Cadillac SRX Mount Bracket, Driver Side
Part Number: 10360743
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Replaces: 25756321
- Item Weight: 1.90 Pounds
- Item Dimensions: 7.6 x 5.2 x 4.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10360743
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2004 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS

2004 Cadillac SRX Engine Mount Bracket

With a comprehensive array of OEM 2004 Cadillac SRX Engine Mount Bracket, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2004 Cadillac SRX Engine Mount Bracket are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2004 Cadillac SRX Parts Questions & Experts Answers

Q: How to replace the left engine mount bracket on 2004 Cadillac SRX?
A: You should begin the left Engine Mount bracket replacement by supporting the raised vehicle then installing a screw jack which will rest on an Oil Pan block. First use a screw jack to lift the engine upward while also unbolt the lower mount retaining nut then relieve all mount weight. The next step is to remove the upper Engine Mount retaining nut before extracting the Engine Mount away from the vehicle by making sure you do not deform or warp the Engine Mount heat shield. You should untighten the left Engine Mount bracket retaining bolts before removing the left Engine Mount bracket. The installation starts with mounting the left engine bracket and afterward tightening the left bracket bolts registration to 60 nm (44 ft. Lbs.). After mounting the engine to the vehicle position the upper retaining nut properly while tightening it to 80 nm (59 ft. Lbs.). Lower the engine using the screw jack until the weight supports the mount before you install the Engine Mount lower retaining nut and torques it to 80 nm (59 ft. Lbs.). Finally, cut the jack screws and lower the vehicle while removing the jack and wood support at the Oil Pan.
