Make sure this part fits

GM 25762620
Mount Bracket, Driver Side

2004-2010 GM

Customer Questions & Expert Answers (36)
GM 25762620 Mount Bracket, Driver Side
  • Part Description
    Bracket, Engine Mounting
  • Position
    Driver Side
  • Replaced By
    10360745
  • Manufacturer
    General Motors
Make sure this part fits
$7.84 MSRP: $12.28
You Save: $4.44 (37%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

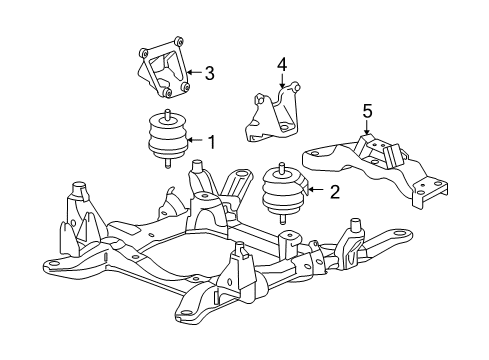

  • 25762620 Mount Bracket, Driver Side is Ref No. 4 in the diagram below

    2005 Cadillac STS Mount Bracket, Driver Side Diagram for 25762620
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 25762620

  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number25762620
    Part DescriptionBracket, Engine Mounting
    Item Dimensions9.3 x 8.5 x 6.3 inches
    Item Weight2.30 Pounds
    PositionDriver Side
    ConditionNew
    ManufacturerGeneral Motors
    SKU25762620
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2009 Cadillac SRXBase8 Cyl 4.6 L GAS
    2005-2010 Cadillac STSBase, Platinum8 Cyl 4.6 L GAS

  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 25762620 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 25762620 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the torque specification for the left side transmission mount assembly bolt for the 2009 Cadillac SRX? Posted by Customer
    A:
    110 Nm (81 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    How do you remove the left engine mount bracket for the 2004 Cadillac SRX? Posted by Customer
    A:
    Remove the left engine mount bracket retaining bolts and take off the left engine mount bracket.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    How do you install the new engine mount for the 2004 Cadillac SRX? Posted by Customer
    A:
    Position the engine mount back into place and install the engine mount retaining nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What should be removed after raising for the 2007 Cadillac SRX? Posted by Customer
    A:
    Remove the right engine mount bracket.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the next step after removing the engine mount for the 2008 Cadillac SRX? Posted by Customer
    A:
    Remove the left engine mount bracket retaining bolts and the left engine mount bracket.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What is the next step after removing the starter for the 2008 Cadillac SRX? Posted by Customer
    A:
    Take out the right engine mount bracket mounting bolts to remove the bracket from the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    How should the transmission be supported during the replacement for the 2009 Cadillac SRX? Posted by Customer
    A:
    Using a suitable jack and a block of wood.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What should be installed under the oil pan for support for the 2006 Cadillac SRX? Posted by Customer
    A:
    A screw jack with a block of wood.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the final step in the process for the 2004 Cadillac SRX? Posted by Customer
    A:
    Remove the screw jack and block of wood from under the oil pan and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the final step in the process for the 2009 Cadillac SRX? Posted by Customer
    A:
    Remove the screw jack and block of wood from under the oil pan and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What should be done if there is movement between the metal plate of the mount and its attaching points for the 2004 Cadillac SRX? Posted by Customer
    A:
    Lower the transmission/transaxle and tighten the bolts or nuts securing the mount to the frame or mount bracket.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What should be done after reattaching the vent hose for the 2007 Cadillac SRX? Posted by Customer
    A:
    Remove the transmission jack, reinstall the exhaust system, and finally lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the torque specification for the left and right side bolts for the 2008 Cadillac SRX? Posted by Customer
    A:
    110 N.m (81 lb ft) for both.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the torque specification for the upper engine mount retaining nut for the 2009 Cadillac SRX? Posted by Customer
    A:
    80 Nm (59 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What should be removed after raising for the 2007 Cadillac STS? Posted by Customer
    A:
    Remove the exhaust system.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the torque specification for tightening the engine mount bracket mounting bolts for the 2005 Cadillac STS? Posted by Customer
    A:
    60 Nm (44 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What is the next step after removing the right engine mount bracket for the 2007 Cadillac STS? Posted by Customer
    A:
    Remove the engine mount retaining nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the next step after securing the engine mount for the 2005 Cadillac SRX? Posted by Customer
    A:
    Lower the engine using the screw jack until it rests on the mount, then install the engine mount lower retaining nut, tightening it to 80 Nm (59 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What is the final step after reconnecting the suction hose for the 2008 Cadillac STS? Posted by Customer
    A:
    Lower the vehicle, reinstall the tower brace, and recharge the A/C system.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What should be removed after raising the engine for the 2005 Cadillac SRX? Posted by Customer
    A:
    The upper engine mount retaining nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What should be done after tightening the bolts for the 2005 Cadillac SRX? Posted by Customer
    A:
    Remove the transmission support, reinstall the exhaust system, and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the next step after removing the lower engine mount retaining nut for the 2008 Cadillac STS? Posted by Customer
    A:
    Take out the left engine mount bracket retaining bolts and the left engine mount bracket itself.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What is the torque specification for the transmission mount support to body mounting bolts for the 2008 Cadillac STS? Posted by Customer
    A:
    60 N.m (44 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What needs to be detached from the mount assembly for the 2010 Cadillac STS? Posted by Customer
    A:
    The transmission vent hose from the retainers.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What should be done after removing the screw jack for the 2007 Cadillac SRX? Posted by Customer
    A:
    Install the upper engine mount retaining nut and tighten it to 80 N.m (59 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What is the first step to replace the right engine mount bracket for the 2006 Cadillac SRX? Posted by Customer
    A:
    Raise and support the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What should be reattached after the mounting bolts are tightened for the 2006 Cadillac STS? Posted by Customer
    A:
    Reattach the transmission vent hose to the retainers on the mount assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    How do you install the new engine mount for the 2006 Cadillac STS? Posted by Customer
    A:
    Position the engine mount back into place and install the lower retaining nuts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the next step after removing the mounting bolts for the 2005 Cadillac STS? Posted by Customer
    A:
    Remove the engine mount bracket from the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What is the first step to inspect the transmission mount for the 2005 Cadillac STS? Posted by Customer
    A:
    Insert a block of wood that spans the width of the oil pan bottom between the oil pan and the jack support to prevent oil pan damage and possible engine failure.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Motor And Transmission Mount
    Q:
    What is the final step after completing the installation for the 2008 Cadillac SRX? Posted by Customer
    A:
    Remove the screw jack and block of wood from under the oil pan and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What should be removed after raising for the 2005 Cadillac STS? Posted by Customer
    A:
    Remove the right engine mount bracket.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the first step to replace the right engine mount bracket for the 2006 Cadillac STS? Posted by Customer
    A:
    Raise and support the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
    Q:
    What is the final step in the process for the 2008 Cadillac STS? Posted by Customer
    A:
    Remove the jack screw and block of wood from under the oil pan and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the final step in the process for the 2007 Cadillac STS? Posted by Customer
    A:
    Reinstall the right exhaust manifold and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Bracket
