How to replace the Motor and Transmission Mount on an all-wheel-drive on 2008 Cadillac SRX?

The first step to replace the transmission mount on an all-wheel-drive vehicle requires manual vehicle elevation followed by suspension support. Next, remove the exhaust system. First support the transmission with an appropriate jack plus wood block then break loose the transmission vent hose retainers from the mount assembly. Extract the assembly of transmission mount support with its bolts from body mountings and transfer case mountings to remove this unit from the vehicle. Placement of the transmission mount support assembly requires correct bolt tension order during installation. Begin by hand-tightening transmission mount support to transfer case mounting bolts before using torque wrenches to set the left side bolt to 110 N.m (81 lb ft) and the right side bolt to 110 N.m (81 lb ft). Fasten the transmission mount support assembly to its body mounting bolts while applying torque at 60 N.m (44 lb ft). Lower the vehicle before you put back the transmission vent hose onto its mount assembly retainers while discarding the transmission jack and placing the exhaust system back in place.

OEM 2008 Cadillac SRX Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Motor And Transmission Mounts found

View related parts
2008 Cadillac SRX Motor Mount, Driver Side
Part Number: 22887776
$119.44 MSRP: $205.13
You Save: $85.69 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Bracket; Front Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Driver Side
- Replaces: 10360737, 25971088, 25792213
- Item Weight: 4.50 Pounds
- Item Dimensions: 8.1 x 5.5 x 5.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 22887776
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2008 Cadillac SRX Motor Mount
Part Number: 22887775
$118.63 MSRP: $203.74
You Save: $85.11 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Bracket; Engine Mount; Front Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Replaces: 10360736, 25764959, 25764956, 19210426, 25741434, 25971085, 25737318, 25744159
- Item Weight: 4.50 Pounds
- Item Dimensions: 8.0 x 5.5 x 5.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 22887775
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac SRX Mount Bracket, Passenger Side
Part Number: 25756322
$8.30 MSRP: $13.00
You Save: $4.70 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Passenger Side
- Replaced by: 10360744
- Item Weight: 1.90 Pounds
- Item Dimensions: 7.7 x 4.9 x 4.1 inches
- Condition: New
- SKU: 25756322
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2008 Cadillac SRX Mount Bracket, Driver Side
Part Number: 25762620
$7.84 MSRP: $12.28
You Save: $4.44 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Driver Side
- Replaced by: 10360745
- Item Weight: 2.30 Pounds
- Item Dimensions: 9.3 x 8.5 x 6.3 inches
- Condition: New
- SKU: 25762620
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac SRX Motor Mount, Driver Side
Part Number: 25971093
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Bracket; Front Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Driver Side
- Replaces: 25764957, 25816503
- Item Weight: 5.20 Pounds
- Item Dimensions: 8.5 x 5.1 x 5.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25971093
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2008 Cadillac SRX Motor Mount, Driver Side
Part Number: 25971086
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Bracket; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Driver Side
- Replaces: 15880912
- Item Weight: 4.70 Pounds
- Item Dimensions: 8.2 x 5.5 x 5.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25971086
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac SRX Motor Mount, Passenger Side
Part Number: 25971087
Product Specifications
- Other Name: Mount; Engine Mount Bracket; Mount, Engine Mounting
- Position: Passenger Side
- Replaces: 10360741, 15212625, 15880913
- Item Weight: 4.10 Pounds
- Item Dimensions: 8.3 x 5.3 x 5.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25971087
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 8 Cyl 4.6 L GAS
View related parts

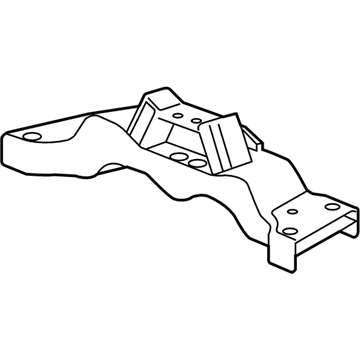

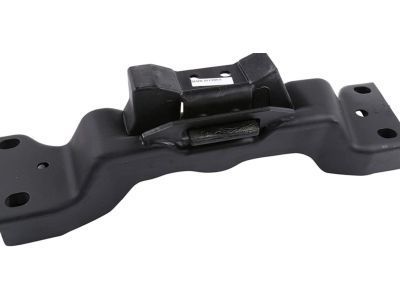

2008 Cadillac SRX Transmission Mount, Rear
Part Number: 25892303
$90.06 MSRP: $141.08
You Save: $51.02 (37%)
Product Specifications
- Other Name: Mount-Transmission Rear; Engine Mount Bracket; Transfer Case Mount; Motor Mount; Rear Mount; Mount, Transmission Mounting
- Position: Rear
- Replaces: 10376350, 15797828
- Item Weight: 7.60 Pounds
- Item Dimensions: 8.2 x 24.2 x 10.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25892303
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac SRX Motor Mount, Passenger Side
Part Number: 25971089
$26.38 MSRP: $41.32
You Save: $14.94 (37%)
Product Specifications
- Other Name: Mount; Engine Mount Bracket; Front Mount; Mount, Engine Mount Dampening
- Position: Passenger Side
- Replaces: 10360738
- Item Weight: 4.10 Pounds
- Item Dimensions: 8.2 x 5.2 x 5.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25971089
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2008 Cadillac SRX Transmission Mount, Rear
Part Number: 25892306
Product Specifications
- Other Name: Mount-Transmission Rear; Engine Mount Bracket; Transfer Case Mount; Motor Mount; Rear Mount; Mount, Transmission Mounting
- Position: Rear
- Replaces: 15797829, 15143640
- Item Weight: 7.50 Pounds
- Item Dimensions: 9.3 x 8.2 x 21.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25892306
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac SRX Mount Bracket, Passenger Side
Part Number: 10360747
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Replaces: 25716470
- Item Weight: 2.20 Pounds
- Item Dimensions: 6.1 x 5.6 x 4.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10360747
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac SRX Mount Bracket, Passenger Side
Part Number: 10360742
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Replaces: 25756320
- Item Weight: 1.90 Pounds
- Item Dimensions: 10.1 x 8.0 x 4.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10360742
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2008 Cadillac SRX Mount Bracket, Driver Side
Part Number: 10360743
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Replaces: 25756321
- Item Weight: 1.90 Pounds
- Item Dimensions: 7.6 x 5.2 x 4.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10360743
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac SRX Submodels:
- Base | 6 Cyl 3.6 L GAS

2008 Cadillac SRX Motor And Transmission Mount

With a comprehensive array of OEM 2008 Cadillac SRX Motor And Transmission Mount, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2008 Cadillac SRX Motor And Transmission Mount are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2008 Cadillac SRX Parts Questions & Experts Answers

Q: How to replace the Motor and Transmission Mount on an all-wheel-drive on 2008 Cadillac SRX?
A: The first step to replace the transmission mount on an all-wheel-drive vehicle requires manual vehicle elevation followed by suspension support. Next, remove the exhaust system. First support the transmission with an appropriate jack plus wood block then break loose the transmission vent hose retainers from the mount assembly. Extract the assembly of transmission mount support with its bolts from body mountings and transfer case mountings to remove this unit from the vehicle. Placement of the transmission mount support assembly requires correct bolt tension order during installation. Begin by hand-tightening transmission mount support to transfer case mounting bolts before using torque wrenches to set the left side bolt to 110 N.m (81 lb ft) and the right side bolt to 110 N.m (81 lb ft). Fasten the transmission mount support assembly to its body mounting bolts while applying torque at 60 N.m (44 lb ft). Lower the vehicle before you put back the transmission vent hose onto its mount assembly retainers while discarding the transmission jack and placing the exhaust system back in place.
