How to replace the rear inner CV boot on Cadillac CTS?

To remove the rear wheel drive shaft inner joint boot, first of all, unbolt the rear wheel drive shaft from the vehicle and secure it in a soft jaw vise so as not to cut through the inboard boot to inboard boot to prevent damaging the sealing surface. Eliminate the boot clamps and and dismount boot from CV Joint and wheel drive axle. Use hammer and punch to remove the cap from the CV Joint and in case there is contamination in the inner parts of the CV Joint then replace the rear wheel drive shaft assembly since the inner parts are not serviceable. Clean off the grease from the inner race, cage and balls, pop out the joint race retaining, use snap ring pliers to remove the retained ring, take out the inner CV Joint assembly by using a hammer with a brass drift. After checking the inner CV Joint install the inner boot and clamp together with the wheel drive shaft and apply half of the lubricant from the service pack to the boot. Make sure the boot is seated correctly in the grooved wheel drive shaft and then apply a block of wood or brass drift to fit the CV Joint into the wheel drive shaft. Replace the new retaining ring for the CV Joint using the snap ring pliers, lubricate all the inner parts of it, lubricate the ball bearings and cage of the CV Joint. Mount the outer boot clamp onto the boot , having it between the bolts and washers before crimping for bolt installation and removal. Check the boot for right shape and damage and reshape it when needed and replace if damaged. Clamp the bottom of the inner and outer boots together using the j 42572 - pliers until the gap (a) is at 1.0 (0.040 in). Wash the cap with an alcohol-based solvent and then draw a 3 mm (0.118 in) bead of sealant on the inside face of the CV Joint. For the cts, the j 22928-b - installer and a hammer should be used for the grease cap installation on the inner housing, while the mounting fastener holes are aligned. For the cts-v, employ j 38734 and a hammer to mount the new CV Joint cap. Rotate the inner joint 4 or 5 times distributing the lubricate on the inner joint then check the operation and take out the extra lubricant on the wide drive to the shafer and fit the wheel to the wheel drive shafer.

OEM Cadillac CTS CV Boot

Axle Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 CV Boots found

View related parts

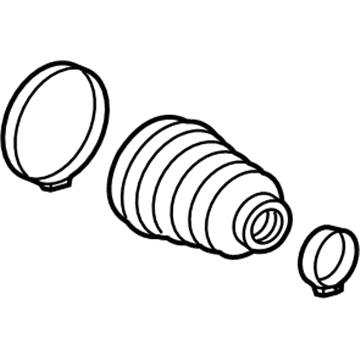

Cadillac CTS Outer CV Joint Boot Part Number: 88957226
$57.16 MSRP: $97.30
You Save: $40.14 (42%)
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Axle; CV Boot; Outer Boot; Boot Kit, Front Wheel Drive Axle Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2014 Cadillac CTS | Base, Luxury, Performance, Premium, V | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts

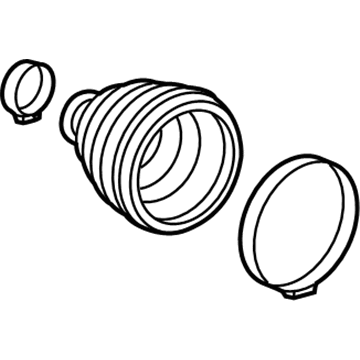

Cadillac CTS Inner CV Joint Boot Part Number: 88957225
$63.99 MSRP: $95.95
You Save: $31.96 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Boot; Inner Boot
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2014 Cadillac CTS | Base, Luxury, Performance, Premium, V | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts

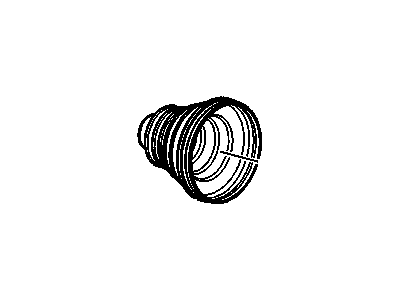

Cadillac CTS Outer Boot, Rear Part Number: 19206244
$189.81 MSRP: $301.35
You Save: $111.54 (38%)
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot; Inner Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2015 Cadillac CTS | V, Vsport, Vsport Premium | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Inner Boot, Rear Part Number: 19148848
Product Specifications
- Other Name: Boot Kit, Rear Inner Shaft; CV Boot
- Position: Rear Inner
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Cadillac CTS | V | 8 Cyl 6.0 L GAS
View related parts
Cadillac CTS Boot Kit Part Number: 89047823
Product Specifications
- Other Name: Inner Boot; CV Boot; Boot Kit, Rear Axle Universal Joint
- Position: Rear Inner
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Cadillac CTS | V | 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac CTS Outer Boot Part Number: 88957230
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot; Inner Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2014 Cadillac CTS | Base, Luxury, Performance, Premium, V, Vsport, Vsport Premium | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Boot Kit Part Number: 88952506
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot; Outer Boot
- Position: Rear Outer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Cadillac CTS | V | 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac CTS Boot Kit, Inner Part Number: 26091453
Product Specifications
- Other Name: Inner Boot; CV Boot; Boot Kit, Rear Axle Universal Joint
- Position: Inner
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Cadillac CTS | Base, Luxury, Luxury Sport | 6 Cyl 2.8 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS
View related parts
Cadillac CTS Boot Kit, Rear Part Number: 26091452
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot; Outer Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Cadillac CTS | Base, Luxury, Luxury Sport | 6 Cyl 2.8 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS
View related parts
Cadillac CTS Outer Boot, Rear Part Number: 25782407
$52.75 MSRP: $82.64
You Save: $29.89 (37%)
Product Specifications
- Other Name: Boot Kit-Rear Wheel Drive Shaft Tri-Pot Joint; CV Boot; Inner Boot; Boot Kit, Rear Axle Universal Joint
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2014 Cadillac CTS | Base, Luxury, Performance, Premium, V | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS

Cadillac CTS CV Boot

Want to cut long-term maintenance and repair costs? Choose OEM CV Boot. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac CTS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac CTS CV Boot includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The CV Boot in Cadillac CTS vehicles is very vital because it helps to protect the Constant Velocity (CV) Joints that is used in the transference of power from the transaxle to the wheels. This soft enfnet or open ended rubber or plastic part retains the correct amount of lubricant in the joint and is capable of absolute exclusion of any dirt in the joint for improved functionality. Certain types of CV joints employed in Cadillac CTS models are available such as Rzeppa kind at the outer end and tripod or double offset kind at the inner end. The outer joints are for those which experience larger movements in angle and the inboard joints for those that experience changes in shaft length due to suspension operation. It is usually recommended to check the CV Boot frequently because any kind of damage to the CV Boot such as crack or tearing could lead to bad state of the CV joint hence affecting the overall performance of the vehicle.

Cadillac CTS CV Boot Parts Questions & Experts Answers

Inner CV Joint Boot
88957225
Q: How to replace the rear inner CV boot on Cadillac CTS?
A:
To remove the rear wheel drive shaft inner joint boot, first of all, unbolt the rear wheel drive shaft from the vehicle and secure it in a soft jaw vise so as not to cut through the inboard boot to inboard boot to prevent damaging the sealing surface. Eliminate the boot clamps and and dismount boot from CV Joint and wheel drive axle. Use hammer and punch to remove the cap from the CV Joint and in case there is contamination in the inner parts of the CV Joint then replace the rear wheel drive shaft assembly since the inner parts are not serviceable. Clean off the grease from the inner race, cage and balls, pop out the joint race retaining, use snap ring pliers to remove the retained ring, take out the inner CV Joint assembly by using a hammer with a brass drift. After checking the inner CV Joint install the inner boot and clamp together with the wheel drive shaft and apply half of the lubricant from the service pack to the boot. Make sure the boot is seated correctly in the grooved wheel drive shaft and then apply a block of wood or brass drift to fit the CV Joint into the wheel drive shaft. Replace the new retaining ring for the CV Joint using the snap ring pliers, lubricate all the inner parts of it, lubricate the ball bearings and cage of the CV Joint. Mount the outer boot clamp onto the boot , having it between the bolts and washers before crimping for bolt installation and removal. Check the boot for right shape and damage and reshape it when needed and replace if damaged. Clamp the bottom of the inner and outer boots together using the j 42572 - pliers until the gap (a) is at 1.0 (0.040 in). Wash the cap with an alcohol-based solvent and then draw a 3 mm (0.118 in) bead of sealant on the inside face of the CV Joint. For the cts, the j 22928-b - installer and a hammer should be used for the grease cap installation on the inner housing, while the mounting fastener holes are aligned. For the cts-v, employ j 38734 and a hammer to mount the new CV Joint cap. Rotate the inner joint 4 or 5 times distributing the lubricate on the inner joint then check the operation and take out the extra lubricant on the wide drive to the shafer and fit the wheel to the wheel drive shafer.
