How to replace the A/C Accumulator in a refrigerant system on Cadillac DeVille?

System recovery of refrigerant should be the first step before accumulator replacement. First remove the positive Battery Cable clamp from its position at the top of the accumulator cover before proceeding to detach the a/c line from its snap clamp on the accumulator cover. The first step involves removing the accumulator cover by unsnapping it from the accumulator before taking it off. The installer must disconnect the accumulator retainer then remove the accumulator by detaching both the evaporator hose assembly and suction hose from it. The first step for accumulator installation requires owners to check and replace worn sealing washers without applying lubrication since they cannot be lubricated. Take the evaporator hose assembly to the accumulator before tightening its retaining nut to 20 n.m (15 lb ft). After mounting the suction hose to the accumulator you must lock the retaining nut with the same torque requirement. You must attach the accumulator cap to the accumulator so all three snap fasteners become engaged before installing the a/c line into the snap clamp. After refrigerant charging you should fasten the positive cable to the clamp which sits on top of the accumulator. Leak detection of repaired or reinstalled component fittings needs to be performed using a halogen leak detector (J 39400).

OEM Cadillac DeVille A/C Accumulator

Accumulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 A/C Accumulators found

View related parts

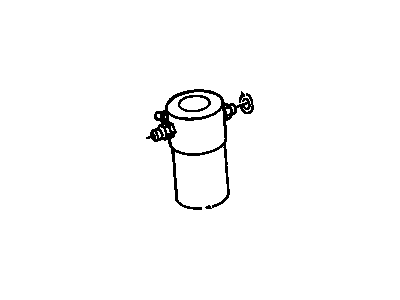

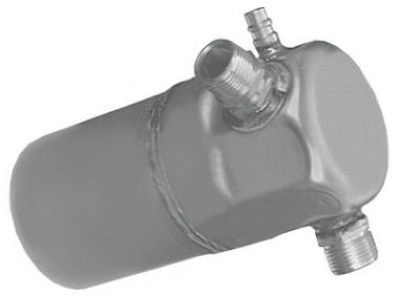

Cadillac DeVille Dehydrator Part Number: 2724807
$8.80 MSRP: $16.42
You Save: $7.62 (47%)
ADD TO CART
Product Specifications
- Other Name: Accumulator Dehydrator; A/C Receiver Drier; A/C Accumulator; Accumulator, A/C Refrigerant
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984 Cadillac DeVille | Base | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac DeVille Dehydrator Part Number: 2724914
$25.91 MSRP: $48.34
You Save: $22.43 (47%)
ADD TO CART
Product Specifications
- Other Name: A/C Accumulator; Drier Desiccant Element; A/C Receiver Drier; Drier; Accumulator, A/C Refrigerant
- Replaces: 2724693
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1999 Cadillac DeVille | Base, Concours, d'Elegance | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Dehydrator Part Number: 2724802
$24.37 MSRP: $45.48
You Save: $21.11 (47%)
ADD TO CART
Product Specifications
- Other Name: Accumulator Dehydrator; Drier Desiccant Element; A/C Receiver Drier; A/C Accumulator; Drier; Accumulator; Accumulator, A/C Refrigerant
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1988 Cadillac DeVille | Base, Cabriolet, d'Elegance, Touring | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS
View related parts
Cadillac DeVille Dehydrator Part Number: 1132771
$25.36 MSRP: $47.32
You Save: $21.96 (47%)
ADD TO CART
Product Specifications
- Other Name: Accumulator Assembly, A/C; Drier Desiccant Element; A/C Receiver Drier; A/C Accumulator; Drier; Accumulator; Accumulator, A/C Refrigerant
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Cadillac DeVille | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
View related parts
Cadillac DeVille Dehydrator Part Number: 2724865
Product Specifications
- Other Name: Accumulator-Dehydrator; A/C Receiver Drier; A/C Accumulator; Accumulator, A/C Refrigerant; Accumulator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1987 Cadillac DeVille | Base, Cabriolet, d'Elegance, Touring | 8 Cyl 4.1 L GAS
View related parts
Cadillac DeVille Dehydrator Part Number: 2724882
Product Specifications
- Other Name: Accumulator Assembly, A/C; Drier Desiccant Element; A/C Receiver Drier; A/C Accumulator; Drier; Accumulator, A/C Refrigerant; Accumulator
- Replaces: 2724799, 2724692
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 Cadillac DeVille | Base, Spring Edition, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Dehydrator Part Number: 2724842
Product Specifications
- Other Name: Accumulator; A/C Receiver Drier; A/C Accumulator; Accumulator, A/C Refrigerant
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1990 Cadillac DeVille | Base | 8 Cyl 4.5 L GAS

Cadillac DeVille A/C Accumulator

Want to cut long-term maintenance and repair costs? Choose OEM A/C Accumulator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DeVille parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DeVille A/C Accumulator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Not only that but also A/C Accumulator is an important component of Cadillac DeVille as it takes significant part in managing the cooling system performance. This rotating cylinder like component and is well placed ahead of the evaporator and behind the compressor where it functions to remove water, oil, and dirt. In filtering these contaminants, the A/C Accumulator plays an important role in protecting the compressor and at the same time the overall efficiency of the air conditioning system. Although the overview does not point out various sorts or types on A/C Accumulators used on some DeVille models, their purpose do not deviate. The main and more targeted concern for both the car's inside and outside environment is the emphasis on cleaning from moisture and debris thus leading to the prolonged justification and effectiveness of the A/C system from degrading or becoming faulty. In summing up, the A/C Accumulator is an important component if there is to be proper functioning of the climate control of Cadillac DeVille brand of cars.

Cadillac DeVille A/C Accumulator Parts and Q&A

Dehydrator
1132771
Q: How to replace the A/C Accumulator in a refrigerant system on Cadillac DeVille?
A:
System recovery of refrigerant should be the first step before accumulator replacement. First remove the positive Battery Cable clamp from its position at the top of the accumulator cover before proceeding to detach the a/c line from its snap clamp on the accumulator cover. The first step involves removing the accumulator cover by unsnapping it from the accumulator before taking it off. The installer must disconnect the accumulator retainer then remove the accumulator by detaching both the evaporator hose assembly and suction hose from it. The first step for accumulator installation requires owners to check and replace worn sealing washers without applying lubrication since they cannot be lubricated. Take the evaporator hose assembly to the accumulator before tightening its retaining nut to 20 n.m (15 lb ft). After mounting the suction hose to the accumulator you must lock the retaining nut with the same torque requirement. You must attach the accumulator cap to the accumulator so all three snap fasteners become engaged before installing the a/c line into the snap clamp. After refrigerant charging you should fasten the positive cable to the clamp which sits on top of the accumulator. Leak detection of repaired or reinstalled component fittings needs to be performed using a halogen leak detector (J 39400).
