How to replace the Hood Cable on GMC Canyon?

The cable replacement process starts with grille and Hood Latch removal before freeing the cable from its Hood Latch assembly home. Before installation label where mechanic's wire will pass through then add it to the outside cable end. Push the cable grommet through the cowl panel until it reaches the vehicle interior space after letting go of the retainers which hold the cable to the inner fender and radiator support. After removing the knee bolster hood release handle bolts you should detach the cable from the handle. Remove the mechanic's wire while it remains positioned for future cable installation and pull the cable through the cowl panel and out behind the sound insulation. Pull the cable out of the vehicle's structure. Before installation attach the mechanic's wire to the new cable end and use this guide to feed the cable beneath sound insulation before passing the exterior section through the cowl panel opening. Install the cable to the release handle while positioning the cable grommet to the cowl panel before putting back the release handle onto the knee bolster. Secure the bolts which hold the release handle in place to the knee bolster by tightening them to 1 n.m (9 lb in). Follow cable routing guidelines then secure the cable at inner fender retainers before connecting it to the Hood Latch assembly and reattaching the Hood Latch and finishing with grille installation.

How to replace the Hood Cable for the Primary Latch Release on GMC Envoy?

Start the hood primary latch cable replacement by removing the left front door sill plate and then the left closeout/insulator panel before moving on to the grille. Separate the Hood Latch and detach the Hood Cable from the Hood Latch assembly. Mark down the cable route while affixing mechanic's wire to the outer conclusion of the cable. Lift the inner fender retainers which hold the cable next to the headlamp housing panel and Radiator before pulling out the cable between them. Push the grommet casing through the bulkhead before removing the hood release handle attachment nut from its position on the left cowl trim panel to detach the cable from the release handle. Pull the cable through the cowl panel opening behind the sound insulation while detaching the mechanic's wire for easy installation guidance. The cable needs extraction from the automobile. Use the mechanic's wire to lead the new cable underneath sound insulation before passing through the cowl panel from its exterior side. Connect the cable to the handle but install the grommet onto the panel before attaching it to the cowl. Secure the release handle in its left side kick panel installation by using the nut which needs to be tightened at 7 nm (62 lb in). Follow the established cable path to the inner fender retainers where you should attach the cable before installing it to the Hood Latch assembly. Finish the installation by reattaching the Hood Latch followed by the grille and then the left closeout/insulator panel and left front door sill plate.

How to replace the Hood Cable on GMC Savana 2500?

Before starting the Hood Cable replacement procedure you must lift and support the hood. The installation requires removing the cable from both components situated on the radiator support retainer and the hood latch. Push both the grommet and cable down into the cab from the engine compartment opening. The body needs its left side hinge pillar trim panel detached to take out screws from the body that hold the cable handle before finally removing the handle. Remove the cable from the vehicle as the last step. To begin installation start by placing the cable back inside the vehicle and guide it from the cabin area through the engine compartment. Anchor the body with a cable handle after inserting the bulkhead grommet then fasten this assembly using screws. Place the left side hinge pillar trim panel back in position then join the cable to the retainer on the radiator support and to the hood latch before putting the hood into its closed position.

OEM GMC Hood Cable

Hood Release Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

37 Hood Cables found

View related parts

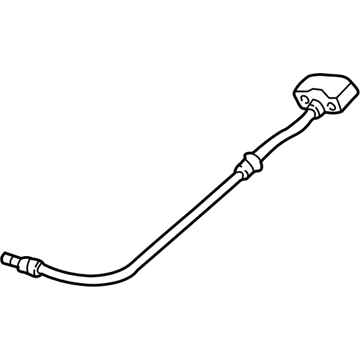

GMC Release Cable
Part Number: 84360166
$32.79 MSRP: $48.81
You Save: $16.02 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Hood Secondary Latch Release; Hood Release Cable; Cable, Hood Latch
- Replaces: 84221554
Fits the following GMC Models:
- Terrain | 2018-2024 | AT4, Denali, SL, SLE, SLT | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts

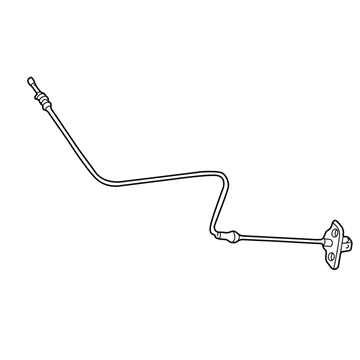

GMC Release Cable
Part Number: 15242999
$50.25 MSRP: $74.80
You Save: $24.55 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable; Gutter
- Replaces: 25677972
Fits the following GMC Models:
- Sierra 1500 | 2007-2013 | SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
- Sierra 2500 HD | 2007-2013 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2007-2013 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

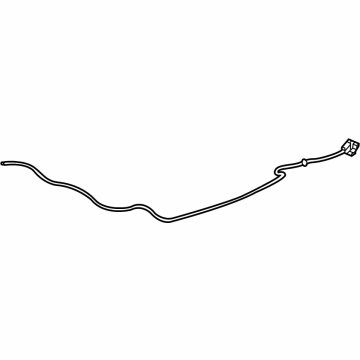

GMC Release Cable
Part Number: 15769412
$86.97 MSRP: $129.44
You Save: $42.47 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaces: 15728525, 15016468
Fits the following GMC Models:
- C1500 | 1995-1999 | Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1995-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1995-2000 | Sierra SL, Sierra SLE, Sierra SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1995-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1995-2000 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1995-1999 | Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1995-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K2500 | 1995-2000 | Sierra SL, Sierra SLE, Sierra SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1995-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1995-2000 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts

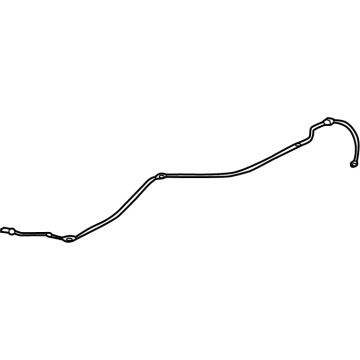

GMC Release Cable
Part Number: 86807595
$34.14 MSRP: $50.81
You Save: $16.67 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Hood Primary & Secondary Latch Release; Cable, Hood Latch
Fits the following GMC Models:
- Hummer EV Pickup | 2022-2023 | 3X, Edition 1 | BATTERY EV (EV/BEV)
View related parts

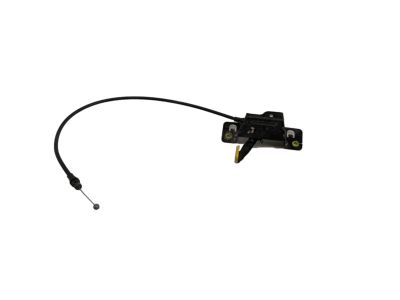

GMC Release Cable
Part Number: 23498697
$52.26 MSRP: $77.78
You Save: $25.52 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaced by: 84279469
Fits the following GMC Models:
- Sierra 1500 | 2014-2019 | AT4, Base, Denali, Elevation, SLE, SLT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2015-2019 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2015-2019 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

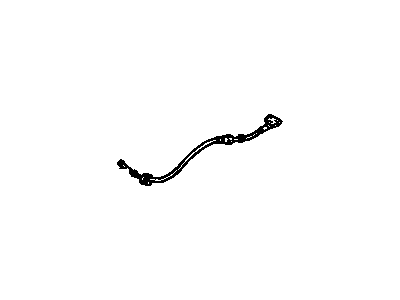

GMC Release Cable
Part Number: 84734957
$37.11 MSRP: $55.23
You Save: $18.12 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaced by: 85628284
Fits the following GMC Models:
- Sierra 2500 HD | 2020-2024 | AT4, AT4X, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2024 | AT4, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts
GMC Release Cable
Part Number: 23486864
$43.89 MSRP: $65.33
You Save: $21.44 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaced by: 84279473
Fits the following GMC Models:
- Canyon | 2015-2016 | Base, SL, SLE, SLT | 4 Cyl 2.5 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
View related parts
GMC Release Cable, Beige
Part Number: 84738643
$5.34 MSRP: $7.95
You Save: $2.61 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Hood Primary Latch Release *Whisper Beigg; Hood Release Cable; Cable, Hood Latch
Fits the following GMC Models:
- Yukon | 2021-2023 | AT4, Denali, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon XL | 2021-2023 | AT4, Denali, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Release Cable
Part Number: 84755336
$29.69 MSRP: $44.19
You Save: $14.50 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch
- Replaced by: 85602059
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Release Lever
Part Number: 87844557
$31.06 MSRP: $46.23
You Save: $15.17 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Hood Secondary Latch Release; Release Cable
- Replaced by: 87850146
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Release Cable
Part Number: 84729851
$37.11 MSRP: $55.23
You Save: $18.12 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaced by: 85628285
Fits the following GMC Models:
- Sierra 1500 | 2019-2023 | AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Release Cable
Part Number: 22759325
$49.48 MSRP: $73.65
You Save: $24.17 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaces: 25980928
Fits the following GMC Models:
- Savana 1500 | 2006-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 2006-2024 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
- Savana 3500 | 2006-2024 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
View More
View related parts
GMC Release Cable
Part Number: 20793772
Product Specifications
- Other Name: Handle Assembly-Hood Primary Latch Release Cable *188Cm; Hood Release Cable; Release Handle; Handle, Hood Latch
- Replaces: 15118906
Fits the following GMC Models:
- Acadia | 2007-2012 | Denali, SL, SLE, SLT | 6 Cyl 3.6 L GAS
View related parts
GMC Release Cable
Part Number: 15627455
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
Fits the following GMC Models:
- Jimmy | 1992-1994 | Base, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- S15 | 1984-1990 | Base, EL, Gypsy, High Sierra, Sierra Classic | 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- S15 Jimmy | 1984-1991 | Base, Gypsy, High Sierra, Sierra Classic, SLE, SLS, SLT, Timberline | 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Sonoma | 1991-1993 | Base, GT, SLE, SLS | 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Syclone | 1991 | Base | 6 Cyl 4.3 L GAS
- Typhoon | 1992-1993 | Base | 6 Cyl 4.3 L GAS
View More
View related parts
GMC Release Cable
Part Number: 15734861
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
Fits the following GMC Models:
- Safari | 1996-2005 | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts
GMC Release Cable
Part Number: 14039963
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable; Cable, Hood Latch Release
Fits the following GMC Models:
- C1500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C1500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- Jimmy | 1984-1991 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
View More
View related parts
GMC Release Cable
Part Number: 14048590
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
Fits the following GMC Models:
- G1500 | 1984-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G2500 | 1984-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- G3500 | 1984-1996 | Magnavan, Rally, Rally Camper Special, Rally Custom, Rally STX, Vandura, Vandura Special | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- P2500 | 1985-1989 | Base, Value Van | 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- P3500 | 1985-1996 | Base, Value Van | 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Release Cable
Part Number: 15707348
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaces: 15677755, 15982479, 15966853
Fits the following GMC Models:
- Safari | 1985-1995 | Base, GT, SL, SLE, SLT, SLX | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Release Cable
Part Number: 15981138
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
Fits the following GMC Models:
- C1500 Suburban | 1992-1994 | Base, SLE | 8 Cyl 5.7 L GAS
- C2500 | 1992-1994 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1994 | Base, SLE | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1992-1994 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 Suburban | 1992-1994 | Base, SLE | 8 Cyl 5.7 L GAS
- K2500 | 1992-1994 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1992-1994 | Base, SLE | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1992-1994 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Yukon | 1992-1994 | Base, GT, SLE, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View More
View related parts
GMC Release Cable
Part Number: 15153548
Product Specifications
- Other Name: Cable, Hood Latch; Hood Release Cable
- Replaces: 15734761
Fits the following GMC Models:
- Savana 1500 | 1996-2002 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- Savana 2500 | 1996-2002 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- Savana 3500 | 1996-2002 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
View More

| Page 1 of 2 |Next >

1-20 of 37 Results

GMC Hood Cable Parts Questions & Experts Answers

Release Cable, Black
25854190
Q: How to replace the Hood Cable on GMC Canyon?
A: The cable replacement process starts with grille and Hood Latch removal before freeing the cable from its Hood Latch assembly home. Before installation label where mechanic's wire will pass through then add it to the outside cable end. Push the cable grommet through the cowl panel until it reaches the vehicle interior space after letting go of the retainers which hold the cable to the inner fender and radiator support. After removing the knee bolster hood release handle bolts you should detach the cable from the handle. Remove the mechanic's wire while it remains positioned for future cable installation and pull the cable through the cowl panel and out behind the sound insulation. Pull the cable out of the vehicle's structure. Before installation attach the mechanic's wire to the new cable end and use this guide to feed the cable beneath sound insulation before passing the exterior section through the cowl panel opening. Install the cable to the release handle while positioning the cable grommet to the cowl panel before putting back the release handle onto the knee bolster. Secure the bolts which hold the release handle in place to the knee bolster by tightening them to 1 n.m (9 lb in). Follow cable routing guidelines then secure the cable at inner fender retainers before connecting it to the Hood Latch assembly and reattaching the Hood Latch and finishing with grille installation.
Release Cable
21997874
Q: How to replace the Hood Cable for the Primary Latch Release on GMC Envoy?
A: Start the hood primary latch cable replacement by removing the left front door sill plate and then the left closeout/insulator panel before moving on to the grille. Separate the Hood Latch and detach the Hood Cable from the Hood Latch assembly. Mark down the cable route while affixing mechanic's wire to the outer conclusion of the cable. Lift the inner fender retainers which hold the cable next to the headlamp housing panel and Radiator before pulling out the cable between them. Push the grommet casing through the bulkhead before removing the hood release handle attachment nut from its position on the left cowl trim panel to detach the cable from the release handle. Pull the cable through the cowl panel opening behind the sound insulation while detaching the mechanic's wire for easy installation guidance. The cable needs extraction from the automobile. Use the mechanic's wire to lead the new cable underneath sound insulation before passing through the cowl panel from its exterior side. Connect the cable to the handle but install the grommet onto the panel before attaching it to the cowl. Secure the release handle in its left side kick panel installation by using the nut which needs to be tightened at 7 nm (62 lb in). Follow the established cable path to the inner fender retainers where you should attach the cable before installing it to the Hood Latch assembly. Finish the installation by reattaching the Hood Latch followed by the grille and then the left closeout/insulator panel and left front door sill plate.
Release Cable
15751510
Q: How to replace the Hood Cable on GMC Savana 2500?
A: Before starting the Hood Cable replacement procedure you must lift and support the hood. The installation requires removing the cable from both components situated on the radiator support retainer and the hood latch. Push both the grommet and cable down into the cab from the engine compartment opening. The body needs its left side hinge pillar trim panel detached to take out screws from the body that hold the cable handle before finally removing the handle. Remove the cable from the vehicle as the last step. To begin installation start by placing the cable back inside the vehicle and guide it from the cabin area through the engine compartment. Anchor the body with a cable handle after inserting the bulkhead grommet then fasten this assembly using screws. Place the left side hinge pillar trim panel back in position then join the cable to the retainer on the radiator support and to the hood latch before putting the hood into its closed position.
