GM 12567695

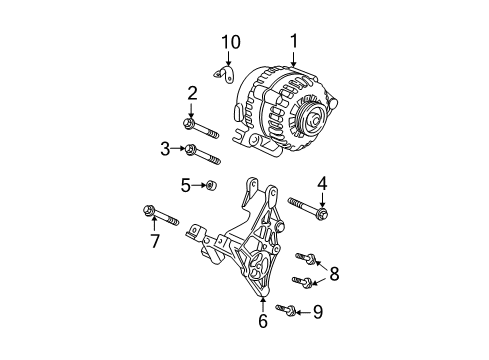

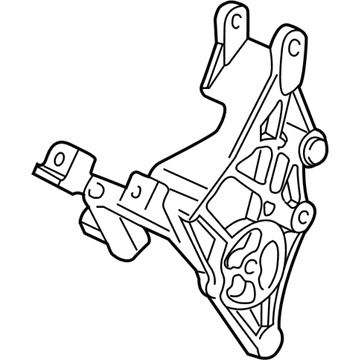

Alternator Bracket

The first step to replace the generator bracket involves removing the negative Battery Cable from the battery. Begin by disconnecting the generator along with its bolts and bracket and then proceed to remove the bracket. Install the generator bracket on the engine while tightening its bolts to 50 n.m (37 lb ft). Refer to the fastener notice in service precautions for installation procedure. Reinstatement of generator components requires a Battery Cable reconnection procedure after bracket installation.

The procedure to replace the generator bracket starts with disconnecting the negative Battery Cable from the battery and removing the generator bracket bolts and the generator. Finally, remove the generator bracket. When installing the bracket start by mounting it onto the engine and initially tighten generator bracket bolts to 50 n.m (37 lb ft) but do so after reading the fastener notice in service precautions. Reinstall the generator followed by connection of the negative Battery Cable to its battery terminal.

The replacement process for the generator bracket starts with removal of the generator and then the tensioner. The following step involves removing generator bracket bolts. You should extract the generator bracket followed by the engine lift bracket from the system. Put the engine lift bracket along with the generator bracket on top of the engine before installing the generator bracket bolts to a 50 n.m (37 lb ft) torque value. The replacement process ends with the generator installation after the drive belt tensioner installation.

For replacing the generator bracket with rpo code lx9, it is required to remove the generator, removing in order the drive belt tensioner, and the generator bracket bolts. Once that is done, remove the generator bracket and engine lift bracket. After install, place the engine lift bracket and generator bracket on the engine with the following of the fastener notice. Then you need to install the generator bracket bolts and put them up tightly with 50 n.m(37 lb ft). Good and finally install the drive belt tensioner and the generator.

The generator replacement process requires operators to remove the generator then the drive belt tensioner before starting work on the generator bracket. The first step to replacement is to remove generator bracket bolts then detach the generator bracket. Install the generator bracket first then secure it by tightening generator bracket bolts to 50 n.m (37 lb ft) according to the specified sequence. The installation process ends with drive belt tensioner installation and then the generator becomes the last component to be reinstalled.

You must begin replacement of the generator bracket by disconnecting the battery negative cable from the battery followed by removal of the generator bracket bolts and generator before removing the bracket. Start by fastening the generator bracket to the engine and follow the fastener notice in service precautions before tightening each bolt to 50 n.m (37 lb ft) after finger tightening. Once the bracket is secured you should put back the generator and restore power to the battery by reconnecting its negative cable.

You must disconnect the battery negative cable from the battery next to remove the generator bracket bolts and the generator before you can separate the generator bracket. You should then remove the engine lift hook. The first step for installation includes attaching the engine lift hook after which you should install the generator bracket to the engine and tighten the bracket bolts by hand. Screw in each generator bracket bolt to 50 n.m while tightening (37 lb ft) before you reattach the generator followed by reconnecting the battery negative cable to the battery.

Begin generator bracket replacement by disconnecting the negative Battery Cable then rotating the Drive Belt tensioner counterclockwise to remove the accessory Drive Belt. The generator must be removed first along with the Drive Belt tensioner bolt followed by the Drive Belt tensioner. First remove the Drive Belt idler pulley bolt and idler pulley before continuing with the generator bracket bolt extraction and final removal of the generator bracket. Installation begins with the generator bracket followed by generator bracket bolt installation according to fastener notice in service precautions while torquing bolts in sequence to 50 n.m (37 lb ft). Begin by installing the Drive Belt tensioner followed by its bolt then tighten it to 50 n.m (37 lb ft). Proceed with driving belt idler pulley and bolt installation with a 50 n.m (37 lb ft) torque setting. To complete the operation install the generator then use counterclockwise motion on the Drive Belt tensioner to add the accessory Drive Belt before reconnecting the negative Battery Cable.

The process to change the generator brace starts with removing both the generator rear brace nut and generator rear brace bolt before installing the generator rear brace. Begin installation with the generator rear brace before starting both the generator rear brace bolt and generator rear brace nut by hand. A correct installation process requires boult tightness order according to specifications which include tightening the generator rear brace bolt to 50 N.m (37 lb ft) alongside generator rear brace nut to a torque of 50 N.m (37 lb ft).

The first step in generator bracket replacement is generic and drive belt tensioner removal. Start by removing generator bracket bolts and proceeding to uninstall the generator bracket. Service precautions regarding fastener notice must be followed when installing the generator bracket for its first installation. Install the generator bracket bolts starting from the sequence listed below and tighten them to 50 n.m (37 lb ft). You should put back the generator and drive belt tensioner in the final stage of the installation process.

The generator replacement process requires operators to remove the generator then the drive belt tensioner before starting work on the generator bracket. The first step to replacement is to remove generator bracket bolts then detach the generator bracket. Install the generator bracket first then secure it by tightening generator bracket bolts to 50 n.m (37 lb ft) according to the specified sequence. The installation process ends with drive belt tensioner installation and then the generator becomes the last component to be reinstalled.

Begin by installing the generator bracket.

Install the generator bracket bolts, tightening them in the specified sequence to 50 N.m (37 lb ft).

Install the generator bracket.

Begin by installing the generator rear brace.

Remove the generator rear brace nut and the generator rear brace bolt, then take out the generator rear brace.

Yes, tighten the generator rear brace nut to the same torque specification.

The drive belt tensioner bolt and the drive belt tensioner itself.

Install the generator bracket and its bolts, tightening them in sequence to 50 N.m (37 lb ft).

Disconnect the negative battery cable.

Tighten the generator rear brace nut to 25 N.m (18 lb ft).

Tighten the generator rear brace nut to 25 N.m (18 lb ft).

Secure it with the generator bracket bolts, tightening them in the specified sequence to 50 N.m (37 lb ft).

First, remove the generator.

Install the generator bracket, ensuring to adhere to the Fastener Notice in Service Precautions.
