GM 13586977

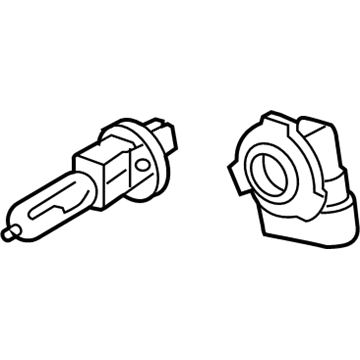

Headlamp Bulb, Green Line

A proper bulb swap for bravada, envoy, envoy xuv and rainier requires a turning off of the lamp switch and allowing the bulb to reach safe handling temperatures. Eye protection should always be worn and you should handle the bulb by its base while keeping your hands away from the glass to prevent bulb shattering. Handle the bulb by its base only then keep it dry and clean before correct disposal of used bulbs. Start by opening the hood followed by removing the headlamp then continue by taking off the access cover that resides at the back of the headlamp. The electrical connector should be unlocked from its socket before rotating the bulb and socket components counterclockwise to separate them from the housing. Attach the electrical connector to its socket before you apply clockwise rotation to the bulb and socket for secure installation into the housing where retaining tabs should properly lock into position. Affix the access cover to the rear side of the headlamp assembly followed by reattachment of the headlamp unit. Select a black socket to fit high beam bulbs because low beam bulbs need a gray tip coupled with a gray socket.

The procedure to replace Headlight bulbs on envoy or rainier starts with turning off the lamp switch and waiting for bulb temperature reduction to minimize possible glass shattering. Eye protection must be worn at all times while you handle the bulb through its base because touching glass is forbidden and you need to stay away from dirt and wetness. Moist or touched bulbs require cleaning with alcohol or suitable degreaser before they must be properly dried thoroughly. Open the hood then detach both the headlamp and its associated access cover that is situated behind the lamp unit. First disconnect the electrical connector from its socket and then turn the bulb and socket detachable part counterclockwise to extract them from the housing. Installation of new bulbs requires using a high beam bulb with a black socket and a low beam bulb with a socket having gray tip and gray base. The electrical connector should first be inserted in the socket before setting up the bulb and socket and turning them clockwise until the locking tabs click into place. Complete the procedure by putting back the access cover together with the headlamp. The proper disposal of bulbs requires appropriate methods and all halogen bulbs need to remain out of children's access area.

The first step to replace a fog lamp bulb starts with switching off the fog lamp switch. Perform counterclockwise rotation on the bulb socket so it will come free from the fog lamp housing. Extract the fog lamp housing socket and uninstall the bulb from the socket. Insert the new bulb inside the socket while making sure its tab slots fit properly into the fog lamp housing slots. The socket installation into the fog lamp housing requires turning the socket clockwise while ensuring complete seating.

The replacement process for equinox Headlight bulbs begins by opening the hood then taking off the fascia to push in the tie bar retainers. Gently pulling the top fascia for several inches will free the headlamp retaining clip from the radiator grille strap while a piece of tape should cover the strap to avoid damaging the headlamp lens. Once the headlamp bolts are removed (1, 2) users can disengage the lower rear headlamp retainer by pulling gently on the bottom outboard corner and then remove the headlamp from the vehicle. To install headlamps users should place the headlamp inside the opening before pushing it backwards for correct engagement of the lower rear retainer. Use torque tools to tighten the headlamp bolts (1, 2) at 2.5 n.m (22 lb in). The radiator grille strap retainer must have its tape removed so you can install the fascia assembly before inserting the radiator grille strap into the headlamp until it engages with tie bar push-in retainers. To complete the process close the hood and verify and readjust front headlamp direction after reinstallation.

The process of front fog lamp bulb (XTREME) replacement starts by setting the fog lamp switch to off mode while disconnecting the electrical connector. You must turn the bulb socket counterclockwise to detach it from the fog lamp housing. Then pull out the socket and bulb from the socket. To install the bulb insert it into the socket while making sure that the slots on the bulb socket match the positions in the fog lamp housing. To install the socket into the fog lamp housing you must turn it clockwise until it reaches complete seating.

The replacement process of front (base) fog lamp bulbs starts by raising your vehicle then providing safe support. Start by disconnecting the electrical connector of the fog lamp assembly. The fog lamp bulb will detach from the housing after turning it 1/4 turn counterclockwise. Insert the new fog lamp bulb into its housing before securing it by twisting it in the clockwise direction about a quarter turn. After connecting the electrical connector to the fog lamp assembly perform vehicle lowering.

First, raise and support the vehicle (to replace the front fog lamp bulb). Disconnect the electrical connector from the fog lamp assembly and turn the bulb 1/4 turn to the counter clockwise direction to remove it from the fog lamp assembly. To install it, insert the new fog lamp bulb in the lamp housing and then twist it 1/4 turn clockwise just to secure it. Lastly, plug back the electrical connector at the fog lamp assembly and lower the car.

The first step in headlamp bulb replacement requires avoiding all contact with the bulb itself and damp surfaces which could result in explosion upon turning on the light; clean the bulb using alcohol or a suitable degreaser before a thorough drying process takes place. Check the defective bulb before starting the replacement process. First use the wheel to reveal the headlamp door access cover inside the wheelhouse liner before removing both the fastener and the cover. The electrical cord should be disconnected from the bulb before the bulb can be released by rotating it counterclockwise ¼ turn. This action allows bulb removal from the vehicle. Insert the new bulb into the headlamp assembly then use counter-clockwise movement to turn it ¼ to achieve proper installation. Next place the headlamp door covering along with its fitting back into position while tightening the fastener between 7-11 n.m (62-98 lb in). Set the wheels at a facing direction before finishing the procedure.

Open the hood and remove the headlamp.

Always wear eye protection and handle the bulb only by its base, avoiding contact with the glass, dirt, or moisture.

Always handle halogen bulbs with care, avoiding contact with the glass, and ensure they are kept clean and dry to prevent explosion risks.

Avoid touching the bulb with bare skin, and if contact occurs, clean it with alcohol or a suitable degreaser before installation.

Install the new bulb into the socket.

Place a piece of tape over the radiator grille strap to headlamp retaining clip.

Place the fog lamp bulb socket back into the housing.

Take out the bulb from the socket.

Remove the push-in retainers that secure the front flap of the front wheelhouse liner to the fascia.

Twist the bulb about 1/4 turn counterclockwise to remove it from the lamp housing.

Reinstall the access cover at the rear of the headlamp assembly.

Insert the park/turn bulb into the socket, then rotate the socket clockwise to install it into the headlamp housing. Replace the access cover by rotating it clockwise.

Insert the park/turn bulb into the bulb socket, then install the socket into the headlamp housing by rotating it clockwise.

Open the hood while holding the headlamp to prevent damage.

Rotate the headlamp bulb access cover counterclockwise to remove it, then rotate the socket counterclockwise to take out the headlamp bulb. Disconnect the headlamp bulb electrical connector if necessary.

Reconnect the electrical connector to the headlamp assembly, position it back onto the vehicle ensuring the tabs are seated, and install the bolts, tightening them to 2 N.m (18 lb in).

Turn the fog lamp switch to the OFF position.

Remove the fastener and the cover itself.

Remove the fastener and the cover itself.

Close the hood and check and adjust the front headlamp aim.

Turn the fog lamp switch to the OFF position.
