Make sure this part fits

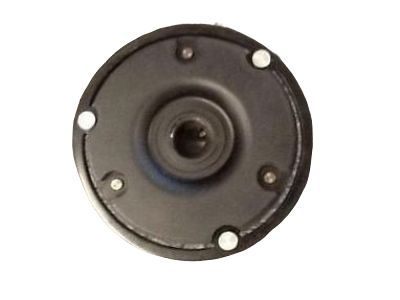

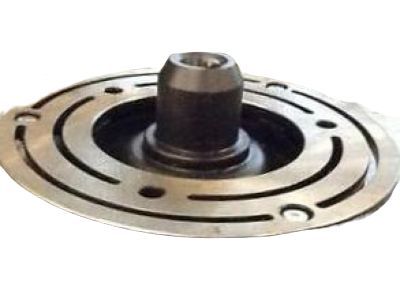

GM 89019049
Clutch Drive

1985-2005 GM

Customer Questions & Expert Answers (3)
GM 89019049 Clutch Drive
GM 89019049 Clutch Drive
GM 89019049 Clutch Drive
GM 89019049 Clutch Drive
GM 89019049 Clutch Drive
  • Part Description
    Clutch Assembly, A/C; A/C Compressor Clutch
  • Replaces
    06570537, 06581042, 06581043, 06581376, 06553791, 6570537, 6581043, 06580054, 6581376, 6553791, 6580054, 6581042
  • Manufacturer
    General Motors
Make sure this part fits
$138.27 MSRP: $259.66
You Save: $121.39 (47%)
Ships in 1-2 Business Days
1
ADD TO CART

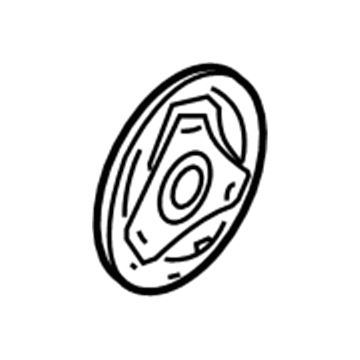

  • 89019049 Clutch Drive is Ref No. 23 in the diagram below

    1993 Chevy Camaro Clutch Drive Diagram for 89019049
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 89019049

  • Vehicle Fitment

    Year Make Model Trim Engine
    1994-1996 Buick Commercial ChassisBase8 Cyl 5.7 L GAS
    1987-1990 Buick ElectraLimited, Park Avenue, Park Avenue Ultra, T-Type6 Cyl 3.8 L GAS
    1986-1995 Buick LeSabreBase, Custom, Limited, T-Type6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
    1991-1995 Buick Park AvenueBase, Ultra6 Cyl 3.8 L GAS
    1988-1991 Buick ReattaBase6 Cyl 3.8 L GAS
    1990-1995 Buick RegalCustom, Gran Sport, Limited6 Cyl 3.8 L GAS
    1995, 1986-1993 Buick RivieraBase, Luxury, T-Type6 Cyl 3.8 L GAS
    1994-1996 Buick RoadmasterBase, Collector's Edition, Estate Wagon, Estate Wagon Collector's Edition, Limited, Limited Collector's Edition8 Cyl 5.7 L GAS
    1985-1986 Buick SkylarkCustom, Limited6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS
    1986 Buick SomersetCustom, Limited, T-Type6 Cyl 3.0 L GAS
    View More
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is 89019049 compatible with my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 89019049 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to service and repair the A/C Clutch on Chevrolet Astro? Posted by Customer
    A:
    Start compressor clutch servicing and repair by taking the compressor out of the vehicle then fixing it in a vise with the compressor holding fixture (J 41790). Secure the compressor onto the holding fixture through both thumb screws. Extract the clutch hub shaft protector while maintaining performance of the clutch hub or shaft to prevent internal damage during removal. The clutch plate and hub assembly installer-remover j 33013-b should have its forcing tip flat when in use to prevent damage to shaft/axial plate assembly components. Insert the j 33013-b tool into the hub before using a wrench to secure the remover body. Turn the central screw to disassemble the clutch plate and hub assembly. Keep the shaft key aside for reuse during reassembly and remove both the clutch plate and hub assembly. Put the shaft key in the hub key groove so it extends 3.2 mm (0.125 inches) past the keyway for installation. To install the compressor shaft placement requires washing both the clutch plate and clutch rotor followed by alignment of the shaft key with the keyway. Then place the assembly on the compressor shaft. Use the j 33013-b forcing tip to set up the center screw thread while using a wrench for support before installing the screw onto the compressor shaft end. Apply pressure through the hex portion of the j 33013-b body to mount the hub onto the shaft keeping 3.81-51 mm (0.15-0.20 in) space between clutch plate and clutch rotor frictional surfaces. Perform a clearance test in three locations before using the tool to remove the installer while keeping the shaft key proper. Write down the shaft key position relative to clutch hub alignment and check it sits at or just above the center line. Next confirm that pulley rotor rotation does not cause friction between clutch drive plate surfaces. To finish the installation install the shaft protector to the clutch hub shaft before taking both thumb screws off the compressor holding fixture (J 41790). Pull the fixture from the vise to reinstall the compressor to the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to service and repair the A/C Clutch on GMC Safari? Posted by Customer
    A:
    Start compressor clutch servicing and repair by taking the compressor out of the vehicle then fixing it in a vise with the compressor holding fixture (J 41790). Secure the compressor onto the holding fixture through both thumb screws. Extract the clutch hub shaft protector while maintaining performance of the clutch hub or shaft to prevent internal damage during removal. The clutch plate and hub assembly installer-remover j 33013-b should have its forcing tip flat when in use to prevent damage to shaft/axial plate assembly components. Insert the j 33013-b tool into the hub before using a wrench to secure the remover body. Turn the central screw to disassemble the clutch plate and hub assembly. Keep the shaft key aside for reuse during reassembly and remove both the clutch plate and hub assembly. Put the shaft key in the hub key groove so it extends 3.2 mm (0.125 inches) past the keyway for installation. To install the compressor shaft placement requires washing both the clutch plate and clutch rotor followed by alignment of the shaft key with the keyway. Then place the assembly on the compressor shaft. Use the j 33013-b forcing tip to set up the center screw thread while using a wrench for support before installing the screw onto the compressor shaft end. Apply pressure through the hex portion of the j 33013-b body to mount the hub onto the shaft keeping 3.81-51 mm (0.15-0.20 in) space between clutch plate and clutch rotor frictional surfaces. Perform a clearance test in three locations before using the tool to remove the installer while keeping the shaft key proper. Write down the shaft key position relative to clutch hub alignment and check it sits at or just above the center line. Next confirm that pulley rotor rotation does not cause friction between clutch drive plate surfaces. To finish the installation install the shaft protector to the clutch hub shaft before taking both thumb screws off the compressor holding fixture (J 41790). Pull the fixture from the vise to reinstall the compressor to the vehicle.
    Posted by ChevyPartsGiant Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Clutch Drive 89019049 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 89019049 Clutch Drive is available in the market under the name GM A/C Clutch. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 89019049 Clutch Drive fits certain Chevrolet S10, Tahoe, Camaro models, as well as GMC Sierra 1500, Yukon, Sonoma. Additionally, it is compatible with Cadillac Escalade, Allante, DeVille and Buick Reatta, Regal, Riviera models.
The original GM component designated by manufacturer part number 89019049 maintains top performance when functioning as the Clutch Assembly, A/C; A/C Compressor Clutch unit. The component 89019049 is constructed from durable material and its dimensions span 6.3 x 6.0 x 2.4 inches while weighing 0.70 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Clutch Plate & Hub Assembly; Clutch; Clutch, A/C Compressor Clutch. The part 89019049 has available replacement options 06570537, 06581042, 06581043, 06581376, 06553791, 6570537, 6581043, 06580054, 6581376, 6553791, 6580054, 6581042. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
If you want to save money in the long run on maintenance and repairs, you should choose OEM products because they're of the top level of durability. Are you on the quest of finding GM parts, our site is worth a visit. We stock an endless selection of high-quality GM components including things like ignition coils all the way through to fan shrouds and all at prices that can not be matched. You have nothing to worry about because all our OEM parts are covered with a manufacturer warranty, which guarantees superior quality and value.
