How to replace the MAP Sensor on Chevrolet Equinox?

Start the MAP Sensor replacement process by unplugging the electrical connection from the pressure sensor unit. You need to begin by disconnecting the electrical connector from the MAP Sensor then use a t27 torx bit to extract the MAP Sensor retaining bolt from both the MAP Sensor and its bracket. Afterward, remove the MAP Sensor as well as any MAP Sensor port seal attached to the Intake Manifold. Place the MAP Sensor on the Intake Manifold and join it with the MAP Sensor retaining bracket before attaching the retaining bolt . Follow the fastener notice in service precautions for tightening the bolt to 10 n.m (89 lb in). Reconnect the electrical connector when completing the installation.

OEM Chevrolet Equinox MAP Sensor

Manifold Air Pressure Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 MAP Sensors found

View related parts

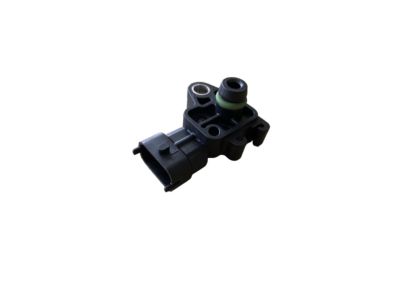

Chevrolet Equinox M.A.P. Sensor Part Number: 55573249
$37.22 MSRP: $69.92
You Save: $32.70 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Computer Control Sensors; MAP Sensor; Pressure Sensor; Boost Sensor; Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS
View related parts
Chevrolet Equinox M.A.P. Sensor Part Number: 55573248
$27.69 MSRP: $45.61
You Save: $17.92 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Computer Control; Air Pressure Sensor; Height Adaptation; Manifold Absolute Pressure Sensor; MAP Sensor; Ignition Module; Sensor; Sensor, Turbocharger/Supercharger
- Replaces: 12591290, 93192107
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Throttle Position Sensor Part Number: 12711681
$46.60 MSRP: $94.64
You Save: $48.04 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Computer Control Sensors; MAP Sensor; M.A.P. Sensor; Pressure Sensor; Boost Sensor; Sensor; Sensor, Turbocharger/Supercharger
- Replaces: 12694725, 12644228, 12594942, 12701247
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Chevrolet Equinox | LT, LTZ | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Chevrolet Equinox M.A.P. Sensor Part Number: 25203477
$22.19 MSRP: $41.68
You Save: $19.49 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Computer Control Sensors; MAP Sensor
- Replaces: 12612110, 12643955, 25202498
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2020 Chevrolet Equinox | LT, Premier | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Map Sensor Part Number: 55593802
$36.39 MSRP: $57.77
You Save: $21.38 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Intake Air Pressure & Temperature; Manifold Absolute Pressure Sensor; Pressure Sensor; Sensor, Computer Control Sensors
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2019 Chevrolet Equinox | LT, Premier | 4 Cyl 1.6 L DIESEL
View related parts
Chevrolet Equinox M.A.P. Sensor Part Number: 19418807
$76.01 MSRP: $129.40
You Save: $53.39 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Computer Control Sensors; Manifold Absolute Pressure Sensor; MAP Sensor
- Replaces: 12614970, 16212460
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Chevrolet Equinox | LS, LT, LTZ | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox M.A.P. Sensor Part Number: 12707766
$28.91 MSRP: $56.13
You Save: $27.22 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Intake Air Pressure & Temperature; Map Sensor; Pressure Sensor; Air Intake Temperature Sensor; Sensor, Computer Control Sensors
- Replaces: 12670600, 12681993
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS

Chevrolet Equinox MAP Sensor

Want to cut long-term maintenance and repair costs? Choose OEM MAP Sensor. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox MAP Sensor includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

MAP Sensor used in Chevrolet Equinox is a critically essential feature that measures the positive air pressure that is getting into the intake manifold, thus relaying this information to the ECU to redesign the fuel injection for the optimal outcome. The MAP Sensor assists in deciding the ratio of air and fuel for combustion in fuel-injected engines aiding in the speed density method. In Equinox models, there is a possibility to include a MAP sensor, or a mass airflow sensor where the forced induction engines have both. On the other hand, the MAP Sensor also helps in the diagnostics of the vehicle especially for testing the efficiency of the EGR valve in measuring the right proportional fuel metering and ignition sequence for the proper functioning of the engine.

Chevrolet Equinox MAP Sensor Parts Questions & Experts Answers

M.A.P. Sensor
19418807
Q: How to replace the MAP Sensor on Chevrolet Equinox?
A:
Start the MAP Sensor replacement process by unplugging the electrical connection from the pressure sensor unit. You need to begin by disconnecting the electrical connector from the MAP Sensor then use a t27 torx bit to extract the MAP Sensor retaining bolt from both the MAP Sensor and its bracket. Afterward, remove the MAP Sensor as well as any MAP Sensor port seal attached to the Intake Manifold. Place the MAP Sensor on the Intake Manifold and join it with the MAP Sensor retaining bracket before attaching the retaining bolt . Follow the fastener notice in service precautions for tightening the bolt to 10 n.m (89 lb in). Reconnect the electrical connector when completing the installation.
