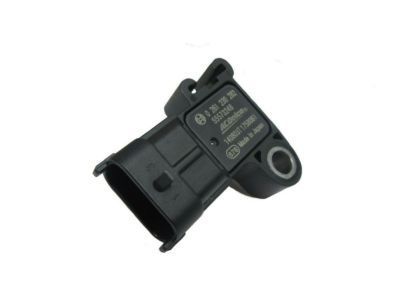

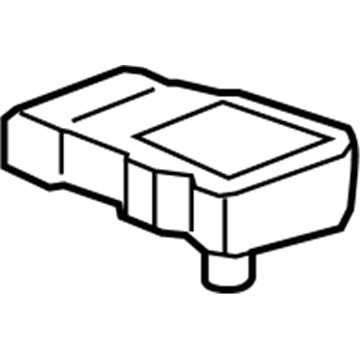

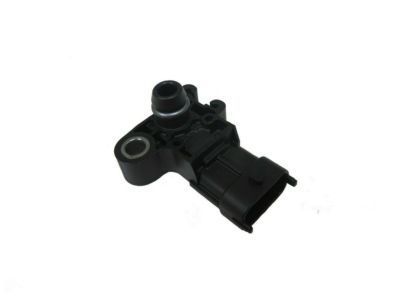

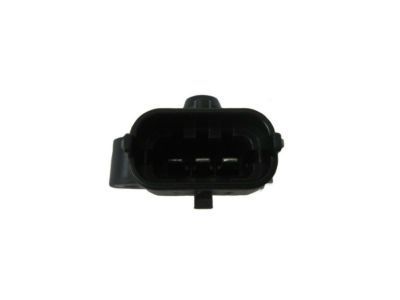

GM 55573248
M.A.P. Sensor

To change the Manifold absolute pressure Sensor, you need to remove the fuel injector sight shield. Remove the manifold absolute pressure sensor on the engine wiring harness electrical connector from MAP sensor, then pull out the MAP sensor bolt as well as the sensor. Apply clean engine oil to the NEW MAP sensor O-ring seal and install the MAP sensor and bolt, securing the bolt to 10 N.m (89 lb in). Then, connect the MAP sensor to the engine wiring harness electrical connector and reinstall the fuel injector sight shield.

To replace the Manifold Absolute Pressure Sensor, first remove the intake manifold cover to replace it. Next, disconnect manifold absolute pressure (MAP) sensor electrical conn, and also if needed, remove the spark plug wire clip from the intake manifold bracket. Next, disconnect the upper intake manifold bolts and remove the MAP sensor and its bracket and lastly the MAP sensor seal on the upper intake manifold. For installation, install the MAP sensor seal into upper intake manifold then MAP sensor and bracket. Make sure you install the bolts for the upper intake manifold and tighten them up at an angle of 25 Nm (18 lb ft). Reinstall the spark plug wire clip to the intake manifold bracket, MAP sensor electrical connector, and lastly, install the intake manifold cover, if required.

The first step when replacing the manifold absolute pressure sensor requires removing the Throttle Body. First disconnect the engine harness electrical connector from the manifold absolute pressure (MAP) sensor then pull out the MAP Sensor with its attached seal. Before installing the MAP Sensor into the Intake Manifold wipe its new sensor seal with clean engine oil. Proceed by attaching the engine harness electrical connector to the MAP Sensor followed by reinstalling the Throttle Body.

Starting the manifold absolute pressure sensor replacement process requires removing the Throttle Body. The evaporative emission (EVAP) purge tube needs disconnecting from the Intake Manifold before moving forward. Disconnect the wiring harness clips from the Fuel Rail then place the harness out of your working area. Next disconnect the electric connector of the manifold absolute pressure (MAP) sensor and unscrew the MAP Sensor while examining the seal for damage. The MAP Sensor needs replacement when you discover damage to its sealing mechanism. Begin your installation by installing a fresh MAP Sensor seal when needed and afterward place the MAP Sensor and secure its electrical connector. Let the wiring harness rest in place before reattaching its clips on the Fuel Rail then finalize the connection of the evap purge tube to the Intake Manifold. Finally, reinstall the Throttle Body.

You need to remove the air cleaner outlet duct before starting parts replacement on the manifold absolute pressure sensor. Begin by disconnecting the evaporative emission (EVAP) canister purge tube from the Intake Manifold then relocate it away from the area. The procedure begins by disconnecting the MAP Sensor wiring from the electrical connector of the Fuel Injector harness before taking off the harness clips from the fuel rail tabs. Cease the electrical connection between the Fuel Injector wiring harness and the number 3 Fuel Injector before you press the tabs and elevate the MAP Sensor. Prior to MAP Sensor installation you should apply a small amount of clean engine oil to the MAP Sensor seal then position the sensor within the Intake Manifold. Clamp the Fuel Injector wiring harness electrical connector to the number 3 Fuel Injector following installation of Fuel Injector wiring harness clips onto the fuel rail tabs. You must install the MAP Sensor into the Intake Manifold then route the evap canister purge tube through and connect it to this unit. Afterwards connect the Fuel Injector wiring harness electrical connector to the MAP Sensor. The final step involves installing the duct connected to the air cleaner outlet.

Start by removing the intake manifold cover before replacing the Manifold Absolute Pressure Sensor. Remove the spark plug wire clip from the intake manifold bracket. Then disconnect the electrical connector of the manifold absolute pressure (MAP) sensor. Starting with bolt removal from the upper intake manifold you should proceed to take out the MAP sensor with its bracket before extracting the MAP sensor seal from this component. Another part of the installation process involves inserting the MAP sensor seal into the upper intake manifold before installing both the MAP sensor and its bracket. Secure the upper intake manifold bolts where torque reaches 25 Nm (18 lb ft) while optional spark plug wire clip reattachment to the intake manifold bracket might be necessary. oku to complete the installation by connecting the MAP sensor electrical connections before fitting in the intake manifold cover.

Start the replacement of the manifold absolute pressure sensor by removing the air cleaner outlet duct before disconnecting the evaporative emission (EVAP) canister purge tube from the Intake Manifold for repositioning out of the way. The worker must first unplug the MAP Sensor electrical connector from the Fuel Injector wiring harness then remove the wiring harness retention clips from fuel rail tabs before disconnecting the harness electrical connector from number 3 Fuel Injector. Press the tabs while sliding the MAP Sensor so you can remove it from its position. Clean engine oil should be used to lubricate the new MAP Sensor seal before you install the MAP Sensor inside the Intake Manifold. Reconnect the Fuel Injector wiring harness electrical connector to number 3 Fuel Injector then install the Fuel Injector wiring harness clips onto the fuel rail tabs followed by reconnecting the Fuel Injector wiring harness electrical connector to the MAP Sensor. Extract the evap canister purge tube from the pathway and then return it to the Intake Manifold before installing the air cleaner outlet duct.

The first step of MAP sensor replacement requires removal of the fuel injector sight shield. First disconnect the MAP sensor wiring harness electrical connector from the MAP sensor before removing both the MAP sensor bolt and sensor. Before sensor installation apply clean engine oil to the new MAP sensor O-ring seal. The MAP sensor installation requires you to tighten the bolt to 10 N.m (89 lb in) torque. Connect the engine wiring harness electrical connector to the MAP sensor then replace the fuel injector sight shield.

Begin manifold absolute pressure sensor replacement by taking off the intake manifold cover. Start by disconnecting the engine harness electrical connector from the MAP sensor. Then remove all the MAP sensor bracket bolts with its accompanying bracket. After removing the MAP sensor check for damage on the MAP sensor seal then install a new one if needed. Set down the new MAP sensor seal when required then add the MAP sensor . When installing the MAP sensor bracket and bolts always use a torque of 25 N.m (18 lb ft). The engine harness electrical connector must be installed on the MAP sensor followed by reinstallation of the intake manifold cover.

Start by disconnecting the engine wiring harness electrical connector from the manifold absolute pressure (MAP) sensor with caution to prevent sensor damage from rotation or prying. Remove the MAP Sensor bolt first. Then pull the MAP Sensor upwards while gently rocking it to extract it from the upper Intake Manifold. Check if the MAP Sensor has damaged seals then change them if found. Begin the installation process by placing a new MAP Sensor seal on the sensor when necessary and secure the MAP Sensor to the upper Intake Manifold. Tighten the MAP Sensor bolt to a torque of 10 n.m (89 lb in). Reconnect the engine wiring harness electrical connector to the MAP Sensor in conclusion.

Remove the upper intake manifold bolts, followed by the MAP sensor and bracket, and take out the MAP sensor seal from the upper intake manifold.

Install the MAP sensor.

Reconnect the battery negative cable.

Take out the manifold absolute pressure (MAP) sensor and disconnect its electrical connector.

Install the MAP sensor.

If needed, reinstall the spark plug wire clip to the intake manifold bracket, connect the MAP sensor electrical connector, and finally, install the intake manifold cover.

Install the MAP sensor onto the intake manifold.

First, remove the throttle body.

Install the MAP sensor onto the upper intake manifold, ensuring to follow fastener precautions.

Install the MAP sensor bolts and tighten them to 10 Nm (89 lb in).

Reconnect the engine wiring harness electrical connector to the MAP sensor.

Remove the MAP sensor retainer and the MAP sensor itself.
