Make sure this part fits

GM 12711681
Throttle Position Sensor

2008-2024 GM

Customer Questions & Expert Answers (11)

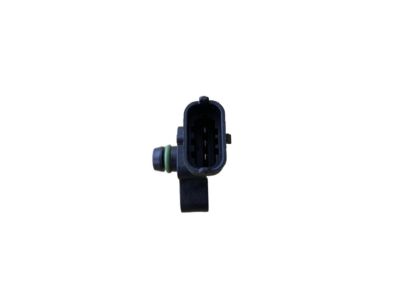

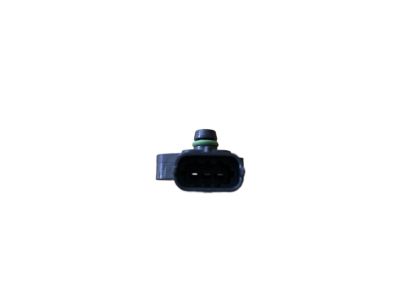

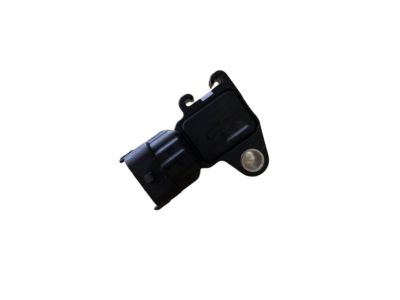

GM 12711681 Throttle Position Sensor
GM 12711681 Throttle Position Sensor
GM 12711681 Throttle Position Sensor
GM 12711681 Throttle Position Sensor
GM 12711681 Throttle Position Sensor
GM 12711681 Throttle Position Sensor
  • Part Description
    Sensor, Computer Control Sensors; MAP Sensor
  • Replaces
    12694725, 12644228, 12594942, 12701247
  • Manufacturer
    General Motors
Make sure this part fits
$46.60 MSRP: $94.64
You Save: $48.04 (51%)
Ships in 1-2 Business Days
1
ADD TO CART

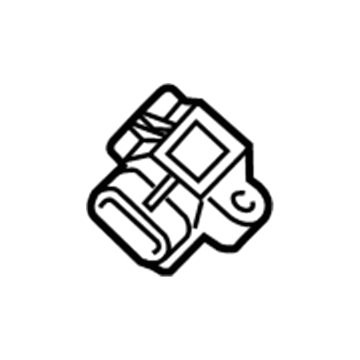

  • 2011 GMC Terrain Throttle Position Sensor Diagram for 12711681
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 12711681

  • Vehicle Fitment

    Year Make Model Trim Engine
    2010 Buick LaCrosseCX, CXL6 Cyl 3.0 L GAS
    2011 Buick RegalCXL4 Cyl 2.0 L FLEX
    2022-2024 Cadillac CT5V Blackwing8 Cyl 6.2 L GAS
    2014-2019 Cadillac CTSV, Vsport, Vsport Premium, Vsport Premium Luxury6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
    2009-2023 Cadillac EscaladeBase, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
    2009-2023 Cadillac Escalade ESVBase, Luxury, Platinum, Premium, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
    2010-2013 Cadillac Escalade EXTBase, Luxury, Premium8 Cyl 6.2 L FLEX
    2014-2019 Cadillac XTSVsport Platinum, Vsport Premium, Vsport Premium Luxury6 Cyl 3.6 L GAS
    2010-2013 Chevrolet AvalancheBlack Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ8 Cyl 5.3 L FLEX
    2016-2024 Chevrolet CamaroLT1, SS, ZL18 Cyl 6.2 L GAS
    View More
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 12711681 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 12711681 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the MAP Sensor on Cadillac Escalade? Posted by Customer
    A:
    The first step in order to replace Manifold Absolute Pressure Sensor is to remove intake manifold sight shield. Next you will disconnect the engine wiring harness electrical connector from the manifold absolute pressure (MAP) sensor, this will be followed by the removal of MAP sensor retainer and MAP sensor. Before the new MAP Sensor is installed, lightly oil its seal with clean engine oil. Goes ahead and installs the MAP sensor together with its retainer and then join the engine harness wiring electrical connector to the MAP sensor. Lastly, replace the intake manifold sight shield.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the MAP Sensor on Chevrolet Colorado? Posted by Customer
    A:
    The first step to replace the manifold absolute pressure sensor is to disconnect the electrical connector of the manifold absolute pressure (MAP) sensor. Push the retainer locking tabs inside before pulling the retainer upward to remove it. After removing the MAP Sensor from its Intake Manifold position you should check the MAP Sensor seal for any signs of damage and replace it if found necessary. Before installing the MAP Sensor apply a small amount of clean engine oil on its seal to help with the operation. The MAP Sensor needs to be inserted into the Intake Manifold before you add the MAP Sensor retainer . To finish the installation reconnect the MAP Sensor electrical component.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the MAP Sensor on Chevrolet Express 2500? Posted by Customer
    A:
    You need to remove the engine cover before starting sensor replacement work. Start by disconnecting the manifold absolute pressure sensor electrical connector then extract the MAP Sensor away from the Intake Manifold. The installation of the new sensor requires light coating of clean engine oil onto the MAP Sensor's sealing mechanism. Place the MAP Sensor on the upper Intake Manifold before connecting its electrical connector. Finally, reinstall the engine cover.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the MAP Sensor on Chevrolet Trailblazer? Posted by Customer
    A:
    Start by disconnecting the engine wiring harness electrical connector from the manifold absolute pressure (MAP) sensor to replace this component. Start by unscrewing the MAP sensor screw so you can take out the MAP sensor itsec. Check the seal on the MAP sensor for damage then replace it if needed. Apply clean engine oil on the MAP sensor seal before installing the MAP sensor into position. One must exercise care when handling fasteners. Fit the MAP sensor screw into position and torque it to 9 Nm (80 lb in). To finish installation connect the engine wiring harness electrical connector to the MAP sensor.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the MAP Sensor on GMC Envoy? Posted by Customer
    A:
    Before changing the Manifold Absolute Pressure Sensor do disconnect the engine wiring harness electrical connector from the manifold absolute pressure (MAP) sensor. First unfasten the MAP sensor screw before removing the MAP sensor. Check for damage on the Manifold Absolute Pressure Sensor seal then replace it if any problems are found. Clean engine oil should be used to lubricate the MAP sensor seal before you put the MAP sensor into its position. Secure the MAP sensor screw using a torque of 9 N.m (80 lb.in). After completing the procedure you need to reconnect the engine wiring harness electrical connector to the MAP sensor.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the MAP Sensor on GMC Yukon? Posted by Customer
    A:
    Start by taking off the intake manifold sight shield before replacing the Manifold Absolute Pressure Sensor. First disconnect the engine wiring harness electrical connector from the manifold absolute pressure (MAP) sensor before removing the MAP sensor retainer and sensor. The new MAP sensor requires a thin layer of clean engine oil on its seal prior to installation. Install the MAP sensor while placing its retainer and reconnect its engine harness wiring electrical connector to the MAP sensor. Reinstall the intake manifold sight shield as your final step.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the MAP Sensor on GMC Sierra 1500? Posted by Customer
    A:
    Start the MAP Sensor replacement by removing the intake manifold sight shield. Begin by disconnecting the engine wiring harness electrical connector from the manifold absolute pressure (MAP) sensor followed by removal of the MAP sensor retainer and its removal. Lightly oil the new MAP sensor seal with clean engine oil before installation. Connect the engine harness wiring electrical connector to the MAP sensor after placing the new MAP sensor along with its retainer in position. Reinstall the intake manifold sight shield as the last step.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the final step after securing the MAP sensor for the 2009 Chevrolet Silverado 1500? Posted by Customer
    A:
    Reconnect the engine wiring harness electrical connector to the MAP sensor.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar MAP Sensor
    Q:
    What should be done before installing the new MAP sensor for the 2009 GMC Savana 2500? Posted by Customer
    A:
    Lightly coat the MAP sensor seal with clean engine oil.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar MAP Sensor
    Q:
    What should be done if the MAP sensor seal is damaged for the 2010 GMC Sierra 1500? Posted by Customer
    A:
    Install a NEW MAP sensor seal to the MAP sensor if needed.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar MAP Sensor
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Throttle Position Sensor 12711681 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 12711681 Throttle Position Sensor is available in the market under the name GM MAP Sensor. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 12711681 Throttle Position Sensor fits certain Chevrolet Colorado, Tahoe, Cruze models, as well as GMC Sierra 1500, Yukon, Canyon. Additionally, it is compatible with Cadillac Escalade, CTS, CT5 and Buick Regal, LaCrosse models.
The original GM component designated by manufacturer part number 12711681 maintains top performance when functioning as the Sensor, Computer Control Sensors; MAP Sensor unit. The component 12711681 is constructed from durable material and its dimensions span 6.3 x 4.1 x 2.1 inches while weighing 0.50 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of M.A.P. Sensor; Pressure Sensor; Boost Sensor; Sensor; Sensor, Turbocharger/Supercharger. The part 12711681 has available replacement options 12694725, 12644228, 12594942, 12701247. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
