Question 1

How to replace the Rocker Shaft Spring Kit and Valve Stem Oil Seal on the right side on GMC Acadia?

Accepted Answer

You must start by taking out the Starter motor to replace the valve stem oil seal and valve spring on the right side. Use the flying wheel holding tool en 46106 before starting work because without it you will need to take apart and rebuild the whole cam timing system. You must first remove the camshafts and rocker arms before taking out the Spark Plug from the engine's present cylinder. Attach the j 39313 adapter tool to the cylinder opening and hose it to compressed air for this operation. Place the en 46110 (On-Vehicle Valve Spring Compressor) over the cylinder and turn its valve spring compressor nut clockwise. Release the valve keepers then loosen and comedown the valve spring compression nut to extract both valve spring retainer and springs. The en 46116 tool helps you take out the valve stem seal. First install the new valve stem seals using en 46116 and then place the valve spring and valve spring retainer. Fit the en 46110 over the valve spring and secure its compressor with proper torque. Install the valve spring keepers afterwards. Unplug the j 39313 from the air supply then detach en 46110. Replace spark plugs and install rocker arms before reattaching the camshafts while taking out the en 46106 component and putting back the Starter motor.

Question 2

How to service and repair the valve guide seal, replace the valve stem oil seal, and valve spring on GMC Canyon?

Accepted Answer

Service the Valve Stem Oil Seal while you replace both the Valve Stem Oil Seal and valve spring by starting with a vehicle lift. Slide out the service slot plug then fasten the en 46547 (Flywheel Holding Tool) onto Flywheel teeth before setting the vehicle down. Start by taking off both camshafts plus spark plugs. Position the j-44228-a base plate over the cylinder Spark Plug hole for the service. Insert the j 39313 Spark Plug adapter into the hole then apply steady air pressure to seal the valve. Put the j-44228-a arm assembly over the appropriate stud while handling the strong valve spring compression force. The swivel nut should be tightened lightly to expose valve locks that can be picked off with a magnet. Use the swivel nut tool to loosen the device and redirect the arm to remove both valve spring parts. Push and turn the j 38820 valve stem seal installer to take out the old Valve Stem Oil Seal. Apply engine oil to the valve stem and insert the new seal through the j 38820 before pushing and twisting to install it correctly. Reposition the valve locks by using the j 43059 tool after you tighten the swivel nut only enough for the valve locks access and place the valve spring and valve spring retainer back. Take off the swivel nut and arm of the j-44228-a following this order for any other valve in the cylinder. Lower total system pressure before taking out the j 39313 Spark Plug tool from the hole and removing the j-44228-a base plate. Service all cylinders this way then put back the spark plugs and camshafts. Lower the vehicle while placing the service plug in position then take off the en 46547 tool from the Flywheel teeth before returning the vehicle to its original position.

Question 3

What tools are required to service and repair the valve guide seal, replace the valve stem oil seal, and valve spring on GMC Sierra 1500?

Accepted Answer

Manufacturing requires a Spark Plug port adapter (J22794) and valve spring compressor (J38606) to service and repair the Valve Stem Oil Seal including new Valve Stem Oil Seal and valve spring installation. Remove the Rocker Arm first and disconnect the Spark Plug wire at the Spark Plug with one 1/2 turn on each boot section and a gentle pull. When the engine temperature is at room level you should turn spark plugs one or two turns for brushing or cleaning with compressed air. Position the Spark Plug port adapter j22794 into the Spark Plug hole and connect it to the air hose. Then pass quality compressed air through the adapter to secure the valves. When using valve spring compressor j38606 press down the valve spring and then take out the valve stem keys. Lower the valve spring tension slowly while removing the compressor device. Unbutton the valve spring cap then remove the valve spring plus oil seal and shim set (valve spring, 1, 5). Add clean engine oil to the valve guide and Valve Stem Oil Seal before pressing in the Valve Stem Oil Seal and shim parts (1, 5) with the valve spring and valve spring cap. Feed the valve spring through the valve spring compressor j38606 and slowly release pressure until the valve keys fit into place with valve spring oil to stabilize them in the valve stem groove. Use a valve spring compressor to push the valve pressure off but keep the valve keys in place. Afterward check if the keys require seating by tapping gently with a plastic face hammer. Remove the j22794 adapter and turn the Spark Plug by hand before tightening it to 15 nm (11 ft. Lbs.). Examine and align Spark Plug wires to both the ignition coil and Spark Plug ends while pushing each boot unit to test if it fits properly before replacing missing boots. Finally, install the Rocker Arm.

OEM GMC Valve Stem Oil Seal

40 Valve Stem Oil Seals found

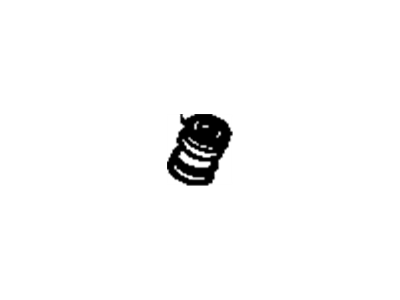

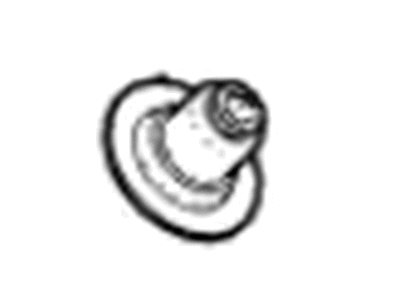

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals

GMC Valve Seals
