How to replace the rear brake line on 2008 Cadillac XLR?

Before starting the work you need to lift up your vehicle and put stabilizers under it. Clean fully the brake pipe fitting and brake hose after you remove their sensor wheel at the rear. Place an appropriate rubber seal over the brake pipe fitting to stop brake fluid leakage and keep it safe. Place a back up tool on the hose while you disconnect the brake pipe end by rotating the brake hose fitting. Install both caps to maintain both pipe end conditions. Undo the hose retainer from the brake hose on its bracket and extract the brake hose from the bracket. You need to remove the brake caliper inlet fitting bolt from the caliper to detach the brake hose. Afterward, get rid of the brake hose gaskets made from copper. Thread new copper brake hose gaskets on both brake caliper inlet fitting and brake hose. Install them bolt tight to 45 n.m (33 lb ft). Seal the brake hose properly into the hose bracket and prevent any bending or twisting. Install the retainer at the brake hose's end on the bracket. Twist the exposed brake pipe fitting apart and join it with brake hose using a back up wrench while tightening it to 13 lb ft with no pipe or bracket bending. Put on the tire and wheel pieces before bleaching the brake system hydraulics and lowering the vehicle into position.

OEM 2008 Cadillac XLR Brake Line

Brake Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Brake Lines found

View related parts

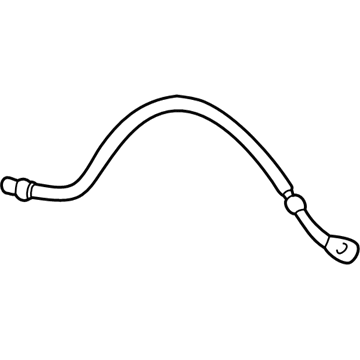

2008 Cadillac XLR Flex Hose, Rear Passenger Side
Part Number: 19366780
$32.06 MSRP: $58.02
You Save: $25.96 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly, Rear Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Rear Passenger Side
- Replaces: 10307426, 15802376, 20989694
- Item Weight: 0.60 Pounds
- Item Dimensions: 3.2 x 2.1 x 17.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19366780
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac XLR Submodels:
- Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac XLR Flex Hose, Front Passenger Side
Part Number: 19370735
Product Specifications
- Other Name: Hose Assembly, Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Passenger Side
- Replaces: 15802378, 19331543
- Item Weight: 1.30 Pounds
- Item Dimensions: 6.2 x 2.1 x 14.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19370735
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac XLR Submodels:
- Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac XLR Flex Hose, Rear Driver Side
Part Number: 19366781
Product Specifications
- Other Name: Hose Assembly, Rear Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Rear Driver Side
- Replaces: 10307425, 15802375, 20989693
- Item Weight: 0.60 Pounds
- Item Dimensions: 3.0 x 2.1 x 17.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19366781
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac XLR Submodels:
- Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
2008 Cadillac XLR Flex Hose, Front Driver Side
Part Number: 19366675
Product Specifications
- Other Name: Hose Assembly, Front Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose, Hydraulic Brake
- Position: Front Driver Side
- Replaces: 15802377, 19331542
- Item Weight: 0.80 Pounds
- Item Dimensions: 6.2 x 2.0 x 14.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19366675
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2008 Cadillac XLR Submodels:
- Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

2008 Cadillac XLR Brake Line

With a comprehensive array of OEM 2008 Cadillac XLR Brake Line, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2008 Cadillac XLR Brake Line are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2008 Cadillac XLR Parts Questions & Experts Answers

Q: How to replace the rear brake line on 2008 Cadillac XLR?
A: Before starting the work you need to lift up your vehicle and put stabilizers under it. Clean fully the brake pipe fitting and brake hose after you remove their sensor wheel at the rear. Place an appropriate rubber seal over the brake pipe fitting to stop brake fluid leakage and keep it safe. Place a back up tool on the hose while you disconnect the brake pipe end by rotating the brake hose fitting. Install both caps to maintain both pipe end conditions. Undo the hose retainer from the brake hose on its bracket and extract the brake hose from the bracket. You need to remove the brake caliper inlet fitting bolt from the caliper to detach the brake hose. Afterward, get rid of the brake hose gaskets made from copper. Thread new copper brake hose gaskets on both brake caliper inlet fitting and brake hose. Install them bolt tight to 45 n.m (33 lb ft). Seal the brake hose properly into the hose bracket and prevent any bending or twisting. Install the retainer at the brake hose's end on the bracket. Twist the exposed brake pipe fitting apart and join it with brake hose using a back up wrench while tightening it to 13 lb ft with no pipe or bracket bending. Put on the tire and wheel pieces before bleaching the brake system hydraulics and lowering the vehicle into position.
