How to replace the front wheel bearing and hub on Cadillac XLR?

You should start hub and Wheel Bearing replacement by putting the vehicle on jacks then supporting it. Detach both the wheel speed sensor harness and the wheel assembly from their installation parts. First pull out the brake caliper and rotor before taking off the stabilizer shaft link from the lower Control Arm. Raise the lower Control Arm using a jackstand for support. Use j 42188 tool to release the connection between the Steering Knuckle's outer tie rod ball stud and lower ball joint stud. Take off the Wheel Hub bolts to pull out the hub and bearing unit from its place in the Steering Knuckle. Put the hub and bearing unit into the Steering Knuckle and bolt it in before you tighten the Wheel Hub bolts to 130 nm (96 ft lbs). Connect the lower Control Arm ball stud and lower the jackstand. Reinstall the ball stud onto the steering linkage then connect the speed sensor harness before joining the stabilizer shaft to the Control Arm. Last you place the brake rotor and caliper onto their position then mount the tire and wheel assembly before lowering the vehicle and monitoring the front wheel toe.

OEM Cadillac XLR Wheel Bearing

Hub Bearing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Wheel Bearings found

View related parts

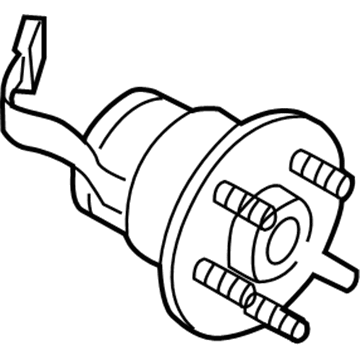

Cadillac XLR Front Hub & Bearing Part Number: 19421349
$235.86 MSRP: $457.77
You Save: $221.91 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing Assembly, Front Wheel; Rear Speed Sensor; Front Speed Sensor; Hub & Bearing Assembly; Front & Rear Wheel Hubs.
- Position: Front
- Replaces: 19208046, 19208047, 13588035
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009 Cadillac XLR | Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

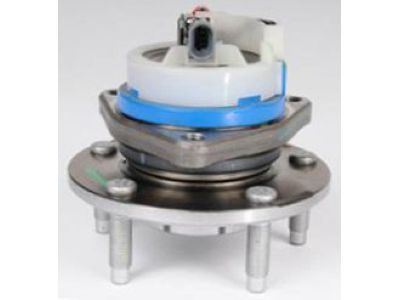

Cadillac XLR Rear Speed Sensor Part Number: 88967288
Product Specifications
- Other Name: Hub, Rear Wheel; Wheel Bearing and Hub Assembly; ABS Sensor.; Hub & Bearing; Hub & Bearing Assembly
- Position: Rear
- Replaces: 07470571, 7470571
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2008 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

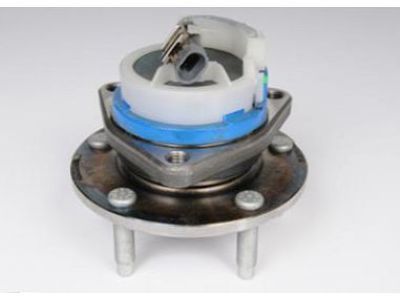

Cadillac XLR Front Hub & Bearing Part Number: 88967287
Product Specifications
- Other Name: Hub Assembly, Front Wheel (W/Bearing & Speed Sensor); Wheel Hub Repair Kit; ABS Sensor.; Hub & Bearing; Front Speed Sensor; Hub, Front Wheel
- Position: Front
- Replaces: 07470569, 7470569
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2008 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

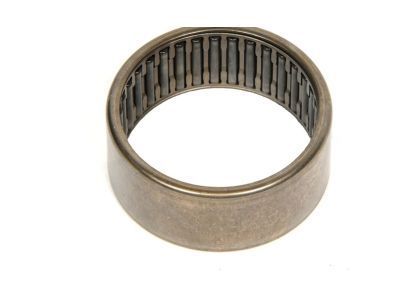

Cadillac XLR Output Shaft Bearing, Rear Part Number: 12458146
Product Specifications
- Other Name: Bearing, Rear Axle Shaft; Wheel Bearing; Axle Bearing; Outer Shaft Bearing
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac XLR | Base, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac XLR Wheel Bearing

Want to cut long-term maintenance and repair costs? Choose OEM Wheel Bearing. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac XLR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac XLR Wheel Bearing includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac XLR Wheel Bearing is one of the most important parts that help boost up the performance and the safety of Cadillac XLR cars. This Wheel Bearing is highly dependable and is used to ensure that the wheels rotate with ease while at the same time aligned in difference with the wheel and tire assembly. Three hub and bearing systems can be found in the Cadillac XLR models made between 2003 and 2009; the most prevalent of which is the case in which the hub and bearing assembly is integrated. It is also worth noting that this assembly often consists of an ABS sensor, which proves the significance of this system for ensuring the safety of transportation. The wheel bearing, too, needs to be inspected from time to time because a worn or damaged wheel bearing could cause noise, vibration and even lead to wheel loss, thus, affecting efficiency and safety. Continued from Designers of the Cadillac XLR have ensured that it has 50/50 weight distribution that combines with advanced Magnetic Ride Control; more importantly, it has the backing of a high-quality Wheel Bearing. Also, Cadillac XLR can be equipped with different configurations such as front-wheel drive configurations that could entail the removal of steering knuckle. Some of the unique attributes of the Cadillac XLR Wheel Bearing are that it is suitable to support high performance and thus sets it top in the car market. Aspiring from the rich tradition of luxury and performance, the Cadillac XLR backed by a very fine Wheel Bearing is still praised for its ride and handling characteristics making it one of Cadillac's flagship models.

Cadillac XLR Wheel Bearing Parts Questions & Experts Answers

Front Hub & Bearing
88967287
Q: How to replace the front wheel bearing and hub on Cadillac XLR?
A:
You should start hub and Wheel Bearing replacement by putting the vehicle on jacks then supporting it. Detach both the wheel speed sensor harness and the wheel assembly from their installation parts. First pull out the brake caliper and rotor before taking off the stabilizer shaft link from the lower Control Arm. Raise the lower Control Arm using a jackstand for support. Use j 42188 tool to release the connection between the Steering Knuckle's outer tie rod ball stud and lower ball joint stud. Take off the Wheel Hub bolts to pull out the hub and bearing unit from its place in the Steering Knuckle. Put the hub and bearing unit into the Steering Knuckle and bolt it in before you tighten the Wheel Hub bolts to 130 nm (96 ft lbs). Connect the lower Control Arm ball stud and lower the jackstand. Reinstall the ball stud onto the steering linkage then connect the speed sensor harness before joining the stabilizer shaft to the Control Arm. Last you place the brake rotor and caliper onto their position then mount the tire and wheel assembly before lowering the vehicle and monitoring the front wheel toe.
