OEM Chevrolet Corvette Oil Pan
Oil Drain Pan- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
15 Oil Pans found

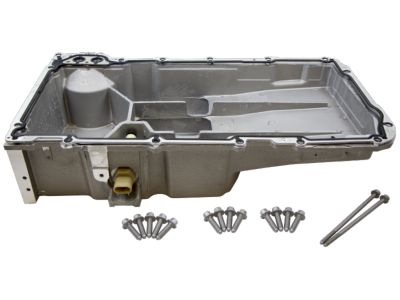

Chevrolet Corvette Oil Pan Part Number: 12679949
$613.86 MSRP: $969.82You Save: $355.96 (37%)Ships in 1-3 Business Days
Chevrolet Corvette Oil Pan Part Number: 12561828
$1649.86 MSRP: $2123.38You Save: $473.52 (23%)Ships in 1-3 Business Days
Chevrolet Corvette Oil Pan Part Number: 12626225
$519.94 MSRP: $821.42You Save: $301.48 (37%)Ships in 1-3 Business Days
Chevrolet Corvette Oil Pan Part Number: 24048641
$179.50 MSRP: $282.38You Save: $102.88 (37%)Ships in 1-3 Business Days
Chevrolet Corvette Oil Pan Part Number: 24046450
$59.25 MSRP: $120.00You Save: $60.75 (51%)Ships in 1-3 Business Days
Chevrolet Corvette Oil Pan Part Number: 12695701
$367.55 MSRP: $578.19You Save: $210.64 (37%)Ships in 1-3 Business Days
Chevrolet Corvette Oil Pan Part Number: 12624617
$384.85 MSRP: $605.54You Save: $220.69 (37%)
Chevrolet Corvette Oil Pan Part Number: 12528503
Chevrolet Corvette Transmission Pan Part Number: 24208593
Chevrolet Corvette Oil Pan Part Number: 14082350
Chevrolet Corvette Oil Pan Part Number: 10225138
Chevrolet Corvette Oil Pan Part Number: 10108584
Chevrolet Corvette Oil Pan Part Number: 10055765
Chevrolet Corvette Oil Pan Part Number: 12696686
$543.59 MSRP: $858.79You Save: $315.20 (37%)Chevrolet Corvette Oil Pan Part Number: 12696685
$613.86 MSRP: $969.82You Save: $355.96 (37%)
Chevrolet Corvette Oil Pan
Want to cut long-term maintenance and repair costs? Choose OEM Oil Pan. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Corvette parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Corvette Oil Pan includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
The Oil Pan is an important chamber of Chevrolet Corvette automobile or any other automobile that helps in effective storing of the lubricant oil as well as assists in the process of lubrication, heat dissipation and washing of its components. Located at the bottom of the motor, Oil Pan stores from four to eight quarts of oil to avoid leakage from the oiling system. Chevrolet Corvette models have had different styles of Oil Pan over the years, use for example the wet sump style. Nonetheless, for performance oriented application the dry sump system of oil circulation where scavenge pumps and swirl tank is adopted to ensure constant availability of oil during high performance or cornering maneuvers. This design also aides in eliminating Oil Starvation problems which are common in standard Oil Pan models including the C5 Corvette which has noted problems in this area.
Chevrolet Corvette Oil Pan Parts and Q&A
- Q: How to service and repair the oil pan on Chevrolet Corvette?A:Start the Oil Pan service work by taking off the front crossmember then draining engine oil through the drain plug before removing the Oil Filter from the pan. Detachment of automatic transmission cooler lines begins by removing the front and rear retaining clamp bolts followed by engine flywheel housing-to-Oil Pan bolts and engine flywheel housing closeout bolts. Begin pan oil service by disconnecting the engine oil level sensor electrical connector along with the engine oil temperature sensor electrical connector. Accessing the Oil Pan assembly requires no lower pan removal and the exclusive use of a new Oil Pan Gasket without rivets. To meet the replacement requirements simply use a new gasket with no rivets installed. Start by removing all Oil Pan bolts before removing the Oil Pan while taking precautions to avoid letting any foreign pieces enter the oil passages. Drilling out Oil Pan retaining rivets followed by gasket removal becomes necessary. Before installation apply gm p/n 12378190 or equivalent sealant as a 5 mm (0.20 inch) bead to the engine block surfaces which need to be clean. Installation requires the Oil Pan (lower) with its gasket and subsequent tightening of the lower Oil Pan bolts (1-15) to 12nm (106 Inch-lbs.) while following a crisscross pattern. First apply sealant to the rear cover gasket tabs before positioning the Oil Pan Gasket on the pan. Then install the engine block components starting with the Oil Pan and its gasket before tightening all bolts by hand. Set the Oil Pan into its proper position before securing the two lower flywheel housing bolts just finger-tight. Apply a moderate torque of 25 nm (18 ft. Lbs.) to the Oil Pan-to-block bolts and Oil Pan-to-Oil Pan front cover bolts simultaneously. Next, tighten the Oil Pan-to-rear cover bolts to 12 nm (106 inch lbs.) and the flywheel housing bolts to 50 nm (37 ft. Lbs.). After reconnecting the engine oil temperature sensor connector you must install the engine oil level sensor with a torque of 35 nm (26 ft. Lbs.). Finish the installation by bolt down the automatic transmission cooler pipe front and rear retaining clamp and the Oil Filter and oil drain plug while tightening each component to its correct torque. After reinstalling the front crossmember workers must check for leaks while filling engine oil and transmission fluid and performing front suspension alignment. This procedure requires four essential tools: j 33432-a transverse leaf spring compressor along with j 42188 ball joint separator and j 41803 engine support fixture and j 28467-b universal engine support fixture.
- Q: How to replace the oil pan on Chevrolet Corvette?A:The process to replace an Oil Pan starts by removing the front suspension crossmember along with the Oil Filter and left rear transmission cover and Starter motor assembly and right transmission cover. Remove the electrical connector of the engine oil level sensor before disconnecting transmission lines from both the front and rear part of the Oil Pan when equipped. Make a start by removing the 2 oil cooler bolts from the assembly before taking apart the oil cooler unit from the Oil Pan. Discard the existing oil cooler seal. Remove all Oil Pan bolts starting with those on the rear then moving onto bell housing bolts before completing with the rest of the pan bolts. Then remove the Oil Pan from the engine block. To gain clearance for the oil pump pickup tube you should turn the Oil Pan. Extract the Oil Pan Gasket which sits on the engine block. During installation it is vital to achieve proper structural Oil Pan alignment because the bolt holes at the rear part serve as mounting points to anchor the transmission housing; the alignment of the rear edge between the Oil Pan and transmission housing must remain flush at all times. A proper installation requires a complete flush between the engine block rear and the Oil Pan rear and no part of the Oil Pan should extend past the block and transmission housing plane. Use of previously used Oil Pan Gasket is never acceptable. A 5 mm (0.2 in) sealant bead should be applied in a 20 mm (0.8 in) length across the engine block surface before placing it on the front and rear cover gasket tabs inside the Oil Pan. Use 2 bolts to secure the Oil Pan Gasket in its position on the Oil Pan while finger tightening the bolts. Use mounting bolts 2 and 3 for the Oil Pan assembly then tighten them to m6 torque (106 lb in) together with bolts m8 (18 lb ft). To install the oil cooler to the Oil Pan use a new oil cooler seal and place two bolts on the cooler then tighten these bolts to 12 n.m (106 lb in). Install the right transmission cover and bolt before you tighten the transmission cover bolt to 12 n.m (106 lb in). Reconnect the engine oil level sensor electrical connector. Secure the front and rear automatic transmission cooler line retainers and bolts with 12 n.m (106 lb in) torque. Install the Starter assembly together with the left rear transmission cover and bolt as well as the Oil Filter and front suspension crossmember.
