How to replace the Parking Brake Shoe on GMC Jimmy?

Start shoe replacement by properly supporting the vehicle while it is in a raised position. Begin the replacement process by removing the wheel together with its tire followed by caliper removal with the rotor. The park brake shoe assembly disengages from the hold down spring after sliding it towards the spring. After disengagement remove the shoe from the actuation mechanism. Clear all debris and dust off the park brake pieces by using a clean towel. Adjust the screw to its complete range in the nut's notches before backing it 1/4 turn while making sure the slots of both components face straight toward the backing plate. Place the new inner shoe on the actuation mechanism by attaching it to the hold down spring. Technicians should inspect the shoe assembly placement on the backing plate to confirm central alignment and slot tip placement. After doing this check manually activate the park brake for normal function and adjust the park brake shoe if needed. Insert the caliper then the rotor and tire and wheel before lowering the vehicle.

How to replace the Parking Brake Shoe on the 25/35 Series on GMC Sierra 3500?

The first step for replacing the park brake shoe on the 25/35 series requires the relaxation of park brake cable tension on the 1500hd through cable reduction in front of the equalizer and equalizer bar detachment and completion of the 25/35 series automatic adjuster disablement. Support the vehicle properly then take off the tire together with the wheel. The procedure for backing plate cable removal involves spring compression toward the lever while depressing locking tabs followed by extracting the cable housing through the plate opening and finally pulling out the cable from its place. Start by removing the park brake cable from the lever then the rotor along with the rear Axle Shaft. The removal process starts by taking out the park brake shoe return spring followed by the park brake shoe anchor springs and pins as well as the separation of tips from park brake actuator to extract the park brake shoes and adjuster assembly. Use a clean shop cloth to clean the park brake components before installing the adjuster assembly to the park brake shoes then spacing the tips of the shoes while fitting them onto the park brake actuator. After attaching park brake shoe anchor springs and pins one must install the park brake shoe return spring and adjust the park brake shoe. Install the rear Axle Shaft and rotor after which you can connect the park brake cable to the lever. To install the cable on the backing plate use a spring-compressing movement towards the lever followed by slotting the cable through the backing plate before pushing the cable housing until the locking tabs activate. After installing the tire and wheel use safety stands to lower the vehicle and turn on the automatic cable adjuster for all models except the 1500hd. The 1500hd requires the park brake cable installation onto the equalizer by pulling the cable down in front of the equalizer and connecting it to the equalizer bar before adjusting the park brake cable.

How to replace the Parking Brake Shoe on GMC Envoy?

Start by freeing the applied park brake and then lift the vehicle. Remove the wheel and tire. The brake caliper along with the mounting bracket remain together during installation by moving them out of the way before securing them on the side. The maintenance starts with removing the brake caliper and bracket (part number: Rear Brake Caliper Bracket Replacement). Afterward the brake rotor requires removal. The park brake cable must detach from its lever so you can pull down the park brake shoe (part number: 2) to let it slip off its hold down spring (part number: 3). You should first lift the shoe away from the backing plate and move it off the actuation mechanism (part number: 1) before removing the shoe around the axle flange and from the vehicle. Follow the procedure of cleaning park brake components with a clean towel, adjust the screw to the notched position before moving it 1/4 turn off home. After making the slots equal on the adjusting screw and tappet to run parallel with the backing plate face, users must clean the rear backing plate surface with denatured alcohol which must then be wiped dry by using filtered non-lubricated air. New shoe part number 2 should go over the axle flange before being set onto the actuation mechanism during installation. Guide the lower shoe end away from the backing plate before sliding it downward onto the top of the hold down spring (part number: 3) while placing the end against the backing plate. Position the shoe installation so its central location on the backing plate includes both tips which fit into the slots of the actuation mechanism (part number: 1). Examine the park brake system functionality by pulling the park brake actuator lever which should activate the mechanism. You must install the park brake cable to the park brake lever before making adjustments to the park brake shoe according to the park brake adjustment guidelines followed by brake rotor installation together with the brake caliper and mounting bracket based on the rear brake caliper bracket replacement instructions. Complete the process by installing the tire along with the wheel before lowering the vehicle.

OEM GMC Parking Brake Shoe

Emergency Parking Brake Shoe

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

31 Parking Brake Shoes found

View related parts

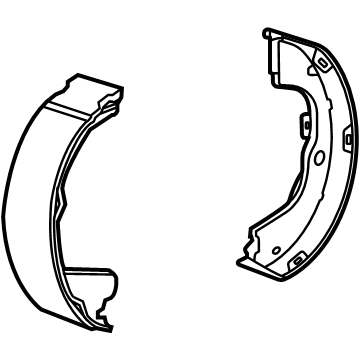

GMC Parking Brake Shoes, Rear
Part Number: 22937747
$61.91 MSRP: $170.21
You Save: $108.30 (64%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe Kit-Rear Parking Brake; Parking Brake Shoe; Shoes; Shoe Kit, Brake
- Position: Rear
- Replaces: 20909250
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

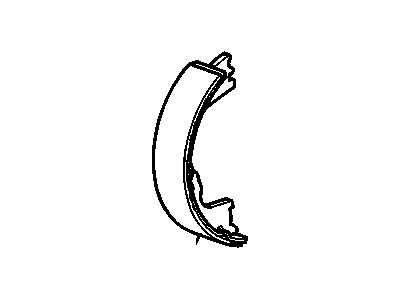

GMC Parking Brake Shoes
Part Number: 88935747
$42.31 MSRP: $79.45
You Save: $37.14 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lining Kit, Parking Brake Shoe; Shoes; Lining Kit, Propeller Shaft Internal Cam And Shoe Brake; Parking Brake Shoe
Fits the following GMC Models:
- Envoy | 2002-2009 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XL | 2002-2006 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XUV | 2004-2005 | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts
GMC Parking Brake Shoes, Rear
Part Number: 22782942
$46.06 MSRP: $89.40
You Save: $43.34 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe Kit-Rear Parking Brake; Parking Brake Shoe; Shoes; Shoe Kit, Brake
- Position: Rear
- Replaces: 15855899
Fits the following GMC Models:
- Acadia | 2007-2016 | Denali, SL, SLE, SLT | 6 Cyl 3.6 L GAS
- Acadia Limited | 2017 | Base | 6 Cyl 3.6 L GAS
View related parts

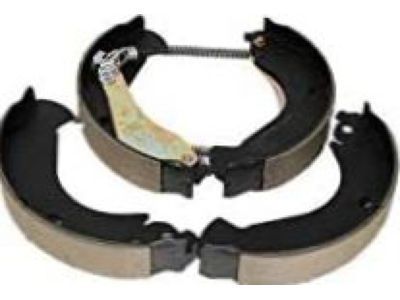

GMC Rear Shoes
Part Number: 19158721
$107.44 MSRP: $196.64
You Save: $89.20 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe Set, Rear Brake; Parking Brake Shoe
- Position: Rear
- Replaces: 19255646
Fits the following GMC Models:
- Canyon | 2007-2008 | SL, SLE, SLT, WT | 4 Cyl 2.9 L GAS, 5 Cyl 3.7 L GAS
View related parts
GMC Shoes, Rear
Part Number: 372379
$45.67 MSRP: $104.52
You Save: $58.85 (57%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe & Facing Unit-Rear Brake; Parking Brake Shoe
- Position: Rear
Fits the following GMC Models:
- C1500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C1500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- Jimmy | 1984-1989 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
View More
View related parts
GMC Shoes, Rear
Part Number: 84786070
$79.13 MSRP: $141.29
You Save: $62.16 (44%)
ADD TO CART
Product Specifications
- Other Name: Shoe Kit-Rear Parking Brake; Parking Brake Shoe; Shoe Kit, Brake
- Position: Rear
Fits the following GMC Models:
- Savana 3500 | 2021-2023 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts

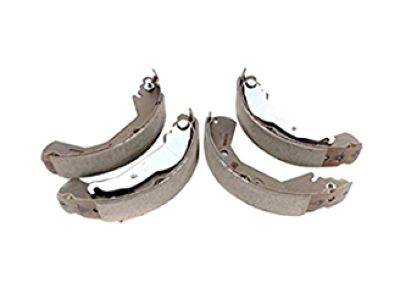

GMC Brake Shoes, Rear
Part Number: 19307565
$75.98 MSRP: $139.05
You Save: $63.07 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe Kit, Rear Brake; Shoe Kit, Propeller Shaft Internal Cam And Shoe Brake; Shoe Kit, Brake
- Position: Rear
- Replaces: 18038882, 18029648
Fits the following GMC Models:
- C1500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C3500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K3500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts

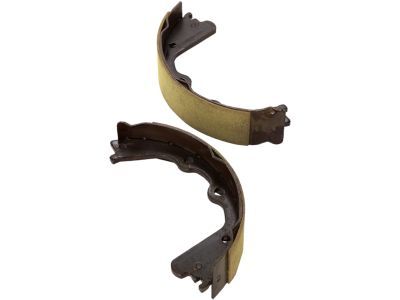

GMC Parking Brake Shoes
Part Number: 96626083
$197.65 MSRP: $383.61
You Save: $185.96 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe Kit, Brake; Parking Brake Shoe; Shoes
- Position: Rear
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
GMC Brake Shoes, Rear
Part Number: 18029651
$121.13 MSRP: $217.28
You Save: $96.15 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe, Rear Brake; Parking Brake Shoe; Shoes; Shoe Kit, Brake
- Position: Rear
- Replaces: 18038884, 19285946
Fits the following GMC Models:
- C1500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C3500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K3500 | 1988-1989 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Parking Brake Shoes, Rear
Part Number: 84523897
$72.34 MSRP: $141.65
You Save: $69.31 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shoe Kit-Rear Parking Brake; Parking Brake Shoe; Shoes; Shoe Kit, Brake
- Position: Rear
Fits the following GMC Models:
- Sierra 2500 HD | 2020-2024 | AT4, AT4X, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2024 | AT4, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts
GMC Brake Shoes, Rear
Part Number: 19256493
Product Specifications
- Other Name: Shoe Kit, Rear Brake; Parking Brake Shoe; Rear Shoes; Shoe Kit, Brake
- Position: Rear
- Replaces: 89058906
Fits the following GMC Models:
- Canyon | 2004-2008 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts
GMC Brake Shoes, Rear
Part Number: 19207735
Product Specifications
- Other Name: Shoe Kit, Rear Brake; Parking Brake Shoe; Rear Shoes; Shoe Kit, Brake
- Position: Rear
Fits the following GMC Models:
- Canyon | 2009-2012 | SLE, SLT, WT | 4 Cyl 2.9 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Repair Kit
Part Number: 89027098
$83.80 MSRP: $149.65
You Save: $65.85 (44%)
Product Specifications
- Other Name: Brake Kit, Rear Parking; Disc Brake Hardware Kit; Drum Brake Hardware Kit; Parking Brake Shoes; Backing Plate Repair Kit; Brake Kit, Parking Brake Shoe
- Position: Rear
- Replaces: 88935743
Fits the following GMC Models:
- Envoy | 2002-2009 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XL | 2002-2006 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XUV | 2004-2005 | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts
GMC Brake Shoes, Rear
Part Number: 25976968
Product Specifications
- Other Name: Shoe Kit-Rear Brake; Parking Brake Shoe; Shoe Kit, Brake
- Position: Rear
- Replaces: 25870982
Fits the following GMC Models:
- Sierra 1500 | 2009-2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
- Sierra 2500 HD | 2009-2013 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2009-2013 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts
GMC Shoes
Part Number: 15817020
Product Specifications
- Other Name: Shoe Kit, Brake; Parking Brake Shoe
- Position: Rear
Fits the following GMC Models:
- Sierra 1500 | 2007-2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon | 2007-2014 | Denali, Denali Hybrid, Hybrid, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 1500 | 2007-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 2500 | 2007-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View More
View related parts
GMC Shoes
Part Number: 1155270
$42.18 MSRP: $75.32
You Save: $33.14 (44%)
Product Specifications
- Other Name: Shoe, Trans Parking Brake (Includes Lining) (11 X 2); Parking Brake Shoe; Shoe Kit, Propeller Shaft Internal Cam And Shoe Brake; Shoe, Driveline Parking Brake
- Replaced by: 18006487
Fits the following GMC Models:
- C1500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C1500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- Jimmy | 1984-1989 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
View More
View related parts
GMC Brake Shoes, Rear
Part Number: 12477878
Product Specifications
- Other Name: Shoe Kit, Rear Brake; Parking Brake Shoe; Shoe Kit, Brake
- Position: Rear
- Replaces: 15665563, 15662505
Fits the following GMC Models:
- C1500 | 1990-1999 | Sierra, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1990-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C2500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1990-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- G1500 | 1992-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G2500 | 1992-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- G3500 | 1992-1996 | Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1990-1999 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View More
View related parts
GMC Brake Shoes
Part Number: 88964441
Product Specifications
- Other Name: Shoe Kit, Rear Brake; Parking Brake Shoe; Shoe Kit, Brake
- Position: Rear
- Replaces: 15662503
Fits the following GMC Models:
- C2500 | 1995-2000 | Sierra SL, Sierra SLE, Sierra SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 | 1995-2000 | Sierra SL, Sierra SLE, Sierra SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC Brake Shoes, Rear
Part Number: 18023341
Product Specifications
- Other Name: Shoe Kit, Rear Brake; Parking Brake Shoe; Shoe Kit, Brake
- Position: Rear
Fits the following GMC Models:
- C1500 | 1988-1999 | Sierra, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C2500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- G1500 | 1992-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G2500 | 1992-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- G3500 | 1992-1996 | Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1999 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View More
View related parts
GMC Brake Shoes, Rear
Part Number: 19256494
Product Specifications
- Other Name: Shoe Kit, Rear Brake; Parking Brake Shoe; Shoe Kit, Brake
- Position: Rear
- Replaces: 19133372, 89059128
Fits the following GMC Models:
- Sierra 1500 | 2005-2008 | Base, Denali, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
- Sierra 1500 Classic | 2007 | Denali, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 HD | 2005-2006 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 1500 HD Classic | 2007 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2005-2008 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 | 2005-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 HD | 2007-2008 | SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More

| Page 1 of 2 |Next >

1-20 of 31 Results

GMC Parking Brake Shoe Parts Questions & Experts Answers

Brake Shoes, Rear
19152704
Q: How to replace the Parking Brake Shoe on GMC Jimmy?
A: Start shoe replacement by properly supporting the vehicle while it is in a raised position. Begin the replacement process by removing the wheel together with its tire followed by caliper removal with the rotor. The park brake shoe assembly disengages from the hold down spring after sliding it towards the spring. After disengagement remove the shoe from the actuation mechanism. Clear all debris and dust off the park brake pieces by using a clean towel. Adjust the screw to its complete range in the nut's notches before backing it 1/4 turn while making sure the slots of both components face straight toward the backing plate. Place the new inner shoe on the actuation mechanism by attaching it to the hold down spring. Technicians should inspect the shoe assembly placement on the backing plate to confirm central alignment and slot tip placement. After doing this check manually activate the park brake for normal function and adjust the park brake shoe if needed. Insert the caliper then the rotor and tire and wheel before lowering the vehicle.
Brake Shoes, Rear
19256494
Q: How to replace the Parking Brake Shoe on the 25/35 Series on GMC Sierra 3500?
A: The first step for replacing the park brake shoe on the 25/35 series requires the relaxation of park brake cable tension on the 1500hd through cable reduction in front of the equalizer and equalizer bar detachment and completion of the 25/35 series automatic adjuster disablement. Support the vehicle properly then take off the tire together with the wheel. The procedure for backing plate cable removal involves spring compression toward the lever while depressing locking tabs followed by extracting the cable housing through the plate opening and finally pulling out the cable from its place. Start by removing the park brake cable from the lever then the rotor along with the rear Axle Shaft. The removal process starts by taking out the park brake shoe return spring followed by the park brake shoe anchor springs and pins as well as the separation of tips from park brake actuator to extract the park brake shoes and adjuster assembly. Use a clean shop cloth to clean the park brake components before installing the adjuster assembly to the park brake shoes then spacing the tips of the shoes while fitting them onto the park brake actuator. After attaching park brake shoe anchor springs and pins one must install the park brake shoe return spring and adjust the park brake shoe. Install the rear Axle Shaft and rotor after which you can connect the park brake cable to the lever. To install the cable on the backing plate use a spring-compressing movement towards the lever followed by slotting the cable through the backing plate before pushing the cable housing until the locking tabs activate. After installing the tire and wheel use safety stands to lower the vehicle and turn on the automatic cable adjuster for all models except the 1500hd. The 1500hd requires the park brake cable installation onto the equalizer by pulling the cable down in front of the equalizer and connecting it to the equalizer bar before adjusting the park brake cable.
Parking Brake Shoes
88935747
Q: How to replace the Parking Brake Shoe on GMC Envoy?
A: Start by freeing the applied park brake and then lift the vehicle. Remove the wheel and tire. The brake caliper along with the mounting bracket remain together during installation by moving them out of the way before securing them on the side. The maintenance starts with removing the brake caliper and bracket (part number: Rear Brake Caliper Bracket Replacement). Afterward the brake rotor requires removal. The park brake cable must detach from its lever so you can pull down the park brake shoe (part number: 2) to let it slip off its hold down spring (part number: 3). You should first lift the shoe away from the backing plate and move it off the actuation mechanism (part number: 1) before removing the shoe around the axle flange and from the vehicle. Follow the procedure of cleaning park brake components with a clean towel, adjust the screw to the notched position before moving it 1/4 turn off home. After making the slots equal on the adjusting screw and tappet to run parallel with the backing plate face, users must clean the rear backing plate surface with denatured alcohol which must then be wiped dry by using filtered non-lubricated air. New shoe part number 2 should go over the axle flange before being set onto the actuation mechanism during installation. Guide the lower shoe end away from the backing plate before sliding it downward onto the top of the hold down spring (part number: 3) while placing the end against the backing plate. Position the shoe installation so its central location on the backing plate includes both tips which fit into the slots of the actuation mechanism (part number: 1). Examine the park brake system functionality by pulling the park brake actuator lever which should activate the mechanism. You must install the park brake cable to the park brake lever before making adjustments to the park brake shoe according to the park brake adjustment guidelines followed by brake rotor installation together with the brake caliper and mounting bracket based on the rear brake caliper bracket replacement instructions. Complete the process by installing the tire along with the wheel before lowering the vehicle.
