How to Replace the Coil Springs (FE7) on Cadillac DTS?

The coil spring (FE7) replacement process starts by lifting the vehicle and providing support and finishing by removing the tires and wheels. First firmly support the Control Arm through the use of an appropriate jack before disconnecting the electronic level control air tube that runs to the shock. First remove the hex nut along with the two bolts holding the shock to the Control Arm then proceed to dismantle the hex nut. Apply the steering linkage puller tool (J 24319-B) before installing the coil spring compressor (J 44255). Use the support assembly to drop the Control Arm before you can remove the coil spring from the setup. Begin by placing the new coil spring inside the coil spring compressor (J 44255) with correct placement of the insulator into the Control Arm's seating. Ascend the lower Control Arm then bolt in the two shock mounts and torque them to 25 n.m (18 lb ft). Install the adjustment link on the Control Arm by tightening it to 30 n.m (22 lb ft) followed by an additional 180 degrees of torque. Reconnect the electronic level control air tube to the shock and reinstall the tires and wheels before securing the wheel nuts to 125 n.m (80 lb ft). Before lowering the vehicle check the toe then perform adjustments if required.

OEM Cadillac DTS Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Coil Springs found

View related parts

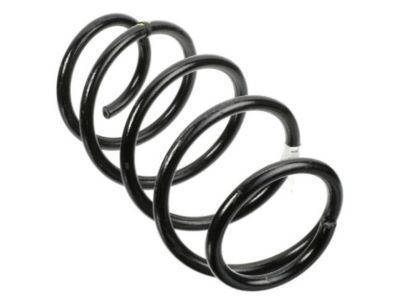

Cadillac DTS Coil Spring, Front Part Number: 15781812
$67.18 MSRP: $119.97
You Save: $52.79 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Front Chassis; Coil Springs; Spring
- Position: Front
- Replaces: 15781811
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts

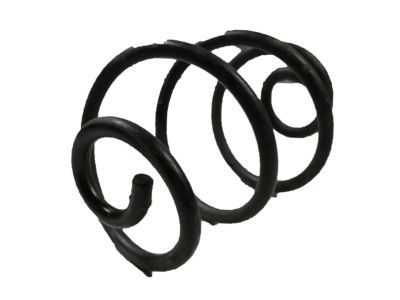

Cadillac DTS Coil Spring, Rear Part Number: 25910862
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Replaces: 10390208
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Coil Spring, Rear Part Number: 25910861
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Replaces: 10390207
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Coil Spring, Rear Part Number: 25910860
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Replaces: 10390206
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Coil Spring, Rear Part Number: 25910859
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Replaces: 10390205
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Coil Spring, Rear Part Number: 25910858
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Replaces: 10390204
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS

Cadillac DTS Coil Springs

Want to cut long-term maintenance and repair costs? Choose OEM Coil Springs. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DTS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DTS Coil Springs includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Coil Springs used in Cadillac DTS automobiles are an imperative part of the suspension system to bear the load of the automobile and to eliminate jerk due to irregularities of road. These parts keep the vehicles at the right height and ensure that they do not develop some of the characteristics such as saggins, bottom outs and abnormal tire wears. Coil springs degrade with use, and there are replacement services where one can get OEM rate or variable rate or cargo coils if you are a heavy payload user. Coil spring types include linear rate, progressive, and dual rate with the three varying in stiffness and performance. Linear rate springs offer exactly proportional force to the compression while progressive springs use coils which are compressed in varied measures in order to get a smoother ride. As for dual rate springs, these contain two rates, so as to achieve better performance. Also, the coilovers are variable, and height adjustable springs help in the fine tuning of ride height due to the changes in wheels and tires. All in all, it can be agreed that Cadillac DTS coil springs have a very important duty of maintaining a standard car stability while providing a comfortable ride.

Cadillac DTS Coil Springs Parts Questions & Experts Answers

Coil Spring, Front
15781812
Q: How to Replace the Coil Springs (FE7) on Cadillac DTS?
A:
The coil spring (FE7) replacement process starts by lifting the vehicle and providing support and finishing by removing the tires and wheels. First firmly support the Control Arm through the use of an appropriate jack before disconnecting the electronic level control air tube that runs to the shock. First remove the hex nut along with the two bolts holding the shock to the Control Arm then proceed to dismantle the hex nut. Apply the steering linkage puller tool (J 24319-B) before installing the coil spring compressor (J 44255). Use the support assembly to drop the Control Arm before you can remove the coil spring from the setup. Begin by placing the new coil spring inside the coil spring compressor (J 44255) with correct placement of the insulator into the Control Arm's seating. Ascend the lower Control Arm then bolt in the two shock mounts and torque them to 25 n.m (18 lb ft). Install the adjustment link on the Control Arm by tightening it to 30 n.m (22 lb ft) followed by an additional 180 degrees of torque. Reconnect the electronic level control air tube to the shock and reinstall the tires and wheels before securing the wheel nuts to 125 n.m (80 lb ft). Before lowering the vehicle check the toe then perform adjustments if required.
