GM 89023365
Fan Shroud

2005-2007 GM

Customer Questions & Expert Answers (10)
GM 89023365 Fan Shroud
  • Part Description
    Shroud Kit, Engine Electrical Coolant Fan; Cooling Fan Assembly
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

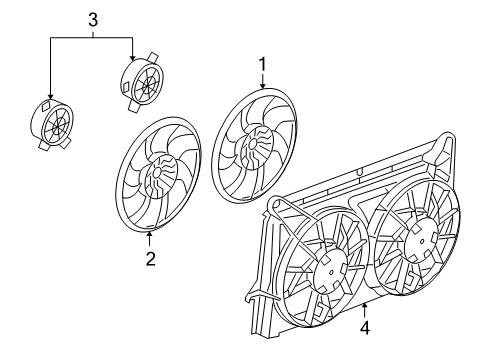

  • 89023365 Fan Shroud is Ref No. 4 in the diagram below

    2006 Cadillac Escalade EXT Fan Shroud Diagram for 89023365
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 89023365

  • Vehicle Fitment

    Year Make Model Trim Engine
    2005-2006 Cadillac EscaladeBase8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2005-2006 Cadillac Escalade EXTBase8 Cyl 6.0 L GAS
    2005-2006 Chevrolet Avalanche 1500Base, LS, LT, Z66, Z718 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
    2005-2006 Chevrolet Avalanche 2500LS, LT8 Cyl 8.1 L GAS
    2005-2007 Chevrolet Silverado 1500Base, Hybrid, LS, LT, LTZ, WT, Z71 Off-Road6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS
    2007 Chevrolet Silverado 1500 ClassicHybrid, LS, LT, WT6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS
    2005-2006 Chevrolet TahoeBase, LS, LT, Z718 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
    2005-2007 GMC Sierra 1500Base, Hybrid, SL, SLE, SLT, WT6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS
    2007 GMC Sierra 1500 ClassicHybrid, SL, SLE, SLT, WT6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS
    2005-2006 GMC YukonDenali, SL, SLE, SLT8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is 89023365 compatible with my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 89023365 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the upper fan shroud (w/RPO M74) on Cadillac Escalade EXT? Posted by Customer
    A:
    You must start the duration of upper Fan Shroud installation by easing the duct clamps from Throttle Body and mass airflow sensor on the air cleaner outlet duct before removing the duct. First disconnect the a/c line retainer that sits on the Fan Shroud after which you should disconnect the engine harness clip from the pcm cover. Start by removing the bolts of the transmission central module (TCM) cover and the tcm cover from the Fan Shroud followed by loosening the tcm electrical connector bolts for disconnecting the tcm electrical connectors. Start by removing the tcm unit together with its cover before uninstalling the Fan Shroud retainers and bolts for complete upper Fan Shroud removal. Install the upper Fan Shroud in its proper position before tightening Fan Shroud bolts to 9 nm (80 inch lbs.). Following this installation sequence, attach the Fan Shroud retainers then join the tcm electrical connectors and finally place the tcm and cover into position by securing the tcm electrical connector bolts at 8 nm (71 inch lbs.). Fasten the tcm cover onto the Fan Shroud through bolts that you need to tighten up to 9 nm (80 inch lbs.). Install the engine harness clip on the pcm cover as well as the a/c line retainer on the Fan Shroud and the air cleaner outlet duct. The air cleaner outlet duct clamp at the Throttle Body requires tightening to 4 nm (35 inch lbs.) as does the clamp screws at the mass airflow sensor.
    Posted by ChevyPartsGiant Specialist
    Q:
    How do you disengage the lower fan shroud for the 2005 Cadillac Escalade EXT? Posted by Customer
    A:
    Lift the lower fan shroud to disengage it from the retaining clips on the radiator.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    Q:
    What should be done after installing the lower fan shroud if applicable for the 2006 Chevrolet Silverado 1500? Posted by Customer
    A:
    Reattach the oil cooler hose clip to the lower fan shroud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    Q:
    What is the next step after detaching the oil cooler hose clip for the 2007 Chevrolet Silverado 1500 Classic? Posted by Customer
    A:
    Lift the lower fan shroud to disengage it from the retaining clips on the radiator.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    Q:
    How do you begin the installation of the upper fan shroud for the 2006 Chevrolet Silverado 1500? Posted by Customer
    A:
    Begin by placing the upper fan shroud in position and ensure to follow the fastener notice for proper precautions.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    Q:
    What is the final step regarding the air cleaner outlet duct for the 2005 Chevrolet Tahoe? Posted by Customer
    A:
    Reinstall the air cleaner outlet duct, tightening the clamp at the throttle body to 4 Nm (35 inch lbs.) and the clamp at the mass airflow sensor to the same torque specification.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    Q:
    What should be done after removing the air cleaner outlet duct for the 2006 GMC Sierra 1500? Posted by Customer
    A:
    Next, detach the A/C line retainer from the fan shroud and remove the engine harness clip from the powertrain control module (PCM) cover.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    Q:
    What is the first step to replace the Engine Coolant Fan Upper Shroud for the 2007 GMC Sierra 1500 Classic? Posted by Customer
    A:
    First, loosen the air cleaner outlet duct clamps from the throttle body and mass airflow sensor, then remove the air cleaner outlet duct.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    Q:
    What should be reinstalled after placing the upper fan shroud for the 2005 GMC Sierra 1500? Posted by Customer
    A:
    Reinstall the fan shroud retainers, and if equipped, attach the inlet radiator hose retainer and the throttle body heater hose retainer to the fan shroud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fan Shroud
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Fan Shroud 89023365 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 89023365 Fan Shroud is available in the market under the name GM Fan Shroud. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 89023365 Fan Shroud fits certain Chevrolet Tahoe, Silverado 1500, Avalanche 1500 models, as well as GMC Sierra 1500, Yukon, Sierra 1500 Classic. Additionally, it is compatible with Cadillac Escalade, Escalade EXT models.
The original GM component designated by manufacturer part number 89023365 maintains top performance when functioning as the Shroud Kit, Engine Electrical Coolant Fan; Cooling Fan Assembly unit. The component 89023365 is constructed from durable material and its dimensions span 41.6 x 23.7 x 9.4 inches while weighing 6.40 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Shroud; Shroud Kit, Radiator Fan Shroud. The part 89023365 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
