GM 12630084

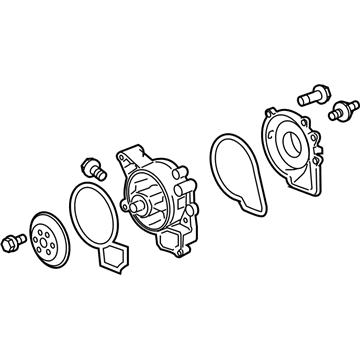

Water Pump, Green Line

Begin by lifting and stabilizing your vehicle before the replacement work starts. Unbolt and pull out the right engine shield to access the Water Pump access plate and pump seal before disposing them. Release Water Pump fluid by removing the bottom plug. Twist the Thermostat Housing and radiator outlet pipe free while you slowly pull them from the back part of Water Pump housing. Attach the j 43651 (Water Pump Holding Tool) correctly in position before screwing its bolts into the Water Pump sprocket threads. Position the Water Pump holding tool onto the front cover assembly through its access cover bolts. Take off the Water Pump sprocket bolts from both sides and in between the pump then unscrew the two front bolts and two rear bolts. Extract the pump alone while discarding the rubber seal. Put a brand new o-ring seal on the Water Pump before adding the new component and create an alignment guide using an m 6 m x 6 mm stud. Position the Water Pump against the engine block and tighten it manually by hand at both front and rear bolts. Utilize the Water Pump sprocket bolts to install three inner pieces then take out guide pin and put in final bolt after parts are set in their positions. Secure Water Pump bolts at the front and rear with 25 nm torque and the Water Pump sprocket bolts with 10 nm torque. Install the Water Pump access plate and bolts with new seal while tightening the bolts to 10 nm (89 lb in) force. Replace the j 43651 (Water Pump Holding Tool). Use new o-rings on the radiator outlet and secure the Thermostat Housing while replugging the right engine shield. Install the Water Pump access plate and bolts with a new seal before lowering the vehicle. When refilling the coolant system check for any fluid leaks.

For 2.2l l61 engine Water Pump replacement you need the Water Pump holding tool (J 43651) plus other tools. Start your repair by taking off the Exhaust Manifold when working on automatic transmission vehicles and emptying the cooling system. Lift your car then start by taking off the wheel from the right front side and removing the fender liner. Install the Water Pump holding tool as indicated (J 43651) on the Water Pump sprocket and bolt it to the engine front cover using the access plate. Arrange tools and safety equipment before removing the Water Pump bolts in this exact order: first unfasten the sprocket attachment bolts, then take away the engine block tie, and lastly unfasten the front cover to pump tie. Disconnect the feed pipe from its connection to the Thermostat Housing but do not remove the two bolts holding the Water Pump to the engine block until removing the Water Pump entirely. Thread the Water Pump hub onto the stud to place the new pump over the sprocket before fastening it into position. Tighten the two bolts connecting the Water Pump to the engine block evenly until they reach 20 nm (15 ft. Lbs. Torquerealty. Secure the feed pipe to its place then install both engine front cover bolts. Tighten the assembly to 20 Nm (15 ft. Lbs.). Mount the Water Pump sprocket bolts and eliminate the threaded stud before fitting the final bolt and tightening to 10 nm (89 inch lbs.). Put back the Water Pump holding tool j43651 then put the access plate against the Timing Cover and fasten the bolts at 10 nm. Complete the process by placing back the front fender liner, right front tire assembly with wheel, and Exhaust Manifold when necessary and refill the cooling system.

Replacement begins with Exhaust Manifold removal when the vehicle runs on automatic transmission. Start by emptying the cooling system and then securely raise the vehicle for work. Take out the right front tire first with its wheel. Afterward handle the front fender liner displacemnt. You need to remove the cover that gives access to the Water Pump sprocket on the Timing Cover. Set the Water Pump holding tool part j 43651 to the Water Pump sprocket and position it on the engine front cover through the access plate bolts. Unfasten Water Pump sprocket bolts to extract them and afterwards detach the engines block to Water Pump bolt followed by the engine front cover to Water Pump bolt. Before removing the Water Pump disconnect both its connections: the Water Pump to Thermostat Housing feed pipe and two engine block bolts. Thread the stud through the Water Pump sprocket hub and pump to line them up before installing the Water Pump. Secure the Water Pump against the engine block through the 2 bolts and fasten them to 20 nm (15 ft. Lbs.). Install the feed pipe first before bolting on the engine front cover using both bones and tightening them to 20 nm (15 ft. Lbs.). Place the last bolt into the Water Pump sprocket before taking off the threaded stud and bolt the sprocket to the Water Pump at 10 nm (89 inch lbs.). Put the Water Pump holding tool j 43651 aside then clamp the access plate onto the Water Pump sprocket to the Timing Cover and secure it with bolts which need tightening to 10 nm (18 inch lbs.). After that reinstall the front fender liner, right front tire and wheel together with the Exhaust Manifold when needed before adding cooling liquid.

A 2.2l l61 engine Water Pump replacement requires using the Water Pump holding tool (J 43651) as your essential tool. When handling an automatic transmission vehicle start with the Exhaust Manifold removal before draining the cooling system. First elevate the vehicle, then unscrew the tire and wheel from the right front along with the front fender liner. Insert the Water Pump holding tool (J 43651) onto the Water Pump sprocket. Secure this tool using the access plate bolts into the engine front cover. Separate the Water Pump from its sprocket through bolt removal, then free the engine block and engine front cover respectively from Water Pump hardware. First remove the Water Pump feed socket from the Thermostat Housing before taking out both bolts from the engine block and finally extracting the Water Pump itself. Mount a threaded stud onto the Water Pump sprocket then place the new Water Pump onto it accordingly. Fasten the Water Pump onto the engine block using 2 bolts and tighten them to 20 nm before adding the feed pipe together with engine front cover components while keeping all bolt torques at 20 nm. Secure the Water Pump sprocket with two bolts and take out the threaded stud. Reinsert a bolt to tighten it to 10 nm (89 inch lbs). Place the access plate on the Water Pump sprocket Timing Cover before adding bolts that should tighten to 10 nm (18 inch pounds). Replace the front fender liner and install the right front wheel before putting back the tire and the exhaust if used. Finally, fill the cooling system.

Before starting the Water Pump replacement process collect the Water Pump holding tool (J 43651) as well as other essential tools. First take off the Thermostat Housing then remove the Water Pump access plate from the front cover and the right-hand fender liner. Release the Water Pump coolant through its Drain Plug at the pump bottom base. Install the Water Pump holding tool j 43651 onto the Water Pump sprocket for safe working conditions while replacing the pump parts. Secure the tool to the front cover assembly by reinstalling the access cover bolts. Loosen the three bolts between the Water Pump sprocket and pump before disengaging the front and rear engine block bolts. Extract the Water Pump from the system in the end. Throw away the damaged Water Pump o-ring seal. Set a fresh Water Pump o-ring seal first before creating the guide pin from an m6 m x 6 mm stud to assist positioning with the Water Pump holding tool. Press the new Water Pump against the engine block and partially tighten its bolts by hand. Put in two inner Water Pump sprocket bolts partially and take out the guide pin before adding the last bolt. Use a torque wrench to first set all Water Pump bolts at 25 nm and then add a final 10 nm tension to the Water Pump sprocket bolts. Put back the Water Pump holding tool j 43651 and reset the Water Pump access plate before fixing the right-hand fender and Thermostat Housing in place.

Begin by taking off the air cleaner and removing the Thermostat Housing to access the Water Pump (LNF). Start by removing the Water Pump access plate from the front cover and empty the coolant from the Water Pump using the Drain Plug at its base. You must secure the j 43651 Water Pump holding tool to service the sprocket and chain assembly by engaging with the access cover bolts. You need to take out the Water Pump after detaching its three inner sprocket bolts and two sole pump bolts alongside the back two pump bolts. Dispose of the o-ring seal with the Water Pump. Use the fresh o-ring to seal the Water Pump while aligning it using a guide pin made from an m 6 m x 6 mm stud. After placing the Water Pump on the engine block turn the bolts by hand and put on the inner sprocket bolts before tightening them to 25nm at 18lbft with snaps of 2 threads on either side. After install the Water Pump access plate with bolts and torque them to 10 nm before removing the j 43651 tool. Set the Water Pump assembly and air cleaner setup when you finish work.

Before you work on the Water Pump l61 you must empty the coolant system. Set the sprocket and chain in the correct position by using the Water Pump holding tool (J 43651) before starting service. Take out the bolts linking thermostat pipe to cylinder unit and remove exhaust manifold shield plates from top and bottom. Disconnect the Water Pump access panel plus right-hand wheel assembly unit. Shutdown the internal push-pins and get rid of the splash shield parts. Detach the engine Coolant Temperature Sensor wiring and go ahead with Water Pump Drain Plug removal for additional fluid removal. Move the thermostat housing left while twisting its bolts to detach the water feed pipe but leave coolant hoses and housing cover joined. Set the water pipe seals apart and add the Water Pump holding tool (J 43651) to the Water Pump sprocket before tightening its bolts. Fasten the Water Pump tool while tightening the cover bolts followed by the removal of both engine block retaining bolts and sprocket bolts from within the Water Pump. Disconnect the Water Pump unit including its o-ring seal. First read through all steps of the procedure to prevent Water Pump re-timing problems during installation. Use a new Water Pump seal then make an alignment guide using an m6 m x 6 mm bolt. Put the Water Pump assembly against the engine block surface and start the bolts by hand. Replace the inner Water Pump sprocket bolts by removing the guide pin after tightening the first two bolts. Then apply 25 nm (18 ft. Lbs.) torque to all Water Pump bolts. Use a 10nm torque wrench to fasten and then take out the Water Pump holding tool (J43651) after tightening the Water Pump socket bolts. Fix the Water Pump access plate onto its position with bolts that require tightening to 10 nm (89 inch lbs). Apply silicone gel to the water feed pipe seals then put on a fresh o-ring seal and check that the thermostat housing block seal remains in place. Fit the water supply hose into the assembly while maintaining proper alignment to the thermostat opening then insert the o-ring seal gently. Set the thermostat housing on the engine space and secure the bolts at 10 nm torque (89 inch lbs). Rejoin the Coolant Temperature Sensor before attaching the inner splash shield with push pins and lastly the right-hand wheel assembly together with its wheel nuts at 125 nm (92 ft. Lbs.). Set the vehicle to its normal height before attaching the thermostat pipe bracket to the cylinder head bolt at 8 nm (71 inch lbs.) and placing the exhaust manifold heat shield bolts which need torqueing to 23 nm (17 ft. Lbs.). Check the vehicle level while closing all drain valves then fill the engine coolant system and look for any fluid leaks.

You should begin work by setting aside the air cleaner and Thermostat Housing before handling the Water Pump (LAF). You need to remove the Water Pump access plate from the front cover to drain the coolant through its bottom Drain Plug. Use the j 43651 Water Pump holding tool to support service operations while keeping it anchored by the access cover bolts. Loosen and take off three bolts at the center of the Water Pump sprocket before removing two bolts from the Water Pump housing. Then you can remove all bolts at the rear of the Water Pump assembly. Install and discard the o-ring seal with the Water Pump. Add a fresh Water Pump seal between the pump and engine block and make a guiding tool from an m 6 m x 6 mm threaded rod for proper installation alignment. Insert the Water Pump onto its engine block position before tightening bolts by hand and secure the sprocket internal parts with 25 nm torque. After installing the sprocket bolts at 10 nm (89 lb in) torque tighten the Water Pump holding tool j 43651 and reinstall both Water Pump access plate bolts at 10 nm (89 lb in). Install the Water Pump thermos stat and air filter cover at the end of the process.

Take out the water pump and discard the O-ring seal.

Remove the coolant pump bolts to take out the coolant pump along with the gasket.

Remove the Water Pump Holding Tool (J 43651), install the access plate on the water pump sprocket to the timing cover, secure it with bolts, tightening them to 10 Nm (18 inch lbs.), then reinstall the front fender liner, the right front tire and wheel, and the exhaust manifold if applicable, and fill the cooling system.

Remove the Water Pump Holding Tool (J 43651), install the access plate on the water pump sprocket to the timing cover, and secure it with bolts tightened to 10 Nm (18 inch lbs.).

Install a new water pump O-ring seal and create a guide pin using an M6 m x 6 mm stud for alignment.

Install the feed pipe and the engine front cover bolt, also tightened to 20 Nm (15 ft. lbs.).

Position the water pump against the engine block and hand tighten the front and rear water pump bolts.

Discard the old water pump O-ring seal.

Align the pin with the water pump holding tool, position the water pump against the engine block, and hand tighten the water pump bolts.

Position the water pump assembly against the engine block and hand tighten the bolts.

Remove the thermostat housing and coolant heater, followed by the water pump access plate from the front cover.

Hand tighten the water pump bolts, install the inner water pump sprocket bolts, snug two before removing the guide pin and installing the third bolt, then tighten all water pump bolts to 25 N.m (18 lb ft) and the water pump sprocket bolts to 10 N.m (89 lb in).

Reinstall the coolant heater, windshield washer solvent container, and thermostat housing.

Use the J 43651 (Water Pump Holding Tool) to support the sprocket and chain, ensuring the balance shaft is not re-timed.
