How to replace the lower control arm on Cadillac SRX?

To replace the lower Control Arm, raise and support the vehicle, take off the tire and the wheel. Then, remove the air deflector and the shock module yoke from the lower Control Arm. It is of prime importance that the ball stud should not rotate when being disassembled and assembled. Apply hand tools to stop rotation because air tools can lead to damage. Take off the stabilizer shaft link lower retaining nut and remove the stabilizer shaft link from the lower Control Arm. Remove the abs wire harness and the lower Control Arm nut to steering knuckle. Use the j 43631 (Ball Joint Remover) to disconnect lower Control Arm from the steering knuckle raising the power steering gear for clearance when removing rear lower Control Arm to frame securing bolt. Loosen the retaining bolts of the power steering gear, then remove the lower contral arm to cradle nuts and bolts. Lower the Control Arm from the frame while lifting up the ball stud to have the ball stud removed. To install, align the lower Control Arm with the ball stud and raise it to the cradle then bolt the cradle. These cradle nuts, tighten them to 135 nm (96 lb ft), do the same for the power steering gear retaining bolts 180 nm (133 lb ft). Reinstall the lower Control Arm to steering knuckle nut, tightening it 40 nm (30 lb ft), and an additional 120 degrees. Reassemble the abs wire harness and the stabilizer shaft link; fasten the lower retaining nut to 115 nm (95 lb ft). Link the shock module yoke with the lower Control Arm, the air deflector, and the tire and wheel. Lastly, depress the vehicle and carry out front end alignment.

OEM Cadillac SRX Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Control Arms found

View related parts

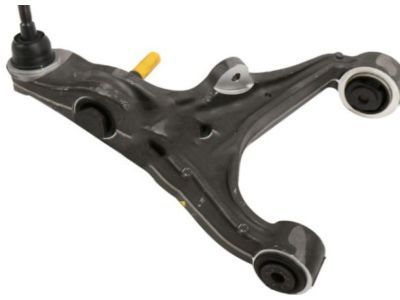

Cadillac SRX Lower Control Arm, Driver Side Part Number: 25862781
$254.69 MSRP: $406.96
You Save: $152.27 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 15270101, 15921069, 25765776, 15806921, 25764671
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts

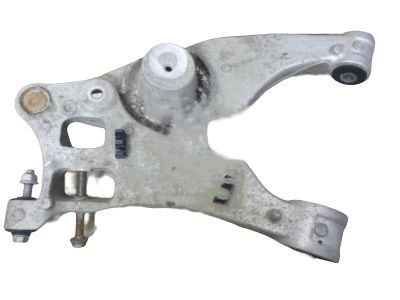

Cadillac SRX Lower Control Arm, Passenger Side Part Number: 22979576
$292.22 MSRP: $497.48
You Save: $205.26 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.; Arm, Steering Knuckle Lower Control
- Position: Passenger Side
- Replaces: 20838573, 20928343, 20903480, 22833483
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

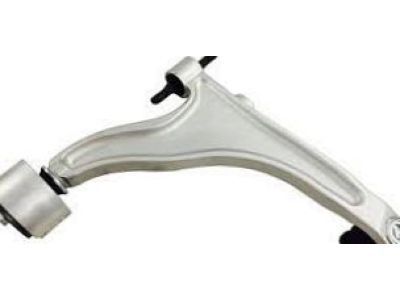

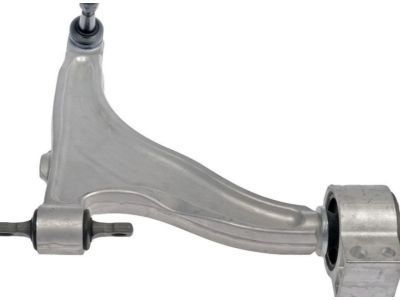

Cadillac SRX Lower Control Arm, Driver Side Part Number: 22979575
$292.22 MSRP: $497.48
You Save: $205.26 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.; Arm, Steering Knuckle Lower Control
- Position: Driver Side
- Replaces: 20903481, 20838574, 20928344, 22833484
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

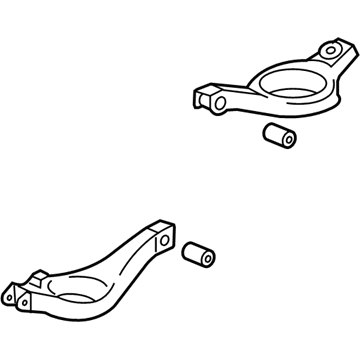

Cadillac SRX Lower Control Arm, Rear Driver Side Part Number: 15853188
$246.48 MSRP: $406.05
You Save: $159.57 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm and Ball Joint Assembly; Control Arm Assembly; Control Arm
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

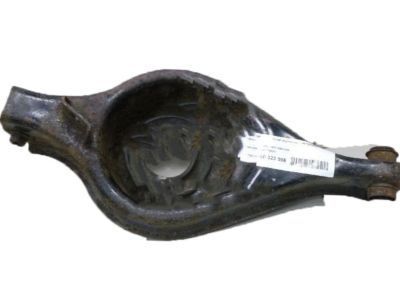

Cadillac SRX Lower Control Arm, Rear Passenger Side Part Number: 15853187
$246.48 MSRP: $406.05
You Save: $159.57 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm and Ball Joint Assembly; Control Arm Assembly; Control Arm
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Upper Control Arm, Rear Passenger Side Part Number: 15267620
$124.73 MSRP: $198.03
You Save: $73.30 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm and Ball Joint Assembly; Control Arm Assembly; Control Arm
- Position: Rear Passenger Side
- Replaces: 25766118
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Upper Control Arm, Rear Driver Side Part Number: 15267619
$121.39 MSRP: $199.96
You Save: $78.57 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm and Ball Joint Assembly; Control Arm Assembly; Control Arm
- Position: Rear Driver Side
- Replaces: 25766117
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Lower Control Arm, Passenger Side Part Number: 25862782
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15806922, 15921070, 15270102, 25764672, 10399362, 25765777
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Lower Control Arm, Rear Passenger Side Part Number: 25768321
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Lower Control Arm, Rear Driver Side Part Number: 25768320
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Trailing Arm, Rear Passenger Side Part Number: 25721399
Product Specifications
- Other Name: Arm, Rear Suspension Trailing; Arm, Rear Axle Control Arm
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Trailing Arm, Rear Driver Side Part Number: 25716358
Product Specifications
- Other Name: Arm, Rear Suspension Trailing; Arm, Rear Axle Control Arm
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS

Cadillac SRX Control Arm

Want to cut long-term maintenance and repair costs? Choose OEM Control Arm. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Control Arm includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac's effecting mid-size luxury SUV, the Cadillac SRX possesses a Control Arm, which is a significant improvement to the vehicle. Thus, connecting the frame of the car with the wheels, the Control Arm is responsible for the suspension's vertical movement and helps the Cadillac SRX to react for the irregularities of the ground. Being available in the traditional stamped steel design, as well as in the stunning cast iron and even aluminum derivatives, the Control Arm is designed to be strong while it is non-heavy at the same time- an important feature in the contemporary market space for automobile spare parts. Stamped steel options are very robust, though one often notices that the component is railed due to rusting, which in turn may hinder performance. However, the modern Control Arm designs are considerably incorporates high-tech materials such as DOM tubular steel and chrome moly for the Cadillac SRX and increases the durability and performance. This is especially vital for correct wheel positioning and free from any distortion with regard to handling, tire in addition to providing the vehicle efficiency and safety. This Control Arm can fit into different models of the SRX car of two generations, and it plays an important role of providing an excellent driving experience. Other specifications of Cadillac SRX like interior, safety features added to the prerequisites to Control Arm in delivering safe and comfortable ride. Nowadays Cadillac SRX control arm is considered as one of the model's most reliable and high-performing elements, and it is a very important part of Cadillac SRX reputability.

Cadillac SRX Control Arm Parts Questions & Experts Answers

Lower Control Arm, Driver Side
25862781
Q: How to replace the lower control arm on Cadillac SRX?
A:
To replace the lower Control Arm, raise and support the vehicle, take off the tire and the wheel. Then, remove the air deflector and the shock module yoke from the lower Control Arm. It is of prime importance that the ball stud should not rotate when being disassembled and assembled. Apply hand tools to stop rotation because air tools can lead to damage. Take off the stabilizer shaft link lower retaining nut and remove the stabilizer shaft link from the lower Control Arm. Remove the abs wire harness and the lower Control Arm nut to steering knuckle. Use the j 43631 (Ball Joint Remover) to disconnect lower Control Arm from the steering knuckle raising the power steering gear for clearance when removing rear lower Control Arm to frame securing bolt. Loosen the retaining bolts of the power steering gear, then remove the lower contral arm to cradle nuts and bolts. Lower the Control Arm from the frame while lifting up the ball stud to have the ball stud removed. To install, align the lower Control Arm with the ball stud and raise it to the cradle then bolt the cradle. These cradle nuts, tighten them to 135 nm (96 lb ft), do the same for the power steering gear retaining bolts 180 nm (133 lb ft). Reinstall the lower Control Arm to steering knuckle nut, tightening it 40 nm (30 lb ft), and an additional 120 degrees. Reassemble the abs wire harness and the stabilizer shaft link; fasten the lower retaining nut to 115 nm (95 lb ft). Link the shock module yoke with the lower Control Arm, the air deflector, and the tire and wheel. Lastly, depress the vehicle and carry out front end alignment.
