OEM GMC Transfer Case Seal

Transfer Case Output Shaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

38 Transfer Case Seals found

View related parts

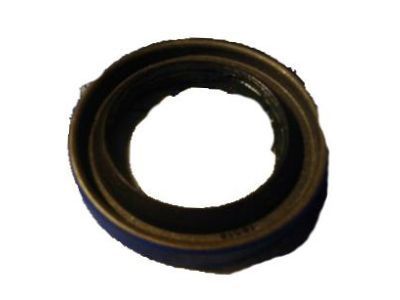

GMC Extension Housing Seal, Rear
Part Number: 24232324
$13.41 MSRP: $22.09
You Save: $8.68 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Transmission Rear Main Bearing; Seal, Transmission Extension
- Position: Rear
- Replaces: 24204540
Fits the following GMC Models:
- Savana 1500 | 2003-2005 | Base, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L GAS
- Savana 2500 | 2003-2005 | Base, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Savana 3500 | 2003-2005 | Base, SLE | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 1500 | 1999-2013 | Base, Denali, HT, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Sierra 1500 Classic | 2007 | Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 HD | 2005-2006, 2001-2003 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 1500 HD Classic | 2007 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 | 1999-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2001-2010 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More
View related parts

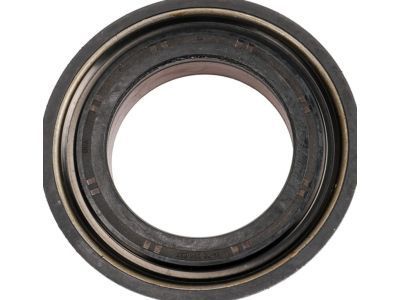

GMC Output Shaft Seal
Part Number: 14095609
$16.14 MSRP: $25.28
You Save: $9.14 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Input Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
Fits the following GMC Models:
- C1500 | 1985 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C1500 Suburban | 1985 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1985 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1985 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1985 | Base, High Sierra, Sierra Classic | 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- Jimmy | 1985 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 | 1985 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 Suburban | 1985 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1985 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 Suburban | 1985 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
View More
View related parts

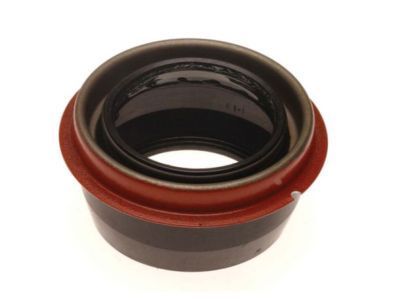

GMC Extension Housing Seal, Rear
Part Number: 12549329
$11.25 MSRP: $17.85
You Save: $6.60 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Manual Transmission Extension Housing Seal and Gasket Set.; Seal, Transmission Extension
- Position: Rear
Fits the following GMC Models:
- Jimmy | 1996-2001 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1996-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts

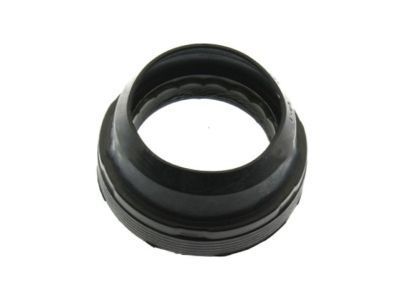

GMC Extension Seal, Rear
Part Number: 88935685
$75.70 MSRP: $118.56
You Save: $42.86 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Rear Output Shaft; Transfer Case Gasket; Seal, Transfer Case
- Position: Rear
Fits the following GMC Models:
- Envoy | 2002-2009 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XL | 2002-2006 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XUV | 2004-2005 | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts
GMC Extension Housing Seal, Front
Part Number: 24226707
$33.28 MSRP: $54.82
You Save: $21.54 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly-Propeller Shaft Front Slip Yoke Oil; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Rear Bearing Retaining; Seal, Transmission Extension; Seal, Transfer Case
- Position: Front
- Replaces: 19133151
Fits the following GMC Models:
- Savana 2500 | 2018-2020 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS
- Savana 3500 | 2018-2020 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS
View related parts
GMC Adapter Gasket
Part Number: 24245110
$8.17 MSRP: $13.45
You Save: $5.28 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket-Transfer Case Adapter; Transfer Case Adapter Seal
- Replaced by: 86816628
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
- Sierra 1500 | 2019-2022 | AT4, Base, Denali, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon | 2021-2023 | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon XL | 2021-2023 | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts
GMC Output Shaft Seal, Front
Part Number: 12384477
$19.36 MSRP: $30.33
You Save: $10.97 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Front Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
- Position: Front
Fits the following GMC Models:
- C1500 | 1989-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1989-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C3500 | 1989-1990 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1989-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1989-1990 | Sierra, Sierra SLE, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K3500 | 1989-1990 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Extension Seal, Rear
Part Number: 15661460
$26.15 MSRP: $43.08
You Save: $16.93 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Rear Output Shaft; Transfer Case Gasket; Seal, Transfer Case
- Position: Rear
Fits the following GMC Models:
- Jimmy | 1994-2001 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1994-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Extension Housing Seal
Part Number: 24228876
$27.33 MSRP: $45.03
You Save: $17.70 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transmission Input And Turbine Shaft; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Universal Joint Sleeve Yoke
- Replaces: 24238075
Fits the following GMC Models:
- Canyon | 2015-2022 | Base, Denali, Elevation, Elevation Standard, SL, SLE, SLT | 4 Cyl 2.5 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
View related parts
GMC Extension Housing Seal
Part Number: 8681168
$7.88 MSRP: $12.51
You Save: $4.63 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Automatic Transmission Case Extension; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Transmission Rear Main Bearing; Seal, Rear Bearing Retaining; Seal, Transmission Extension; Seal, Transfer Case
Fits the following GMC Models:
- Yukon XL 1500 | 2007 | SLE, SLT | 8 Cyl 6.0 L GAS
- Yukon XL 2500 | 2007 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Output Shaft Seal
Part Number: 88984501
$27.80 MSRP: $45.79
You Save: $17.99 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Front Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
- Position: Front
Fits the following GMC Models:
- Savana 1500 | 2003-2014 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 2003-2014 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2003-2014 | Base, LS, LT, SLE | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts
GMC Input Shaft Seal
Part Number: 19299082
$15.11 MSRP: $24.91
You Save: $9.80 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Input Shaft; Automatic Transmission Input Shaft Seal.; Seal, Transfer Case
- Replaces: 19257407
Fits the following GMC Models:
- Sierra 2500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts
GMC Extension Housing Seal, Rear
Part Number: 23049496
$10.84 MSRP: $16.99
You Save: $6.15 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Manual Transmission Extension Housing Seal and Gasket Set.; Seal, Transmission Rear Main Bearing; Seal, Transmission Extension
- Position: Rear
Fits the following GMC Models:
- C1500 | 1988-1998 | Sierra, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1992-1998 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-1998 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1998 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-1998 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1998 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1992-1998 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K2500 | 1988-1998 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1992-1998 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1988-1998 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Output Shaft Seal, Front
Part Number: 84368195
$8.49 MSRP: $13.29
You Save: $4.80 (37%)
ADD TO CART
Product Specifications
- Other Name: Seal-Transfer Case Front Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Intermediate Transfer Case; Seal, Transfer Case
- Position: Front
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Output Shaft Seal
Part Number: 29536379
$11.35 MSRP: $18.70
You Save: $7.35 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transmission Planet Carrier; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Universal Joint Sleeve Yoke
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Extension Housing Seal, Rear
Part Number: 24286193
$1.24 MSRP: $1.95
You Save: $0.71 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Automatic Transmission Extension Housing Seal; Transmission Seal
- Position: Rear
Fits the following GMC Models:
- Sierra 2500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts
GMC Output Shaft Seal
Part Number: 84681932
$32.83 MSRP: $51.42
You Save: $18.59 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal-Power Transfer U Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
- Replaced by: 85732461
- Replaces: 23432724, 84585185
Fits the following GMC Models:
- Terrain | 2018-2023 | AT4, Denali, SL, SLE, SLT | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
GMC Output Shaft Seal
Part Number: 84368190
$36.39 MSRP: $56.99
You Save: $20.60 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal
- Position: Rear
Fits the following GMC Models:
- Sierra 2500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2023 | AT4, Base, Denali, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts
GMC Output Shaft Seal, Front
Part Number: 84124168
$8.39 MSRP: $13.13
You Save: $4.74 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal-Transfer Case Front Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
- Position: Front
Fits the following GMC Models:
- Sierra 1500 | 2019-2023 | AT4, Base, Denali, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Extension Housing Seal, Front
Part Number: 8677463
$9.59 MSRP: $15.01
You Save: $5.42 (37%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Propeller Shaft Front Slip Yoke Oil; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Transmission Rear Main Bearing; Seal, Rear Bearing Retaining; Seal, Transmission Extension
- Position: Front
Fits the following GMC Models:
- G1500 | 1993-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G2500 | 1993-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- G3500 | 1993-1996 | Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Savana 1500 | 2003-2009 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 1996-2009 | Base, LS, LT, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 1996-2009 | Base, LS, LT, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
- Sierra 1500 | 2000-2006 | Base, HT, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 HD | 2005-2006, 2001-2003 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 | 2000-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More

| Page 1 of 2 |Next >

1-20 of 38 Results

GMC Transfer Case Seal Parts Questions & Experts Answers

Extension Seal
97238997
Q: How to replace the input shaft transfer case seal on GMC Canyon?
A: The first step to replace the input shaft seal requires complete removal of the Transfer Case assembly. The assembly fixture (J 45759) requires installation onto the Transfer Case through four appropriate bolts. Secure the input component within the holding fixture (J 3289-20) by integrating the assembly fixture (J 45759) into the holding fixture workbench using the pivot pin. There exists no protective shoulder for the seal inside the Transfer Case so employ the seal remover tool (J 45278) to pull out the seal properly. The input shaft seal removal from the Transfer Case requires the slide hammer with bearing adapter (J 23907) together with the seal remover (J 45278) according to service procedure. The input seal installer (J 45934) with a hammer assists installation of the new input shaft seal inside the Transfer Case until reaching its accurate depth positioning. Curve the assembly fixture (J 45759) from the Transfer Case before reinstalling the complete Transfer Case assembly.
Extension Housing Seal
24262196
Q: How to replace the rear output transfer case seal on GMC Yukon?
A: The replacement process of the rear output shaft seal starts with vehicle elevation and proper suspension of the vehicle body. The first step should be to uninstall both the transfer case shield (if present) along with the rear propeller shaft. You can use a flat-tipped screwdriver to peel out the rear output shaft seal from its position. The installer tool named output shaft seal installer (J 45756) enables proper installation of new front output shaft seals. Repair the rear propeller shaft before checking the fluid level and making required fluid additions if necessary. Finish by reinstalling the transfer case shield (if present) then proceed with lowering the vehicle.
Extension Housing Seal
24236132
Q: How to replace the front output transfer case seal on GMC Sierra 1500?
A: Proper vehicle support and lift techniques enable changing the front output shaft seal. You must first remove the transfer case shield (if present) before taking out the front propeller shaft. The internal front output shaft seal consists of two pieces which include an inner force-fit component that mounts on the output shaft. A flat-tipped screwdriver should be used first to shift the inner seal race forward before using a small pry bar for complete removal from the front output shaft. A flat-tipped screwdriver or small pry bar should be inserted into the space between the outer race lip and the transfer case to remove the remaining output shaft seal portion. To install new seals users must connect the output shaft seal installer (J 43484) to driver handle (J 8092) before inserting the seal onto the installer. The seal installation requires both tools to be used for mounting onto the front output shaft. The front propeller shaft installation proceeds next and the fluid level requires inspection and appropriate fluid addition before replacement of the transfer case shield if present. Lastly, the vehicle needs to be lowered down.
