How to replace the Rocker Shaft Spring Kit and valve stem oil seal on Chevrolet Colorado?

You must lift and stabilize your vehicle before starting the Valve Stem Oil Seal and valve spring replacement work. Put the en 46547 into the flywheel teeth after pulling out the service slot plug and lower the vehicle. The next step involves taking out both valve rocker arms and spark plugs. Place the j-44228-a (J-44228-A) base plate over the service cylinder Spark Plug hole. After that put the j 39313 (J 39313) inside the Spark Plug hole while keeping continuous air pressure from closing the valve. Install the j-44228-a elements carefully over the stud holding the chosen valve while taking care of its powerful spring compression. Twist the swivel nut partially to reach the valve locks and then pry out the valve locks with a magnet. Twist the hand nut to reveal the entire arm then move it aside to take out the valve spring retainer and valve spring. Twist and pull the j 38820 (J 38820) tool to replace the old valve stem seal through its gip points. Before sealing the new stem valve apply clean engine oil to both valve surface and inner seal area then use the j 38820 tool to install the new seal. Reposition the valve spring and valve spring retainer while fixing the arm above them then tighten the swivel nut until the valve locks become visible. Use the j 43059 tool to place valve locks and then free the swivel nut and arm of j-44228-a. Follow this procedure on each cylinder valve to lower air pressure and extract the j 39313 piece from the Spark Plug. Raise the car once more and support it to put in the spark plugs and valve rocker arms on the base plate of the j-44228-a. Finally, install the service slot plug and remove the en 46547 from the flywheel teeth to complete the repair.

How to address issues with the Rocker Shaft Spring Kit on Chevrolet Impala?

Be certain the Piston at the working cylinder is at top dead center (TDC) before you remove the Valve Stem Oil Seal and valve spring so the valve doesn't fall in. Begin with taking out the Spark Plug by first turning it loose and then brushing away any gunk from the Spark Plug recess. Next, remove the Rocker Arm. Insert the j 22794 (J 22794) into the Spark Plug port, then blast it with compressed air to keep the valve in place. Press the valve spring down using the j 5892-d (J 5892-D) and en-47823 (EN-47823), then take out the valve spring cap keys, the valve cap, the valve spring, and the Valve Stem Oil Seal in order. For assembly, oil the valve stem with clean engine oil, put in the Valve Stem Oil Seal, and confirm the right seals are used: black for intake, brown for exhaust. Put the valve spring and cap in place, then compress the valve spring once more with the j 5892-d (J 5892-D) and the en-47823 (EN-47823). Place the valve cap keys, putting a small amount of grease on them to help keep them in position, and confirm they are seated properly. After the air has been cleared, lift the j 22794 (J 22794) out of the Spark Plug hole, insert the Rocker Arm, and lastly put the Spark Plug back on.

How to replace the Rocker Shaft Spring Kit and valve stem oil seal on Chevrolet Malibu?

Before installing the flywheel holding tool (J 43653) the Crankshaft needs to stay locked in its position because applying compressed air in the cylinder risks hurting the tool. Place vehicles with manual transmission in first gear and activate the parking brake while vehicles with automatic transmission should detach the Starter. Install the flywheel holding tool j 43653 first and remove the Camshaft plus associated roller components. Fit the valve spring compressor tool j 43649 to the cylinder head and take out the spark plugs from each cylinder. Push an air hose connector into the Spark Plug hole until the cylinder reaches 690 kpa (100 psi). To access the valve you must squeeze the spring until you can take off both valve spring keepers and the valve spring. To take out the valve seal use the valve guide seal remover tool j 36017. Insert the valve guide seal remover tool (J 36017) firstly then replace the valve spring to finish the installation. Reapply pressure on the valve spring then put back the spring keepers. Pull out the Spark Plug hose adapter and unfasten valve spring compressor tool j43649 from the cylinder head. Place back the spark plugs along with Camshaft roller followers plus Camshaft. Put back the Starter part if taken out then complete the process by removing the flywheel holding tool (J 43653).

OEM Chevrolet Rocker Shaft Spring Kit

Rocker Shaft Spring Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

69 Rocker Shaft Spring Kits found

View related parts

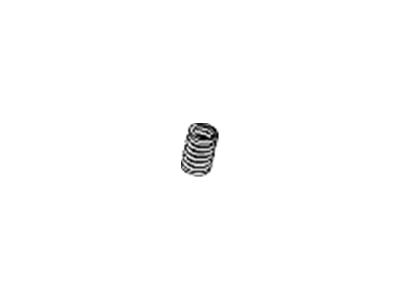

Chevrolet Valve Springs
Part Number: 12592506
$4.84 MSRP: $7.58
You Save: $2.74 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- Camaro | 2011-2012 | LS, LT | 6 Cyl 3.6 L GAS
- Colorado | 2007-2012 | LS, LT, WT | 4 Cyl 2.9 L GAS, 5 Cyl 3.7 L GAS
- Impala | 2012-2013 | LS, LT, LTZ, Police | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Malibu | 2011-2012 | LT, LTZ | 6 Cyl 3.6 L GAS
- Trailblazer | 2006-2009 | Base, LS, LT | 6 Cyl 4.2 L GAS
- Trailblazer EXT | 2006 | LS, LT | 6 Cyl 4.2 L GAS
- Traverse | 2009-2011 | LS, LT, LTZ | 6 Cyl 3.6 L GAS
View More
View related parts
Chevrolet Valve Springs
Part Number: 3911068
$9.05 MSRP: $14.18
You Save: $5.13 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Valve (W/Dampener); Valve Spring; Spring, Engine Valve
- Replaced by: 94666580
Fits the following Chevrolet Models:
- Astro | 1985-1995 | Base, CL, CS, LT | 6 Cyl 4.3 L GAS
- Blazer | 1987-1995 | Base, Cheyenne, Custom Deluxe, LT, Scottsdale, Silverado, Silverado Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C10 | 1984-1986 | Custom, Scottsdale, Silverado | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C10 Suburban | 1984-1986 | Custom, Scottsdale, Silverado | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C1500 | 1988-1995 | Base, Cheyenne, Scottsdale, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- C1500 Suburban | 1992-1995 | Base, LS, LT, Silverado | 8 Cyl 5.7 L GAS
- C20 | 1984-1986 | Custom, Scottsdale, Silverado | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C20 Suburban | 1984-1986 | Custom, Scottsdale, Silverado | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C2500 | 1988-1995 | Base, Cheyenne, Scottsdale, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- C2500 Suburban | 1992-1995 | Base, LS, LT, Silverado | 8 Cyl 5.7 L GAS
View More
View related parts
Chevrolet Valve Springs
Part Number: 55204136
$0.32 MSRP: $0.51
You Save: $0.19 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- Cruze | 2014-2015 | Diesel | 4 Cyl 2.0 L DIESEL
View related parts
Chevrolet Valve Springs
Part Number: 12729741
$4.92 MSRP: $7.71
You Save: $2.79 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve
- Replaces: 12633927
Fits the following Chevrolet Models:
- Silverado 2500 HD | 2017-2023 | Custom, High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL
- Silverado 3500 HD | 2017-2023 | High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Valve Springs
Part Number: 55592321
$2.68 MSRP: $4.19
You Save: $1.51 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- Colorado | 2016-2022 | LT, WT, Z71, ZR2 | 4 Cyl 2.8 L DIESEL
- Express 2500 | 2017-2022 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
- Express 3500 | 2017-2022 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View More
View related parts
Chevrolet Valve Springs
Part Number: 12633927
$4.92 MSRP: $7.71
You Save: $2.79 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
- Replaced by: 12729741
Fits the following Chevrolet Models:
- Silverado 2500 HD | 2017-2022 | Custom, High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL
- Silverado 3500 HD | 2017-2022 | High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Valve Springs
Part Number: 12668540
$4.92 MSRP: $7.71
You Save: $2.79 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve
Fits the following Chevrolet Models:
- Corvette | 2023 | Z06 | 8 Cyl 5.5 L GAS
View related parts
Chevrolet Valve Springs
Part Number: 12636319
$4.72 MSRP: $7.38
You Save: $2.66 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- Cruze | 2016-2019 | L, LS, LT, Premier | 4 Cyl 1.4 L GAS
- Equinox | 2018-2023 | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS
- Malibu | 2016-2023 | L, LS, LT, RS | 4 Cyl 1.5 L GAS
- Spark | 2016-2021 | ACTIV, LS, LT | 4 Cyl 1.4 L GAS
- Trax | 2021-2022 | LS, LT | 4 Cyl 1.4 L GAS
- Volt | 2016-2019 | LT, Premier | 4 Cyl 1.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Chevrolet Valve Springs
Part Number: 96990215
$0.66 MSRP: $1.04
You Save: $0.38 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- Spark | 2013-2015 | LS, LT | 4 Cyl 1.2 L GAS
View related parts
Chevrolet Valve Springs
Part Number: 12556320
$7.08 MSRP: $11.09
You Save: $4.01 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- Avalanche 2500 | 2002-2006 | Base, LS, LT | 8 Cyl 8.1 L GAS
- Express 3500 | 2001-2002 | Base, LS | 8 Cyl 8.1 L GAS
- Silverado 2500 HD | 2001-2006 | Base, LS, LT, WT | 8 Cyl 8.1 L GAS
- Silverado 2500 HD Classic | 2007 | LS, LT, WT | 8 Cyl 8.1 L GAS
- Silverado 3500 | 2001-2006 | Base, LS, LT, WT | 8 Cyl 8.1 L GAS
- Silverado 3500 Classic | 2007 | LS, LT, WT | 8 Cyl 8.1 L GAS
- Suburban 2500 | 2001-2006 | Base, LS, LT | 8 Cyl 8.1 L GAS
View More
View related parts
Chevrolet Valve Springs
Part Number: 3735381
$17.16 MSRP: $26.88
You Save: $9.72 (37%)
ADD TO CART
Product Specifications
- Other Name: Spring Assembly-Valve; Valve Spring; Spring, Transmission Internal Shift; Spring, Engine Valve
Fits the following Chevrolet Models:
- Astro | 1985 | Base, CL, CS | 4 Cyl 2.5 L GAS
- C10 | 1984 | Custom, Scottsdale, Silverado | 6 Cyl 4.1 L GAS
- C20 | 1984-1986 | Custom, Scottsdale, Silverado | 6 Cyl 4.1 L GAS, 6 Cyl 4.8 L GAS
- C30 | 1984-1986 | Custom, Scottsdale, Silverado | 6 Cyl 4.8 L GAS
- Celebrity | 1984-1985 | Base, Classic, Estate, Eurosport | 4 Cyl 2.5 L GAS
- G10 | 1984 | Beauville, Bonaventure, Chevy Van, Sportvan | 6 Cyl 4.1 L GAS
- G20 | 1984 | Beauville, Bonaventure, Chevy Van, Sportvan | 6 Cyl 4.1 L GAS
- G30 | 1984 | Beauville, Bonaventure, Chevy Van, Hi-Cube | 6 Cyl 4.1 L GAS
- K10 | 1984 | Custom, Scottsdale, Silverado | 6 Cyl 4.1 L GAS
- K20 | 1984-1986 | Custom, Scottsdale, Silverado | 6 Cyl 4.8 L GAS
View More
View related parts
Chevrolet Valve Springs
Part Number: 24000389
$5.06 MSRP: $7.94
You Save: $2.88 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve
Fits the following Chevrolet Models:
- Silverado 1500 | 2020-2023 | Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST | 6 Cyl 3.0 L DIESEL
- Suburban | 2021-2022 | High Country, LS, LT, Premier, RST | 6 Cyl 3.0 L DIESEL
- Tahoe | 2021-2022 | High Country, LS, LT, Premier, RST | 6 Cyl 3.0 L DIESEL
View More
View related parts
Chevrolet Valve Springs
Part Number: 55586997
$4.72 MSRP: $7.38
You Save: $2.66 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Valve; Valve Spring; Spring, Engine Valve
Fits the following Chevrolet Models:
- Malibu | 2016-2019 | Hybrid | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
View related parts
Chevrolet Valve Springs
Part Number: 10213465
$10.65 MSRP: $16.68
You Save: $6.03 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- G30 | 1995-1996 | Beauville, Chevy Van, Hi-Cube, Sportvan | 8 Cyl 7.4 L GAS
View related parts
Chevrolet Valve Springs
Part Number: 10212811
$12.60 MSRP: $20.01
You Save: $7.41 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Valve; Valve Spring; Spring, Engine Valve
Fits the following Chevrolet Models:
- Astro | 1996-2005 | Base, LS, LT | 6 Cyl 4.3 L GAS
- Blazer | 1996-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- C1500 | 1996-1999 | Base, Cheyenne, LS, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C1500 Suburban | 1996-1999 | Base, LS, LT | 8 Cyl 5.7 L GAS
- C2500 | 1996-2000 | Base, Cheyenne, LS, Silverado, WT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- C2500 Suburban | 1996-1999 | Base, LS, LT | 8 Cyl 5.7 L GAS
- C3500 | 1996-2000 | Base, Cheyenne, LS, Silverado | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- Caprice | 1994-1996 | Classic, Classic LS | 8 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS
- Express 1500 | 1996-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- Express 2500 | 1996-2006 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
View More
View related parts
Chevrolet Valve Springs
Part Number: 14076469
$9.22 MSRP: $14.43
You Save: $5.21 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
- Replaces: 94666172
Fits the following Chevrolet Models:
- Beretta | 1988-1991 | Base, Indianapolis 500 Pace Car | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
- Cavalier | 1987-1993 | Base, CS, RS, VL | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
- Corsica | 1988-1991 | Base, LT | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
View More
View related parts
Chevrolet Valve Springs
Part Number: 55569929
$3.35 MSRP: $5.24
You Save: $1.89 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- Cruze | 2017-2019 | Diesel, LT | 4 Cyl 1.6 L DIESEL
- Equinox | 2018-2019 | LT, Premier | 4 Cyl 1.6 L DIESEL
View related parts
Chevrolet Valve Springs
Part Number: 96353128
$3.96 MSRP: $6.21
You Save: $2.25 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Valve; Spring, Engine Valve
Fits the following Chevrolet Models:
- Aveo | 2004-2008 | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS
- Aveo5 | 2007-2008 | LS, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Valve Springs
Part Number: 19257200
$9.46 MSRP: $14.82
You Save: $5.36 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring Kit, Engine Valve; Valve Spring
- Replaces: 12537174
Fits the following Chevrolet Models:
- Camaro | 1995-2002 | Base, RS | 6 Cyl 3.8 L GAS
- Impala | 2000-2005 | Base, LS, LS Sport, Police, SS | 6 Cyl 3.8 L GAS
- Lumina | 1998-1999 | Base, LS, LTZ | 6 Cyl 3.8 L GAS
- Monte Carlo | 1998-2005 | Indianapolis 500 Pace Car, LS, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car, Z34 | 6 Cyl 3.8 L GAS
View More
View related parts
Chevrolet Valve Springs
Part Number: 19316205
$23.04 MSRP: $34.29
You Save: $11.25 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Engine Valve; Valve Spring
Fits the following Chevrolet Models:
- City Express | 2015-2018 | LS, LT | 4 Cyl 2.0 L GAS

| Page 1 of 4 |Next >

1-20 of 69 Results

Chevrolet Rocker Shaft Spring Kit Parts Questions & Experts Answers

Valve Springs
12592506
Q: How to replace the Rocker Shaft Spring Kit and valve stem oil seal on Chevrolet Colorado?
A: You must lift and stabilize your vehicle before starting the Valve Stem Oil Seal and valve spring replacement work. Put the en 46547 into the flywheel teeth after pulling out the service slot plug and lower the vehicle. The next step involves taking out both valve rocker arms and spark plugs. Place the j-44228-a (J-44228-A) base plate over the service cylinder Spark Plug hole. After that put the j 39313 (J 39313) inside the Spark Plug hole while keeping continuous air pressure from closing the valve. Install the j-44228-a elements carefully over the stud holding the chosen valve while taking care of its powerful spring compression. Twist the swivel nut partially to reach the valve locks and then pry out the valve locks with a magnet. Twist the hand nut to reveal the entire arm then move it aside to take out the valve spring retainer and valve spring. Twist and pull the j 38820 (J 38820) tool to replace the old valve stem seal through its gip points. Before sealing the new stem valve apply clean engine oil to both valve surface and inner seal area then use the j 38820 tool to install the new seal. Reposition the valve spring and valve spring retainer while fixing the arm above them then tighten the swivel nut until the valve locks become visible. Use the j 43059 tool to place valve locks and then free the swivel nut and arm of j-44228-a. Follow this procedure on each cylinder valve to lower air pressure and extract the j 39313 piece from the Spark Plug. Raise the car once more and support it to put in the spark plugs and valve rocker arms on the base plate of the j-44228-a. Finally, install the service slot plug and remove the en 46547 from the flywheel teeth to complete the repair.
Valve Springs
12600774
Q: How to address issues with the Rocker Shaft Spring Kit on Chevrolet Impala?
A: Be certain the Piston at the working cylinder is at top dead center (TDC) before you remove the Valve Stem Oil Seal and valve spring so the valve doesn't fall in. Begin with taking out the Spark Plug by first turning it loose and then brushing away any gunk from the Spark Plug recess. Next, remove the Rocker Arm. Insert the j 22794 (J 22794) into the Spark Plug port, then blast it with compressed air to keep the valve in place. Press the valve spring down using the j 5892-d (J 5892-D) and en-47823 (EN-47823), then take out the valve spring cap keys, the valve cap, the valve spring, and the Valve Stem Oil Seal in order. For assembly, oil the valve stem with clean engine oil, put in the Valve Stem Oil Seal, and confirm the right seals are used: black for intake, brown for exhaust. Put the valve spring and cap in place, then compress the valve spring once more with the j 5892-d (J 5892-D) and the en-47823 (EN-47823). Place the valve cap keys, putting a small amount of grease on them to help keep them in position, and confirm they are seated properly. After the air has been cleared, lift the j 22794 (J 22794) out of the Spark Plug hole, insert the Rocker Arm, and lastly put the Spark Plug back on.
Alternator Bolt
11588728
Q: How to replace the Rocker Shaft Spring Kit and valve stem oil seal on Chevrolet Malibu?
A: Before installing the flywheel holding tool (J 43653) the Crankshaft needs to stay locked in its position because applying compressed air in the cylinder risks hurting the tool. Place vehicles with manual transmission in first gear and activate the parking brake while vehicles with automatic transmission should detach the Starter. Install the flywheel holding tool j 43653 first and remove the Camshaft plus associated roller components. Fit the valve spring compressor tool j 43649 to the cylinder head and take out the spark plugs from each cylinder. Push an air hose connector into the Spark Plug hole until the cylinder reaches 690 kpa (100 psi). To access the valve you must squeeze the spring until you can take off both valve spring keepers and the valve spring. To take out the valve seal use the valve guide seal remover tool j 36017. Insert the valve guide seal remover tool (J 36017) firstly then replace the valve spring to finish the installation. Reapply pressure on the valve spring then put back the spring keepers. Pull out the Spark Plug hose adapter and unfasten valve spring compressor tool j43649 from the cylinder head. Place back the spark plugs along with Camshaft roller followers plus Camshaft. Put back the Starter part if taken out then complete the process by removing the flywheel holding tool (J 43653).
