How to replace the steering linkage inner tie rod on GMC Sierra 1500?

The initial step for replacing an inner tie rod within the steering linkage requires removal of an engine shield according to equipment specifications. Detach the steering linkage outer tie rod as the next step. Wrench J 34028 will help you disconnect the steering linkage inner tie rod from its position on the relay rod. The threads of the steering linkage inner tie rod require a cleaning process which involves the use of denatured alcohol or an equivalent solution for complete drying. Before installation of the steering linkage inner tie rod secure its threads with red LOCTITE(TM) threadlocker GM P/N 12345493 (Canadian P/N 10953488). The steering linkage inner tie rod must be installed onto the relay rod by using wrench (J 34028) to achieve 100 Nm (74 lb ft) of torque. Install the steering linkage outer tie rod along with the engine shield if it comes equipped to the vehicle. Finally, adjust the front toe.

How to replace the steering linkage outer tie rod on GMC Acadia?

Begin the procedure to replace the steering linkage outer Tie Rod by first removing the front tire along with its wheel. First detach the steering linkage outer Tie Rod nut while then slowly loosening the steering linkage inner Tie Rod nut. Prevent damage to the bushing or seal by not using pickle forks or wedge tools for ball stud separation since the steering linkage and Tie Rod puller (J 24319-B) provides the proper approach to separate the steering linkage outer Tie Rod from the Steering Knuckle . Determine the total number of steering linkage outer Tie Rod rotations required to break loose its attachment from the steering linkage inner Tie Rod. The following step requires removal of the steering linkage outer Tie Rod from its position on the steering linkage inner Tie Rod. Follow this step during installation by attaching the steering linkage inner Tie Rod to the steering linkage outer Tie Rod while leaving the steering linkage inner Tie Rod nut untightened. You should fasten the steering linkage outer Tie Rod onto the Steering Knuckle. A prevailing torque fastener can become reusable only when it meets the criteria of a rust-free condition with a clean appearance and a torque reading of 2 n.m (18 lb in) before the parts settle into position. Replace the fastener when any of the existing criteria fail to satisfy. When installing the steering linkage outer Tie Rod nut it must receive 30 n.m (22 lb ft) torque with 120 degrees (2 flats) of rotation until 2.5 to 4.5 threads on the steering linkage outer Tie Rod End become exposed beyond the nut nylon. To complete the installation phase you should reinstall the front tire/wheel followed by adjusting the front toe after you implement the proper torque of 75 n.m (55 lb ft) on the steering linkage inner Tie Rod nut.

How to replace the steering linkage inner tie rod on GMC Yukon?

The initial step for steering linkage inner Tie Rod replacement demands boot removal for a steering gear inspection; proceed with the repair if the steering linkage inner Tie Rod shows no corrosion or contamination but switch to a new steering gear if any damage is discovered. The valve end of the steering gear should face the inner Tie Rod housing when using a pipe wrench to prevent any damage. The installer should position a pipe wrench on the flats of the steering gear rack near the steering linkage inner Tie Rod before rotating the steering linkage inner Tie Rod counterclockwise using another wrench while maintaining the steering gear rack position until complete separation. All threads must be clean prior to installation and receiving a loctite(R) 262 coating on the steering gear inner Tie Rod threads which will be used to connect the steering linkage inner Tie Rod to the steering gear rack. The steering linkage inner Tie Rod must be fastened up to 100 n.m (74 lb ft) while using a pipe wrench to work on the flats of the steering gear rack alongside it. The last step includes steering gear boot installation.

OEM GMC Tie Rod

Steering Tie Rod

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

103 Tie Rods found

View related parts
GMC Outer Tie Rod
Part Number: 22913602
$99.01 MSRP: $168.56
You Save: $69.55 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Outer; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End
- Position: Outer
- Replaced by: 84467789
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2011-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

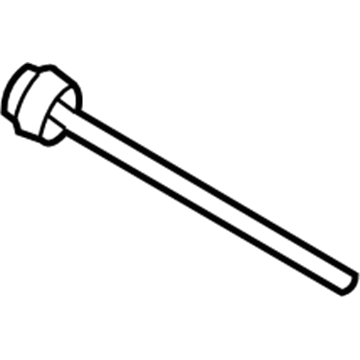

GMC Inner Tie Rod
Part Number: 84344235
$32.09 MSRP: $50.95
You Save: $18.86 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Inner; Steering Tie Rod End; Tie Rod End
- Position: Inner
- Replaces: 22966604
Fits the following GMC Models:
- Canyon | 2015-2022 | All Terrain, AT4, Base, Denali, Elevation, Elevation Standard, SL, SLE, SLT | 4 Cyl 2.5 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 23479354
$70.36 MSRP: $119.79
You Save: $49.43 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Inner; Steering Tie Rod End; Tie Rod End
- Position: Inner
Fits the following GMC Models:
- Terrain | 2018-2021 | Denali, SL, SLE, SLT | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
GMC Outer Tie Rod, Passenger Side
Part Number: 23214216
$41.53 MSRP: $70.68
You Save: $29.15 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Assembly-Steering Linkage Outer Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End
- Position: Passenger Side
- Replaced by: 87853957
Fits the following GMC Models:
- Acadia | 2017-2023 | AT4, Denali, SL, SLE, SLT | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 19210063
$92.37 MSRP: $152.16
You Save: $59.79 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Inner Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
GMC Outer Tie Rod, Passenger Side
Part Number: 26100287
$148.79 MSRP: $253.32
You Save: $104.53 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Outer Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Outer
- Position: Outer Passenger Side
Fits the following GMC Models:
- Envoy | 2003-2009 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XL | 2003-2006 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XUV | 2004-2005 | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts
GMC Outer Tie Rod
Part Number: 19210064
$57.31 MSRP: $139.86
You Save: $82.55 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Outer Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Outer
- Position: Outer
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
GMC Outer Tie Rod
Part Number: 15895646
$61.10 MSRP: $149.08
You Save: $87.98 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Outer; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End
- Position: Outer
Fits the following GMC Models:
- Sierra 1500 | 2009-2013 | Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
- Yukon | 2008-2013 | Denali Hybrid, Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
GMC Inner Tie Rod
Part Number: 87860048
$31.47 MSRP: $49.30
You Save: $17.83 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Outer Tie Rod, Driver Side
Part Number: 87860040
$45.30 MSRP: $70.97
You Save: $25.67 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Assembly-Steering Linkage Outer Tie; Rod, Steering Tie Rod Outer
- Position: Driver Side
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Outer Tie Rod, Passenger Side
Part Number: 87860041
$45.30 MSRP: $70.97
You Save: $25.67 (37%)
ADD TO CART
Product Specifications
- Other Name: Rod Assembly-Steering Linkage Outer Tie; Rod, Steering Tie Rod Outer
- Position: Passenger Side
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 87860044
$44.97 MSRP: $70.44
You Save: $25.47 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Assembly-Steering Linkage Outer Tie; Outer Tie Rod; Rod, Steering Tie Rod Outer
Fits the following GMC Models:
- Canyon | 2023 | AT4, AT4X, Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 26089596
$15.98 MSRP: $26.32
You Save: $10.34 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Inner Tie; Steering Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Envoy | 2002 | SLE, SLT | 6 Cyl 4.2 L GAS
- Envoy XL | 2002 | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 84924892
$71.47 MSRP: $111.95
You Save: $40.48 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Terrain | 2022-2024 | AT4, Denali, SLE, SLT | 4 Cyl 1.5 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 26100288
$143.55 MSRP: $223.88
You Save: $80.33 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Inner Tie; Steering Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Envoy | 2003-2009 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XL | 2003-2006 | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
- Envoy XUV | 2004-2005 | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts
GMC Inner Tie Rod
Part Number: 19179724
$81.32 MSRP: $133.98
You Save: $52.66 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Inner Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod, Steering Tie Rod Inner
- Position: Inner
- Replaces: 19152664
Fits the following GMC Models:
- Canyon | 2007-2012 | SL, SLE, SLT, WT | 4 Cyl 2.9 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Outer Tie Rod
Part Number: 26051689
$135.71 MSRP: $213.53
You Save: $77.82 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Assembly, Steering Linkage Outer Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; End, Steering Tie Rod Outer; Rod, Steering Tie Rod Outer
- Position: Outer
- Replaces: 00378343, 378343
Fits the following GMC Models:
- C1500 | 1988, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra SLE, Sierra SLX | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C1500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- C2500 | 1988, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra SLE, Sierra SLX | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra SLE, Sierra SLX | 6 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- Jimmy | 1984 | Base | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.1 L GAS, 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 Suburban | 1985-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 | 1984-1986 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 6 Cyl 4.8 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
- K2500 Suburban | 1984-1986 | Base, High Sierra, Sierra Classic | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL
View More
View related parts
GMC Inner Tie Rod
Part Number: 87860049
$31.47 MSRP: $49.30
You Save: $17.83 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Canyon | 2023 | Denali, Elevation | 4 Cyl 2.7 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 19207056
$154.26 MSRP: $264.93
You Save: $110.67 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Inner Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
GMC Inner Tie Rod
Part Number: 19207100
$92.11 MSRP: $151.74
You Save: $59.63 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Inner Tie; Steering Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Inner
- Position: Inner
Fits the following GMC Models:
- Savana 1500 | 2010-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX
- Savana 2500 | 2010-2014 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2010-2014 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.6 L DIESEL
View More

| Page 1 of 6 |Next >

1-20 of 103 Results

GMC Tie Rod Parts Questions & Experts Answers

Inner Tie Rod
19178561
Q: How to replace the steering linkage inner tie rod on GMC Sierra 1500?
A: The initial step for replacing an inner tie rod within the steering linkage requires removal of an engine shield according to equipment specifications. Detach the steering linkage outer tie rod as the next step. Wrench J 34028 will help you disconnect the steering linkage inner tie rod from its position on the relay rod. The threads of the steering linkage inner tie rod require a cleaning process which involves the use of denatured alcohol or an equivalent solution for complete drying. Before installation of the steering linkage inner tie rod secure its threads with red LOCTITE(TM) threadlocker GM P/N 12345493 (Canadian P/N 10953488). The steering linkage inner tie rod must be installed onto the relay rod by using wrench (J 34028) to achieve 100 Nm (74 lb ft) of torque. Install the steering linkage outer tie rod along with the engine shield if it comes equipped to the vehicle. Finally, adjust the front toe.
Outer Tie Rod
15869897
Q: How to replace the steering linkage outer tie rod on GMC Acadia?
A: Begin the procedure to replace the steering linkage outer Tie Rod by first removing the front tire along with its wheel. First detach the steering linkage outer Tie Rod nut while then slowly loosening the steering linkage inner Tie Rod nut. Prevent damage to the bushing or seal by not using pickle forks or wedge tools for ball stud separation since the steering linkage and Tie Rod puller (J 24319-B) provides the proper approach to separate the steering linkage outer Tie Rod from the Steering Knuckle . Determine the total number of steering linkage outer Tie Rod rotations required to break loose its attachment from the steering linkage inner Tie Rod. The following step requires removal of the steering linkage outer Tie Rod from its position on the steering linkage inner Tie Rod. Follow this step during installation by attaching the steering linkage inner Tie Rod to the steering linkage outer Tie Rod while leaving the steering linkage inner Tie Rod nut untightened. You should fasten the steering linkage outer Tie Rod onto the Steering Knuckle. A prevailing torque fastener can become reusable only when it meets the criteria of a rust-free condition with a clean appearance and a torque reading of 2 n.m (18 lb in) before the parts settle into position. Replace the fastener when any of the existing criteria fail to satisfy. When installing the steering linkage outer Tie Rod nut it must receive 30 n.m (22 lb ft) torque with 120 degrees (2 flats) of rotation until 2.5 to 4.5 threads on the steering linkage outer Tie Rod End become exposed beyond the nut nylon. To complete the installation phase you should reinstall the front tire/wheel followed by adjusting the front toe after you implement the proper torque of 75 n.m (55 lb ft) on the steering linkage inner Tie Rod nut.
Inner Tie Rod
19178561
Q: How to replace the steering linkage inner tie rod on GMC Yukon?
A: The initial step for steering linkage inner Tie Rod replacement demands boot removal for a steering gear inspection; proceed with the repair if the steering linkage inner Tie Rod shows no corrosion or contamination but switch to a new steering gear if any damage is discovered. The valve end of the steering gear should face the inner Tie Rod housing when using a pipe wrench to prevent any damage. The installer should position a pipe wrench on the flats of the steering gear rack near the steering linkage inner Tie Rod before rotating the steering linkage inner Tie Rod counterclockwise using another wrench while maintaining the steering gear rack position until complete separation. All threads must be clean prior to installation and receiving a loctite(R) 262 coating on the steering gear inner Tie Rod threads which will be used to connect the steering linkage inner Tie Rod to the steering gear rack. The steering linkage inner Tie Rod must be fastened up to 100 n.m (74 lb ft) while using a pipe wrench to work on the flats of the steering gear rack alongside it. The last step includes steering gear boot installation.
