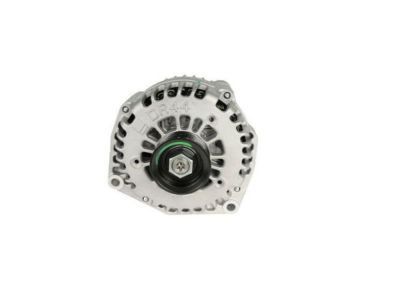

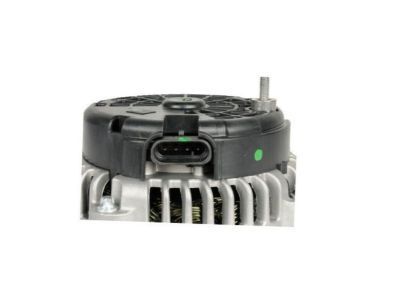

GM 22781131
Alternator

The first step for generator replacement entails disconnecting the negative Battery Cable followed by accessory Drive Belt removal. You should remove the engine sight shield if necessary. Start by disconnecting the generator electrical connector. Slide the boot to expose the terminal stud and then remove the generator cable nut from the terminal stud. Finally detach the generator cable. Start by removing each generator bolt followed by removing the generator itself. First reinstall the generator in its proper position before tightening generator bolts to 50 n.m (37 lb ft). Secure the generator cable through installation followed by tightening the generator cable nut against the terminal stud to 9 n.m (80 lb in). Finally finish by placing the boot over the terminal stud. Complete the generator electrical connector connection then reinstall the engine sight shield if required before putting on the accessory Drive Belt.

Safety requires disconnecting the battery before starting to replace the auxiliary generator. Initiate work by taking out both the air cleaner assembly and the upper radiator Fan Shroud. Disconnect the negative Battery Cable and the auxiliary generator electrical connector before beginning work. You will reach the terminal stud by sliding the boot downwards to gain access. Once you have removed the positive cable nut you can take out the positive cable. Disassemble the auxiliary generator bolts followed by removal of the auxiliary generator unit. Place the new auxiliary generator into position and use auxiliary generator bolts to fasten it with 50 newton-meters torque (37 pounds of torque). Put on the positive cable beginning with its nut installation before securing it to 9 n.m tension (80 lb in torque) and moving the boot upwards to cover the terminal stud. After reattaching the Drive Belt users must next connect the auxiliary generator electrical connector followed by negative Battery Cable reattachment before finally installing the upper radiator Fan Shroud along with the air cleaner assembly.

The battery must be disconnected before auxiliary generator replacement can begin. The first step involves taking out the Drive Belt along with the upper Fan Shroud. Disconnect the auxiliary generator electrical connector followed by removing the positive cable through its boot sliding action to reveal the terminal stud while unfastening the positive cable nut before removing the cable itself. Start by unscrewing the three bolts holding the auxiliary generator then remove the generator component. The auxiliary generator setup requires users to position the unit first before securing the three bolts which need to be tightened to 50 n.m (37 lb ft). Install the positive cable nut first before fitting the positive cable at its terminal stud position while maintaining a torque of 9 n.m (80 lb in). Finally, reposition the boot over the terminal stud. Complete the generator electrical connection before you return the Drive Belt and install the upper shroud.

In order to replace the generator, first, lift the vehicle and disconnect negative Battery Cable and then lower the vehicle. Take off the accessory Drive Belt and remove engine sight shield if needed. Unplug the generator electrical connector and take off the generator cable by sliding its boot down to expose the terminal stud, but then pull off the generator cable nut from the terminal stud and remove the generator cable. Next, unbolt the generator bolts so as to remove the generator. For installation, fix the generator at its place with the generator bolt and tighten it with 50 n.m (37 lb ft). Put back the generator cable by attaching it and fastening it to the generator cable nut and tighten it to 9 n.m (80 lb in), and slide the boot onto the terminal stud. At that, hook up the generator electrical connector, regain the engine view shield should it have been detached, and replace the accessory Drive Belt. Finally, lift the vehicle again and reconnect negative Battery Cable and lower the vehicle.

Safety considerations before generator replacement begin with disconnecting the negative Battery Cable plus vehicle elevation. To begin the replacement of the generator start by removing the accessory Drive Belt followed by the engine sight shield (optional). Start by disconnecting the generator electrical connector and then complete the generator cable removal process by pulling down the boot before you remove the generator cable nut from the terminal stud. Finally remove the generator cable. The procedure requires removal of generator bolts before extracting the generator unit. Position the generator first then tighten each generator bolt to 50 n.m (37 lb ft). Align the generator cable then fasten its nut onto the terminal at 9 n.m (80 lb in) torque before putting the boot back on the terminal. Attach the generator's electrical connector and reinstall the engine sight shield when removed before reinstalling the accessory Drive Belt. After raising the vehicle once again connect the negative Battery Cable and lower the car to its original position.

In order to change the generator of the car with 4.2l engine, first unhook the battery negative cable, then remove the Drive Belt. Then, remove the air conditioning (A/C) line mounting bracket bolt at the engine lift hook, and then remove the right engine lift hook bolts to pull off the lift hook. Subsequently, remove the 3 generator mounting bolts to pull out the generator and disconnect the battery positive cable nut on the generator. For install use the positive cable of battery with the generator and secure it with the nut tightening to 9 n.m (80 lb in). Mount the generator and fasten using 3 bolts that need to be tightened up to 50 n.m ( 37 lb ft). Retighten the engine lift hook bolts and attach the hook to the engine with 2 bolts and tighten them to the same firmness of 50 n.m (37 lb ft). Then, install the a/c line bracket to the lift hook, fixing it with the bolt, with a tightening force of 10 n.m (89 lb in). Lastly, replace the Drive Belt, and reconnect the battery negative terminal.

Start the generator replacement process by disconnecting the negative Battery Cable while following thebattery disconnect caution. Start by separating the air cleaner assembly along with the Drive Belt followed by eliminating the regulator electrical link. Trim the generator by first removing the front mounting bolts and the rear mounting bolt along with the generator output (BAT) terminal nut. Hang the generator onto the vehicle first before installing its mounting bolts with limited torque. Fit the generator output (BAT) lead before installing the generator output (BAT) nut with loose physical tension. Use 50 n.m (37 lb ft) torque when tightening the generator mounting bolts together with 10 n.m (89 lb in) for the bat terminal nut. After plugging in the electrical connector of the regulator proceed with installing the Drive Belt before you reinstall the air cleaner then complete the installation by connecting the battery negative cable.

To replace the generator in vehicles with 4.8l, 5.3l, 6.0l, and 6.2l engines, take the necessary action starting by never left behind that to remove the negative Battery Cable. Remove the intake manifold sight shield and the accessary Drive Belt. Unplug the engine harness electrical connector from the generator, move the generator battery jumper cable boot. Disconnect the jumper cable nut and the terminal of the generator , then remove the generator bolts to remove the generator. To install, first install the generator and strictly follow the fastener notice. Surface the generator bolts to 55 n.m (41 lb ft) then attach the generator battery jumper cable terminal to the generator stud and the nut to the generator, sue tighten it to 9 n.m (80 lb in). Position the generator battery jumper cable boot along with the connection of the engine harness electrical connector to the generator. Last but not least, reinstall the accessory Drive Belt, the intake manifold sight shield, and reconnect negative Battery Cable.

Begin generator replacement by disconnecting the battery negative cable and driving off the belt. Begin by disconnecting the generator's positive Battery Cable nut followed by removing the a/c line mounting bracket bolt which represents the engine lift hook. Next remove the right engine lift hook bolts before removing the lift hook. Remove the generator by first disassembling its 3 mounting bolts. You should install the generator by placing it back into position then tightening the 3 bolt mounting points to 50 n.m (37 lb ft). Secure the generator to the battery positive cable using the nut then tighten it to 9 n.m (80 lb in). Secure the engine lift hook by installing 2 bolts while torquing them to 50 n.m (37 lb ft). Secure the a/c line bracket onto the lift hook by using the bolt and tightening it to 10 n.m (89 lb in). To conclude the installation process connect the battery negative cable and install the Drive Belt.

To change the generator, first, you will need to remove the air cleaner assembly and the top radiator Fan Shroud. Remove the negative Battery Cable and generator electrical connector. Then, remove the Drive Belt and the positive Battery Cable from the generator by sliding down the boot to expose the terminal stud, then removing the nut of the positive cable, and positive cable together with the similarly colored power clamp. And then, unscrew the generator bolts and pull out the generator. For install, start by returning the generator to position and securinggenerator boltsput080 n.m (37 lb ft) on them. Disturb the generator of Battery Cable by using the postive cable with 9 n.m (80 lb in) installed by connecting it to the positive cable nut, and sliding the boot up and covering terminal stud. Next, fit the Drive Belt, connect the generators electrical connector, reconnect the negative Battery Cable, and re-fit the radiator Fan Shroud and the air cleaner assembly.

Remove the generator cable by sliding the boot down to reveal the terminal stud, removing the generator cable nut from the terminal, and then taking off the generator cable.

Remove the upper fan shroud.

Remove the generator bolts and take the generator out of the bracket.

Remove the generator bolts and take out the generator.

Disconnect the generator electrical connector and remove the generator cable by sliding the boot down to reveal the terminal stud.

Take out the generator bolts and reposition the heater outlet and A/C compressor/condenser hoses as necessary to remove the generator from the bracket.

Disconnect the auxiliary generator electrical connector.

Connect the generator electrical connector, install the accessory drive belt, and finally reconnect the negative battery cable.

Disconnect the generator electrical connector and remove the generator cable by sliding the boot down to reveal the terminal stud.

Remove the generator bolts and take the generator out of the bracket.

Place the generator in position and secure it with the generator bolts, tightening them to 50 N.m (37 lb ft).
