OEM Chevrolet Ignition Control Module
Ignition Spark Control Module- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
67 Ignition Control Modules found

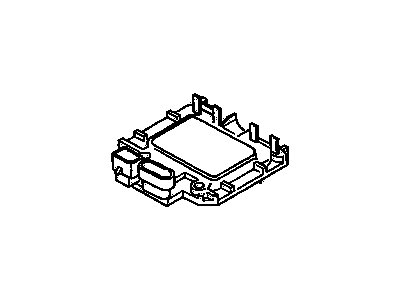

Chevrolet Control Module
Part Number: 10482803$131.42 MSRP: $270.06You Save: $138.64 (52%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Module, Electronic Ignition Control (W/O Coil); Ignition Control Module; Ignition Module; ESC Control Module; Coil Module; Module
- Replaced by: 19435467
Chevrolet Ignition Module
Part Number: 19178835$313.04 MSRP: $561.50You Save: $248.46 (45%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Module Assembly, Electronic Ignition Control (W/O Coil); Ignition Control Module; Module, Distributor (Also Knock Sensor)
- Replaces: 10490872
Product Specifications- Other Name: Module Assembly, Distributor Ignition Control; Module, Distributor (Also Knock Sensor)
- Replaces: 16139879, 10483099
Product Specifications- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module; ESC Control Module
Product Specifications- Other Name: Module, Windshield Defroster; Ignition Control Module; ESC Module; ESC Control Module; Module; Module, Distributor (Also Knock Sensor)
Product Specifications- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module; ESC Control Module; Module

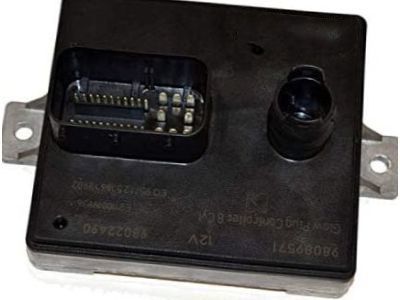

Product Specifications- Other Name: Module Assembly-Glow Plug Control; Module, Spark Ignition
- Replaces: 98022489, 97371413
Product Specifications- Other Name: Module Assembly-Glow Plug Control; Module; Module, Spark Ignition
- Replaces: 98062002
Product Specifications- Other Name: Module Assembly-Glow Plug Control; Ignition Control Module; Module; Module, Spark Ignition; Module,Glow
- Replaces: 12654071
Product Specifications- Other Name: Ignitor A; Ignition Control Module; Ignition Module; Igniter; Module, Distributor (Also Knock Sensor); Ignitor, Ignition Coil
Product Specifications- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module; ESC Module; ESC Control Module
Product Specifications- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module
Product Specifications- Other Name: Module Assembly, Electronic Ignition Control (W/O Coil); Ignition Control Module; Ignition Module; Coil Module; Module; Module, Distributor (Also Knock Sensor)
- Replaces: 10469867
Product Specifications- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module
- Product Specifications
- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module
Product Specifications- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module
Product Specifications- Other Name: Module Assembly, Electronic Ignition Control (W/O Coil); Ignition Control Module; Ignition Module; Module; Module, Distributor (Also Knock Sensor)
- Replaces: 10499424, 10467208
Product Specifications- Other Name: Module, Distributor (Also Knock Sensor); Ignition Control Module; Ignition Module; Coil
- Replaces: 12569276
Product Specifications- Other Name: Module, Elbow; Ignition Control Module; ESC Control Module
Product Specifications- Other Name: Module, Electronic Ignition Control; Ignition Control Module; Module, Distributor (Also Knock Sensor)
| Page 1 of 4 |Next >
1-20 of 67 Results
Chevrolet Ignition Control Module Parts Questions & Experts Answers
- Q: How to service the Ignition Control Module on Chevrolet Camaro?A: Turn off the ignition and remove the 14 way connector from the Ignition Control Module (ICM) (note the part position of the wires before disconnection). Next unscrew the Spark Plug Wires from the coil assemblies ,after that un screw the screws holding the coil assemblies to icm. Then take off the coils and the icm from the bracket. For installation, install the coils and Ignition Control Module to the bracket with reference to fastener notice in service precautions. Mount the screws to fix the ignition coils and the icm on the bracket and fasten them with a tightness of 4.5 n.m (40 lb in). So connect the Spark Plug Wires then connect the 14 way connector onto the module and tighten down the screw to 2.1 - n.m (19 - lb in).
- Q: How to replace the Ignition Control Module on Chevrolet Malibu?A: When replacing the Ignition Control Module start by disconnecting all electrical connectors before following the spark plug wire placement for installation to disconnect each wire from the Ignition Coil. First remove the screws which secure coil assemblies to the Ignition Control Module until you can take the coils away from the module. Next disconnect the Ignition Control Module from its mount position. Reinstall the coils to the module and place the Ignition Control Module onto the bracket according to the fastener notice displayed in service precautions. Apply 45 n.m (40 lb in) torque when you install screws into the coils to complete the installation process. Safely reinstall electrical connectors to ignite the control module before reconnecting Spark Plug Wires using their previous placement.
- Q: How to replace the Ignition Control Module on Chevrolet S10?A: To remove the Ignition Control Module, there is a need to separate the electrical connector. Next, take off the 2 screws that attach the ignition control module and the heat sink to the bracket, then remove the ignition control module and heat sink. In installation, the Fastener Notice in Service Precautions is to be adhered to. Mount the ignition control module and the heat sink onto the bracket using the 2 screws tightening it to a value of 3.5 N.m (31 lb in) meanwhile reconnect the electrical connectors.
