How to replace the ignition lock cylinder on Chevrolet Colorado?

A mechanic will start ignition switch lock cylinder replacement by taking away steering column trim covers. Begin by placing the Ignition Lock Cylinder into the accessory position before you can use a pick tool's 90-degree tip to explore the access hole. The Ignition Lock Cylinder retaining pin requires downward pressure while you pull the Ignition Lock Cylinder away from the steering column. Start by turning the Ignition Lock Cylinder to the accessory position then push it into place with care for the retaining pin to lock it while replacing the steering column trim covers.

How to Properly Remove and Install an Ignition Lock Cylinder on Chevrolet Equinox?

For ignition switch lock cylinder replacement start by disconnecting the negative Battery Cable and disabling the sir system. Begin the repair by removing the steering column trim covers and the wipers/washer switch. Set the Ignition Lock Cylinder at the run position. There are two retainers on the Ignition Lock Cylinder; the application of force on both retainers enables the lock cylinder to exit its housing. A small allen wrench tool or pick-type tool should be used to push the first retainer through the lock housing hole so the lock cylinder shifts slightly backward. Push the second retainer through the lock housing access hole which allows the lock cylinder to step backward. Pull the lock cylinder out enough to access the second retainer at hole and depress it again; the ignition cylinder must come free from the housing structure. Reposition the ignition cylinder between cycles to precisely position the retaining system correctly. After removal of the lock cylinder it is essential to code both the key and lock cylinder for installation. Place the lock cylinder into its run position by inserting it into the housing while you check that it rotates correctly. First reconnect the negative Battery Cable followed by enabling the sir system then reinstall the wipers/washer switch and steering column trim covers in place.

What are the features and assembly processes of the Ignition Lock Cylinder on Chevrolet Malibu?

All vehicle keys include dual-use features but master keys and valet keys incorporate safety transponders to connect with security systems as emergency keys function separately from these features to lock doors and the trunk. A five-digit key tag number generates the key code to unlock multiple locks or use the valet key only for front door access and ignition functions. Cutting key keys requires the use of blank keys that need precise depth and sequence cuts before mechanical inspections occur in every lock cylinder. Seven precise cuts exist in ignition lock cylinders where technicians must accurately position tumbler springs and tumblers then check their alignment with the cylinder's diameter followed by surface lubrication. The front side Door Lock cylinder operates with 7 cut positions under identical assembly and inspection guidelines as the rear compartment lid lock cylinder. The i/p storage compartment lock cylinder requires 4 cut positions as part of its configuration while it includes a stability-retaining tumbler. Lock cylinder assembly demands inserting tumbler springs followed by proper tumbler sequencing before performing lubrication checks and aligning components before final casing.

OEM Chevrolet Ignition Lock Cylinder

Ignition Key Lock Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

97 Ignition Lock Cylinders found

View related parts

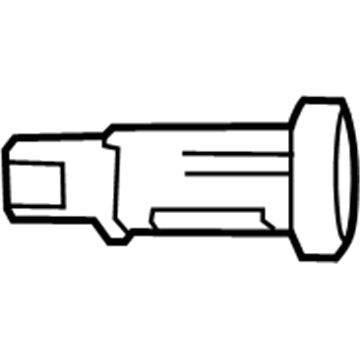

Chevrolet Ignition Lock Cylinder
Part Number: 15799769
$61.07 MSRP: $109.06
You Save: $47.99 (44%)
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Ignition Lock (Uncoded); Lock Cylinder; Cylinder & Keys; Cylinder, Ignition Switch
- Replaces: 88937315
Fits the following Chevrolet Models:
- Avalanche 1500 | 2002-2004 | Base, North Face, On Road Edition, WBH, Z66, Z71 | 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2004 | Base | 8 Cyl 8.1 L GAS
- Blazer | 2001-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- S10 | 2001-2004 | Base, LS, Xtreme, ZR2, ZR5 | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
- Silverado 1500 | 2001-2007 | Base, LS, LT, LTZ, SS, WT, Z71 Off-Road | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 Classic | 2007 | LS, LT, SS, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 HD | 2005-2006, 2001-2003 | Base, LS, LT | 8 Cyl 6.0 L GAS
- Silverado 1500 HD Classic | 2007 | LT | 8 Cyl 6.0 L GAS
- Silverado 2500 | 2001-2004 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Silverado 2500 HD | 2001-2007 | Base, LS, LT, LTZ, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More
View related parts

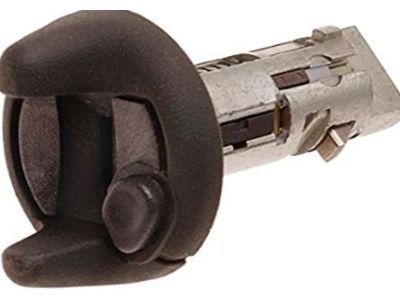

Chevrolet Ignition Lock Cylinder
Part Number: 12369498
$25.93 MSRP: $48.70
You Save: $22.77 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Ignition Switch; Lock Cylinder; Ignition Cylinder; Cylinder & Keys; Cylinder; Cylinder Kit, Ignition Switch
- Replaces: 26047294, 26050279, 26049498
Fits the following Chevrolet Models:
- Astro | 1996-1997 | Base, LS, LT | 6 Cyl 4.3 L GAS
- Blazer | 1995-1997 | Base, LS, LT | 6 Cyl 4.3 L GAS
- C1500 | 1995-1997 | Base, Cheyenne, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1995-1997 | Base, LS, LT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1995-1997 | Base, Cheyenne, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1995-1997 | Base, LS, LT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1995-1997 | Base, Cheyenne, Silverado | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Express 1500 | 1996-1997 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- Express 2500 | 1996-1997 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- Express 3500 | 1996-1997 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts

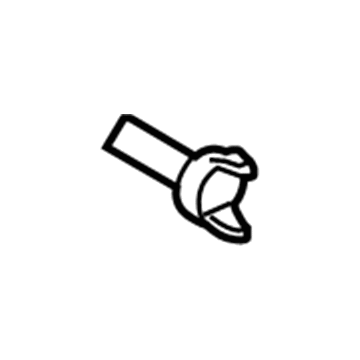

Chevrolet Ignition Lock Cylinder
Part Number: 15815961
$44.99 MSRP: $90.34
You Save: $45.35 (51%)
ADD TO CART
Product Specifications
- Other Name: Cylinder Kit-Ignition Lock (Uncoded); Lock Cylinder; Ignition Cylinder; Cylinder & Keys; Cylinder Kit, Ignition Switch
- Replaces: 12472980
Fits the following Chevrolet Models:
- Astro | 1999-2005 | Base, LS, LT | 6 Cyl 4.3 L GAS
- Avalanche 1500 | 2002-2004 | Base, North Face, On Road Edition, WBH, Z66, Z71 | 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2004 | Base | 8 Cyl 8.1 L GAS
- Blazer | 1998-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- Express 1500 | 1999-2007 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L GAS
- Express 2500 | 1999-2007 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL
- Express 3500 | 1999-2007 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
- P30 | 1999 | Base | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- S10 | 1998-2002 | Base, LS, SS, Xtreme, ZR2, ZR5 | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
- Silverado 1500 | 1999-2004 | Base, LS, LT, SS, WT, Z71 Off-Road | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View More
View related parts

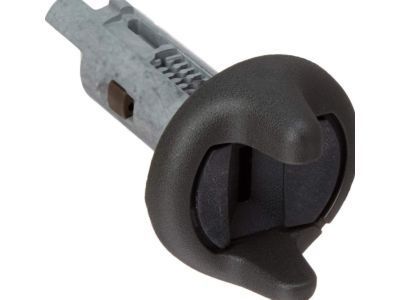

Chevrolet Ignition Lock Cylinder
Part Number: 15785100
$57.15 MSRP: $89.54
You Save: $32.39 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly-Ignition Lock (Uncoded); Lock Cylinder; Cylinder & Keys; Cylinder, Ignition Switch
- Replaces: 88956845
Fits the following Chevrolet Models:
- Avalanche 1500 | 2003-2006 | Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2003-2006 | Base, LS, LT | 8 Cyl 8.1 L GAS
- SSR | 2005-2006 | Base | 8 Cyl 6.0 L GAS
- Silverado 1500 | 2003-2007 | Base, Hybrid, LS, LT, LTZ, SS, WT, Z71 Off-Road | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 Classic | 2007 | Hybrid, LS, LT, SS, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 HD | 2005-2006, 2003 | Base, LS, LT | 8 Cyl 6.0 L GAS
- Silverado 1500 HD Classic | 2007 | LT | 8 Cyl 6.0 L GAS
- Silverado 2500 | 2003-2004 | Base, LS, LT, WT | 8 Cyl 6.0 L GAS
- Silverado 2500 HD | 2003-2007 | Base, LS, LT, LTZ, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Silverado 2500 HD Classic | 2007 | LS, LT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More
View related parts

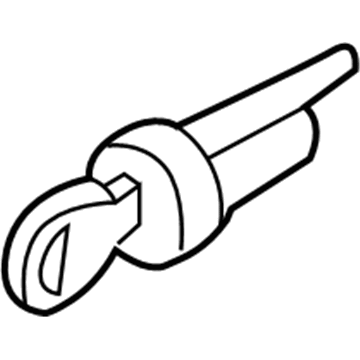

Chevrolet Ignition Lock Cylinder
Part Number: 15789011
$63.75 MSRP: $99.86
You Save: $36.11 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Kit, Ignition Lock (Uncoded); Lock Cylinder; Cylinder Kit, Ignition Switch
Fits the following Chevrolet Models:
- Trailblazer | 2002-2009 | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Trailblazer EXT | 2002-2006 | LS, LT, North Face | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts

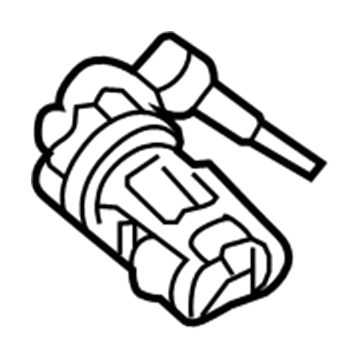

Chevrolet Ignition Lock Cylinder
Part Number: 12472981
$50.85 MSRP: $79.65
You Save: $28.80 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Ignition Lock; Cylinder & Keys; Cylinder Kit, Ignition Switch
Fits the following Chevrolet Models:
- Avalanche 1500 | 2002 | Base, North Face, On Road Edition, Z71 | 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002 | Base | 8 Cyl 8.1 L GAS
- Blazer | 1999-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- S10 | 1998-2002 | Base, LS, SS, Xtreme, ZR2, ZR5 | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
- Silverado 1500 | 1999-2002 | Base, LS, LT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Silverado 1500 HD | 2001-2002 | LS, LT | 8 Cyl 6.0 L GAS
- Silverado 2500 | 1999-2002 | Base, LS, LT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Silverado 2500 HD | 2001-2002 | Base, LS, LT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Silverado 3500 | 2001-2002 | Base, LS, LT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Suburban 1500 | 2000-2002 | Base, LS, LT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View More
View related parts

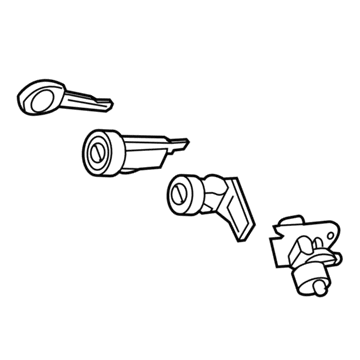

Chevrolet Ignition Lock Cylinder
Part Number: 12534415
$197.76 MSRP: $371.38
You Save: $173.62 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Ignition Switch; Lock Cylinder; Cylinder & Keys; Cylinder Kit, Ignition Switch
Fits the following Chevrolet Models:
- Cavalier | 1997-1999 | Base, LS, RS, Z24 | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
View related parts

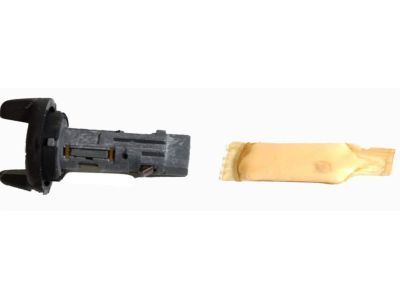

Chevrolet Ignition Cylinder
Part Number: 96801545
$209.14 MSRP: $378.54
You Save: $169.40 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Ignition Lock (W/Key); Ignition Lock Cylinder
Fits the following Chevrolet Models:
- Aveo | 2007-2008 | LS, LT | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Lock Set
Part Number: 95228633
$125.20 MSRP: $197.01
You Save: $71.81 (37%)
ADD TO CART
Product Specifications
- Other Name: Key Assembly-Door Lock & Ignition Lock; Lock Kit, Ignition Switch
- Replaces: 96439511
Fits the following Chevrolet Models:
- Aveo | 2007-2008 | LS, LT | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 42363748
$26.74 MSRP: $44.07
You Save: $17.33 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Kit-Ignition Lock (Uncoded); Ignition Cylinder; Cylinder Kit, Ignition Switch
Fits the following Chevrolet Models:
- Caprice | 2017 | PPV | 6 Cyl 3.6 L FLEX, 8 Cyl 6.0 L FLEX
- Sonic | 2018-2020 | LS, LT, Premier | 4 Cyl 1.4 L GAS, 4 Cyl 1.8 L FLEX, 4 Cyl 1.8 L GAS
- Trax | 2018-2020 | LS, LT, Premier | 4 Cyl 1.4 L GAS
View More
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 25832352
$170.26 MSRP: $267.90
You Save: $97.64 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Kit-Ignition Lock; Cylinder & Keys; Cylinder Kit, Ignition Switch
- Replaces: 12458795, 15822353
Fits the following Chevrolet Models:
- Cavalier | 2000-2005 | Base, LS, LS Sport, Z24 | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 12534765
$62.40 MSRP: $84.21
You Save: $21.81 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Kit, Ignition Lock (Uncoded); Cylinder & Keys; Cylinder Kit, Ignition Switch
Fits the following Chevrolet Models:
- Cavalier | 1996 | Base, LS, Z24 | 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 15799770
$44.81 MSRP: $70.20
You Save: $25.39 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Ignition Lock (Uncoded); Cylinder & Keys; Cylinder, Ignition Switch
- Replaces: 88937329
Fits the following Chevrolet Models:
- Blazer | 2001-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- S10 | 2001-2004 | Base, LS, Xtreme, ZR2, ZR5 | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
- Silverado 1500 | 2003 | Base, LS, LT, SS, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 HD | 2003 | LS, LT | 8 Cyl 6.0 L GAS
- Silverado 2500 | 2003 | Base, LS, LT | 8 Cyl 6.0 L GAS
- Silverado 2500 HD | 2003 | Base, LS, LT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Silverado 3500 | 2003 | Base, LS, LT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 25832353
$189.41 MSRP: $298.02
You Save: $108.61 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Kit-Ignition Lock; Cylinder & Keys; Cylinder Kit, Ignition Switch
- Replaces: 12458794, 15822352
Fits the following Chevrolet Models:
- Cavalier | 2000-2005 | Base, LS, LS Sport, Z24 | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 95194042
$46.55 MSRP: $72.91
You Save: $26.36 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing, Ignition Switch; Cylinder, Ignition Switch
Fits the following Chevrolet Models:
- Spark EV | 2015-2016 | LT | BATTERY EV (EV/BEV)
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 15789012
$34.97 MSRP: $85.97
You Save: $51.00 (60%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Kit, Ignition Lock (Uncoded); Lock Cylinder; Cylinder Kit, Ignition Switch
- Replaces: 88954645
Fits the following Chevrolet Models:
- SSR | 2003-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Trailblazer | 2002-2009 | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Trailblazer EXT | 2002-2006 | LS, LT, North Face | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 96414708
$28.32 MSRP: $44.32
You Save: $16.00 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Ignition Lock (W/Key); Lock Cylinder; Ignition Cylinder; Cylinder, Ignition Switch
Fits the following Chevrolet Models:
- Aveo | 2004-2008 | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS
- Aveo5 | 2007-2008 | LS, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Ignition Lock Cylinder
Part Number: 26049533
$37.48 MSRP: $66.92
You Save: $29.44 (44%)
Product Specifications
- Other Name: Cylinder Assembly, Ignition Lock; Cylinder & Keys; Cylinder; Cylinder, Ignition Switch
Fits the following Chevrolet Models:
- Blazer | 1997-1998 | Base, LS, LT | 6 Cyl 4.3 L GAS
- C1500 | 1998-1999 | Cheyenne, LS, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1998-1999 | Base, LS, LT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1998-2000 | Base, Cheyenne, LS, Silverado, WT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1998-1999 | Base, LS | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1998-2000 | Base, Cheyenne, LS, Silverado | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1998-1999 | Cheyenne, LS, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1998-1999 | Base, LS, LT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K2500 | 1998-2000 | Base, Cheyenne, LS, Silverado, WT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1998-1999 | Base, LS | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
Chevrolet Lock Set
Part Number: 96814259
Product Specifications
- Other Name: Cylinder, Door Outside Lock; Lock Kit, Ignition Switch
Fits the following Chevrolet Models:
- Aveo | 2009-2011 | LS, LT | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Lock Set
Part Number: 96439509
Product Specifications
- Other Name: Cylinder Unit, Lock; Lock Kit, Ignition Switch
Fits the following Chevrolet Models:
- Aveo | 2007-2008 | LS, LT | 4 Cyl 1.6 L GAS

| Page 1 of 5 |Next >

1-20 of 97 Results

Chevrolet Ignition Lock Cylinder Parts Questions & Experts Answers

Ignition Lock Cylinder
89022365
Q: How to replace the ignition lock cylinder on Chevrolet Colorado?
A: A mechanic will start ignition switch lock cylinder replacement by taking away steering column trim covers. Begin by placing the Ignition Lock Cylinder into the accessory position before you can use a pick tool's 90-degree tip to explore the access hole. The Ignition Lock Cylinder retaining pin requires downward pressure while you pull the Ignition Lock Cylinder away from the steering column. Start by turning the Ignition Lock Cylinder to the accessory position then push it into place with care for the retaining pin to lock it while replacing the steering column trim covers.
Ignition Lock Cylinder, Driver Side
20869121
Q: How to Properly Remove and Install an Ignition Lock Cylinder on Chevrolet Equinox?
A: For ignition switch lock cylinder replacement start by disconnecting the negative Battery Cable and disabling the sir system. Begin the repair by removing the steering column trim covers and the wipers/washer switch. Set the Ignition Lock Cylinder at the run position. There are two retainers on the Ignition Lock Cylinder; the application of force on both retainers enables the lock cylinder to exit its housing. A small allen wrench tool or pick-type tool should be used to push the first retainer through the lock housing hole so the lock cylinder shifts slightly backward. Push the second retainer through the lock housing access hole which allows the lock cylinder to step backward. Pull the lock cylinder out enough to access the second retainer at hole and depress it again; the ignition cylinder must come free from the housing structure. Reposition the ignition cylinder between cycles to precisely position the retaining system correctly. After removal of the lock cylinder it is essential to code both the key and lock cylinder for installation. Place the lock cylinder into its run position by inserting it into the housing while you check that it rotates correctly. First reconnect the negative Battery Cable followed by enabling the sir system then reinstall the wipers/washer switch and steering column trim covers in place.
Ignition Lock Cylinder, Green Line
20759306
Q: What are the features and assembly processes of the Ignition Lock Cylinder on Chevrolet Malibu?
A: All vehicle keys include dual-use features but master keys and valet keys incorporate safety transponders to connect with security systems as emergency keys function separately from these features to lock doors and the trunk. A five-digit key tag number generates the key code to unlock multiple locks or use the valet key only for front door access and ignition functions. Cutting key keys requires the use of blank keys that need precise depth and sequence cuts before mechanical inspections occur in every lock cylinder. Seven precise cuts exist in ignition lock cylinders where technicians must accurately position tumbler springs and tumblers then check their alignment with the cylinder's diameter followed by surface lubrication. The front side Door Lock cylinder operates with 7 cut positions under identical assembly and inspection guidelines as the rear compartment lid lock cylinder. The i/p storage compartment lock cylinder requires 4 cut positions as part of its configuration while it includes a stability-retaining tumbler. Lock cylinder assembly demands inserting tumbler springs followed by proper tumbler sequencing before performing lubrication checks and aligning components before final casing.
