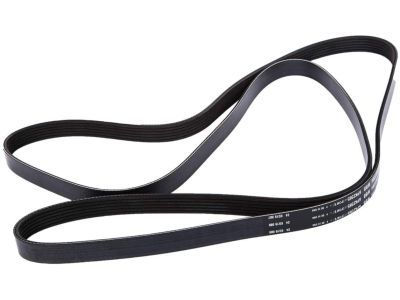

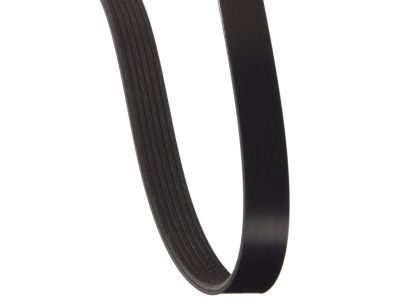

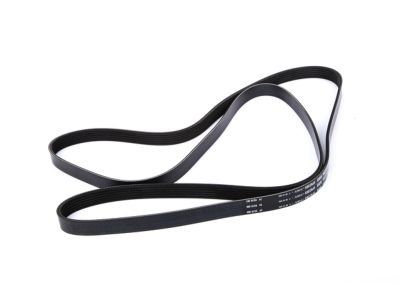

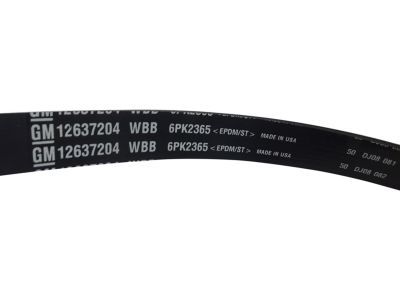

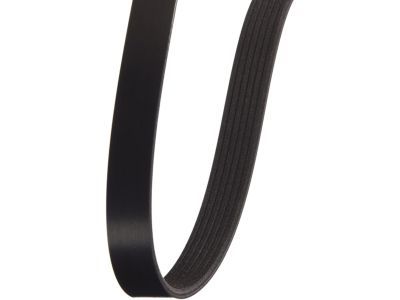

Serpentine Belt

First step for replacing the accessory Drive Belt involves removal of the air cleaner assembly. The next step requires removing the retaining bolt of the coolant recovery reservoir and placing the reservoir to the side. The replacement process requires users to attach the breaker bar with hex-head socket to the Drive Belt tensioner bolt then turn it clockwise to decrease belt tension. First remove the Drive Belt from its placement on the pulleys and from the Drive Belt tensioner. Then use a deliberate approach to reduce the Drive Belt tensioner tension. Clean all pulleys thoroughly before evaluating their belt surfaces when the tensioner bolt breaker bar with socket is detached. When putting the Drive Belt into position start by placing it around all pulleys but the idler pulley. Next use the breaker bar with hex-head socket to loosen the belt tensioner bolt through clockwise rotation. You need to install the Drive Belt below the idler pulley then slowly decrease the belt tensioner pressure through the breaker bar and hex-head socket. Before you position the coolant recovery reservoir you need to inspect and verify proper installation and alignment of the Drive Belt then install the retaining bolt and tighten it to 11 n.m (97 lb in). To complete the task reinstall the air cleaner assembly.

The first step to replace the accessory Drive Belt includes removing the air cleaner assembly followed by unbolted the coolant recovery reservoir's retaining bolt before putting the reservoir away. A breaker bar socket with hex-head attachment should be used to turn the Drive Belt tensioner bolt clockwise and reduce belt tension. Pry off the belt from the pulleys and the Drive Belt tensioner before you reduce the Drive Belt tensioner slowly. Before reinstalling the socket and breaker bar on the tensioner bolt perform surface inspections and cleaning operations on all pulley belts. Follow this procedure to install the Drive Belt by first routing it across all pulleys except the idler pulley and then applying a breaker bar with hex-head socket to untension the belt tensioner bolt through clockwise rotation. Place the Drive Belt under the idler pulley before dropping the tension from the belt tensioner by removing the breaker bar with socket. The Drive Belt should be checked for correct installation as well as ideal alignment before the coolant recovery reservoir gets placed and the retaining bolt gets tightened to 11 nm (97 inch lbs.). Reinstall the air cleaner assembly as the last installation step.

A 3/8 inch drive breaker bar enables users to install it on the drive belt tensioner arm while continuing to rotate it counterclockwise until the belt tension is released. Take away the belt out of its position at each pulley and direct the drive belt tensioner forward when replacing drive belts on A/C-less vehicles. Drivers with A/C units need to also strip their belts out of their way from the pulleys before continuing. Let go of the breaking force on the breaker bar as you remove it from the drive belt tensioner. Examine the belt surfaces on all pulleys before proceeding with further steps. Place the belt around all pulleys except the flat idler pulley before inserting the 3/8 inch drive breaker bar to the drive belt tensioner arm and rotating it counterclockwise. This action lets tension escape from the belt. Install belt placement under flat idler pulley when A/C is present; without A/C the belt should install to pulleys then to drive belt tensioner. View and inspect the belt installation after you have released the tension on the tensioner device by removing the breaker bar.

The starting step for replacing the a/c belt requires removing the accessory Drive Belt. You should use a breaker bar (Breaker Bar) to slowly turn the air conditioning (A/C) belt tensioner clockwise through the adapter opening for belt tension release. Before taking away the a/c belt from its pulleys and tensioner proceed with releasing the tension from the breaker bar. The surfaces of all pulleys need cleaning followed by inspection procedures. To install the a/c belt first position it on the crankshaft balancer while using the breaker bar to enter the a/c Drive Belt tensioner adapter opening and rotate the adapter clockwise until the belt tension releases. Set the a/c belt to achieve proper placement at both the idler pulley and a/c compressor pulley. After that, reduce the tension on the Drive Belt tensioner with the breaker bar until it can be properly removed. Check that the a/c belt has correct installation and alignment before you can install the accessory Drive Belt.

You need to begin by attaching a 3/8 inch drive breaker bar to the drive belt tensioner arm and turn it counterclockwise to decrease belt tension. Vehicle owners should remove the belt from both pulleys and the drive belt tensioner when not using air conditioning systems. Remove the breaker bar as you slow down the process of tension release on the drive belt tensioner. Check the belt surfaces of all pulleys after cleaning them. You should first direct the belt to run past all pulleys except the flat idler. After that, position the 3/8 inch drive breaker bar onto the drive belt tensioner arm before rotating the tensioner counterclockwise to free belt tension. The belt installation process requires that you put the belt under the flat idler pulley when your car has A/C but you should position the belt in front of the pulleys and drive belt tensioner if it does not have A/C. After controlling the tension on the belt tensioner remove the breaker bar. Then check that the drive belt shows proper installation while maintaining alignment between the pulleys.

The accessory Drive Belt replacement process begins by loosening the air cleaner outlet duct clamps at the Throttle Body and mass airflow/intake air temperature sensor before removing the radiator inlet hose clip from the outlet duct and taking out the air cleaner outlet duct. A breaker bar equipped with a hex-head socket enables you to turn the Drive Belt tensioner bolt clockwise which reduces belt tension. Begin by taking out the belt from its pulley position followed by the Drive Belt tensioner before you release the tension from the tensioner while also removing the socket and breaker bar. Inspect the belt surfaces across all pulleys while performing cleaning operations. The installation process starts by directing the Drive Belt between all pulleys except the idler pulley followed by attaching the breaker bar with hex-head socket to the belt tensioner bolt and using clockwise rotation to reduce tension. After installing the Drive Belt around the idler pulley workers should slowly release tension from the belt tensioner followed by removing both the breaker bar and socket. Before installing the air cleaner outlet duct check that the arrow at the Throttle Body end points toward the Throttle Body attaching stud and that its position is correct. The last step involves fastening the radiator inlet hose clip to the outlet duct then securing all the air cleaner outlet duct clamps at the Throttle Body and maf/iat sensor locations while tightening clamp screws to 7 nm (62 inch lbs.).

Remove the A/C belt from the pulleys.

First, remove the accessory drive belt and raise the vehicle securely.

Use a ratchet in the A/C belt tensioner adapter opening to rotate the tensioner clockwise.

Use a breaker bar with a hex-head socket on the drive belt tensioner bolt and rotate it clockwise.

Rotate the A/C belt tensioner clockwise to relieve tension on the belt and remove the A/C belt from the pulleys.

Reinstall the breaker bar with the hex-head socket onto the belt tensioner bolt and rotate it clockwise to relieve tension.

First, remove the accessory drive belt.

Remove the A/C belt from the pulleys.

Remove the A/C belt from the pulleys and slowly release the tension on the A/C belt tensioner before removing the ratchet.

Route the drive belt around all the pulleys except the idler pulley, then install the breaker bar with hex-head socket on the belt tensioner bolt and rotate it clockwise to relieve tension.

The belt installation tool will release from the belt.

Inspect for correct installation on the pulleys, avoiding any mix-positioning by one or more grooves.

Remove the belt from the pulleys and tensioner, then slowly release the tension on the drive belt tensioner and remove the breaker bar and socket.

Slowly release the tension on the A/C belt tensioner, remove the ratchet, and clean and inspect the belt surfaces of all pulleys.

Use a wrench to rotate the drive belt tensioner clockwise and then remove the drive belt.

Install the radiator inlet hose clip and tighten the air cleaner outlet duct clamps at the throttle body and MAF/IAT sensor, ensuring the clamp screws are tightened to 7 Nm (62 inch lbs.).

Slowly release the tension on the A/C belt tensioner, remove the ratchet, and clean and inspect the belt surfaces of all pulleys.

Clean and inspect the belt surfaces of all the pulleys.

Remove the breaker bar and socket, then inspect the drive belt for proper installation and alignment.

Route the drive belt around all the pulleys except the idler pulley.

Place the A/C belt around the crankshaft balancer, then use a ratchet in the A/C drive belt tensioner adapter opening to rotate the tensioner clockwise again.

Slowly release the tension on the A/C belt tensioner, remove the ratchet, and clean and inspect the belt surfaces of all pulleys.

Reinstall the breaker bar with hex-head socket to the belt tensioner bolt, rotate the tensioner clockwise to relieve tension, and place the drive belt under the idler pulley.

Connect the radiator inlet hose clip to the outlet duct, and tighten the air cleaner outlet duct clamps at the throttle body and the MAF/IAT sensor to 4 Nm (35 inch lbs.).

The belt installation tool will release from the belt.

Install the drive belt under the idler pulley and slowly release the tension on the belt tensioner before removing the breaker bar and socket.

Clean and inspect the belt surfaces of all the pulleys.

Place the A/C belt around the crankshaft balancer and use the ratchet to rotate the A/C belt tensioner clockwise to relieve tension.

Remove the A/C belt from the pulleys.

Install the A/C belt over the idler pulley and around the A/C compressor pulley.

Remove the belt from the pulleys and the drive belt tensioner, then slowly release the tension on the drive belt tensioner.

Use a ratchet in the A/C belt tensioner adapter opening to rotate the tensioner clockwise.

First, remove the accessory drive belt.

Slowly release the tension again.

Clean and inspect the belt surfaces of all the pulleys.
