How to replace the Neutral Safety Switch on Chevrolet Colorado?

To replace the park/neutral back up switch, start by using the parking brake, while moving the transmission to neutral. Lift and apply support to the vehicle and remove the nut holding the transmission control lever to the manual shaft, then pull off the lever. Loosen the electrical connector from the switch and take out the bolts that hold the park/neutral back up switch down at the transmission. If the switch won't slide off the manual shaft you want to file any burrs from the outside of the manual shift shaft. Mount the new park/neutral back up switch onto the transmission manual shaft, lining up the switch hub flats with the manual shaft flats, and sliding it from until the mounting bracket contacts the transmission bosses. However, if there is a new switch that needs installation, the positive assurance bracket will align it accordingly, and a park neutral switch aligner ( J 41364-A) is not needed. Loosen the two bolts for the park/neutral back up switch, and position the park neutral switch aligner (J 41364-A) on the switch by placing the slots against the tool's tabs. .rotate until the upper locator pin of the tool lines up with the slot on the switch, then tighten the bolts to 27 n.m (20 lb ft). However, remove the park neutral switch aligner (J 41364-A), and if necessary, the positive assurance bracket. Reconnect the electrical connector back to the switch and reinstall the transmission control lever to the manual shaft secured with the nut of 20 n.m (15 lb ft). Lower the vehicle, adjust the automatic transmission range selector cable and check the switch for the right operation that ensures that the engine runs only when the vehicle's p (PARK) or n (NEUTRAL) position is reached. Change the switch if it does not work correctly.

How to Ensure Proper Functioning of the Neutral Safety Switch on Chevrolet Equinox?

The first step to replace the transaxle range switch is to remove the battery tray. Check the transaxle manual shaft in the neutral (N) while engaging the park brake and the control shift lever in neutral (N). Then take off the range switch lever transaxle and unplug the electrical connectors (3, 5) from the range switch. Use a screwdriver to bend down the lockwasher tabs toward the nut, and then remove nut lock tab washer and flat washer from manual shaft in that same order. Follow up with the elimination of the transaxle range switch bolt , stud , and flat washers as well as the transaxle range switch . For installation, the transaxle range switch is attached from the manual shaft lever, the washer stud and the bolt , hand threading should be done at this stage only. Install the flat washer, lock tab washer, and m, while tightening the nut to 7 Nm (62 inch lbs.). Make sure manual shaft is still in neutral (N) and bend the lock washer tabs to fasten the nut. Utilize the J 45404 Transmission Indicator Alignment Tool (J 45404) on the manual shaft, and turn the transaxle range switch until the neutral base-line on the switch lines up with the indicator line on the J 45404. Tighten the transaxle range switch bolt and stud to 25 Nm (18 ft. lbs.) then remove the J 45404 from manual shaft. Reconnect the electrical connectors (3, 5) back to the transaxle range switch, replace the transaxle range switch lever, and ultimately replace the battery tray. Once you are done with the installation and adjustment, ensure the engine starts only in park (P) or neutral (N); if it begins else where, start by moving the switch.

How to replace the Neutral Safety Switch on Chevrolet Malibu?

To replace the pnp switch, the first step is disconnecting the switch electrical connector while removing the attaching bolts and the park/neutral position switch assembly. For installation, set the shift shaft to the park/neutral position, and line up the flats on the shift shaft with those on park/neutral switch. Mount the park/neutral position switch mounting bolts and tighten them to 24 nm (18 ft. Lbs.). Connect the switch electrical connector while the engine starts only in p (Park) or n (Neutral); the previous step does not make any sense - if exercises are performed an abnormal way, the switch will have to be set in multiple positions which can cause improper training. The exercises should be readjusted to have everything right. Next, align the transmission control shifter assembly into the n (Neutral) notch in the detent plate, loosen attaching bolts for the park/neutral position switch and rotate the switch onto the shifter assembly to position the service adjustment pacing the cast hole with the carrier tang hole. Insert a 2.34mm (3/32 inch) maximum diameter gauge pin to a depth of 9.0mm (9/64 inch) and tighten the bolts to 24 nm (18 ft. Lbs. Konnte).

OEM Chevrolet Neutral Safety Switch

Transmission Neutral Safety Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

94 Neutral Safety Switches found

View related parts

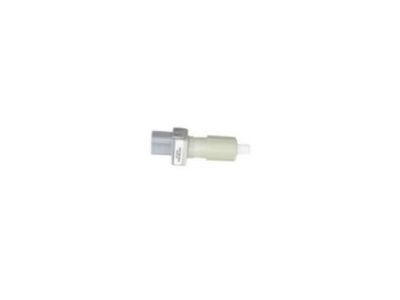

Chevrolet Range Sensor Part Number: 25188089
$95.41 MSRP: $162.43
You Save: $67.02 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Transmission Safety Starting Switch Or Speed Sensing; Switch, Transmission Safety Start/Warning
Fits the following Chevrolet Models:
- Spark | 2013 | LS, LT | 4 Cyl 1.2 L GAS
View related parts

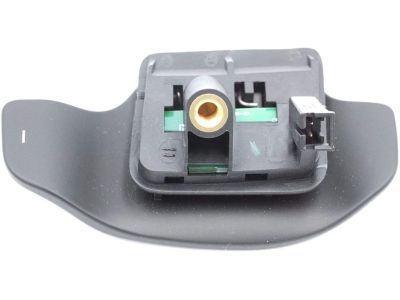

Chevrolet Paddle Switch, Driver Side Part Number: 13297281
$29.46 MSRP: $46.13
You Save: $16.67 (37%)
ADD TO CART
Product Specifications
- Other Name: Switch, Automatic Transmission Manual Shift Auxiliary Position; Switch, Transmission Control
- Position: Driver Side
Fits the following Chevrolet Models:
- Camaro | 2012-2015 | LS, LT, SS, Z/28, ZL1 | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts

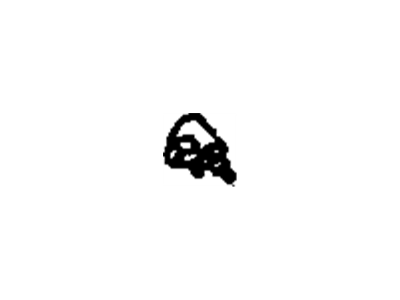

Chevrolet Neutral Safety Switch Part Number: 14094368
$14.91 MSRP: $24.54
You Save: $9.63 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch; Back Up Light Switch; Clutch Switch; Back-Up Switch; Transmission Safety Starting Switch; Engine Clutch Hydraulic Release; Cruise Control.
Fits the following Chevrolet Models:
- Blazer | 1992-1995 | Base, Cheyenne, Silverado, Silverado Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C1500 | 1991-1996 | 454 SS, Base, Cheyenne, Scottsdale, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C1500 Suburban | 1992-1996 | Base, LS, LT, Silverado | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1991-1996 | Base, Cheyenne, Scottsdale, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1996 | Base, LS, LT, Silverado | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1991-1996 | Base, Cheyenne, Scottsdale, Silverado | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Camaro | 1993-2002, 1987-1991 | Base, Indianapolis 500 Pace Car, Iroc-Z, LT, RS, Sport, Z28, Z28 SS | 6 Cyl 2.8 L GAS, 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- Cavalier | 1995-2005 | Base, LS, LS Sport, RS, Z24 | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS, 4 Cyl 2.3 L GAS, 4 Cyl 2.4 L GAS
- Corvette | 1997-2007 | 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 7.0 L GAS
- K1500 | 1991-1996 | Base, Cheyenne, Scottsdale, Silverado, Sport, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
View More
View related parts

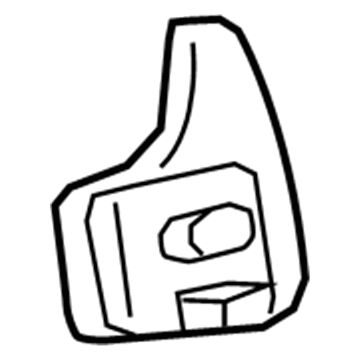

Chevrolet Paddle Switch, Red, Driver Side Part Number: 23272735
$95.84 MSRP: $150.01
You Save: $54.17 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Safety Starting Switch Or Speed Sensing; Transmission Range Sensor; Switch, Transmission Safety Start/Warning
- Position: Driver Side
Fits the following Chevrolet Models:
- Corvette | 2016-2017 | Grand Sport, Stingray, Z06 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Neutral Safety Switch Part Number: 24258550
$36.75 MSRP: $53.51
You Save: $16.76 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Transmission Control; Range Sensor; Switch, Throttle Control (Electric)
- Replaces: 24242938, 24246427
Fits the following Chevrolet Models:
- Colorado | 2015-2022 | Base, LT, WT, Z71, ZR2 | 4 Cyl 2.5 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
- Express 2500 | 2021-2023 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
- Express 3500 | 2021-2023 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
- Silverado 2500 HD | 2020-2023 | Custom, High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Silverado 3500 HD | 2020-2023 | High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View More
View related parts

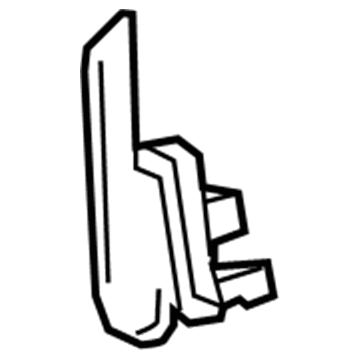

Chevrolet Clutch Switch Part Number: 22734989
$21.21 MSRP: $34.72
You Save: $13.51 (39%)
ADD TO CART
Product Specifications
- Other Name: Switch Assembly-Clutch Pedal Position; Switch, Transmission Safety Starting Switch Or Speed Sensing; Switch, Transmission Safety Start/Warning
Fits the following Chevrolet Models:
- Cobalt | 2006-2007 | LS, LT, LTZ, SS | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
View related parts

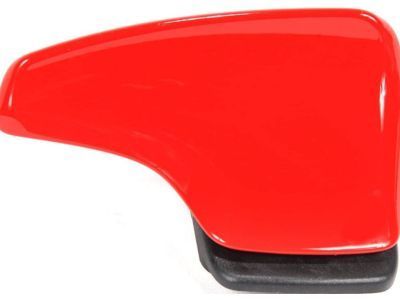

Chevrolet Paddle Switch Part Number: 92245832
$28.15 MSRP: $31.97
You Save: $3.82 (12%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Automatic Transmission Manual Shift Auxiliary Position; Transmission Range Sensor; Switch, Transmission Control
- Replaces: 92225254
Fits the following Chevrolet Models:
- Camaro | 2010-2011 | LS, LT, SS | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Clutch Switch Part Number: 96628564
$28.72 MSRP: $47.32
You Save: $18.60 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Cruise Control Selector; Clutch Pedal Position Switch; Switch, Transmission Safety Starting Switch Or Speed Sensing; Switch, Transmission Safety Start/Warning
Fits the following Chevrolet Models:
- Aveo | 2006-2008 | LS, LT, Special Value | 4 Cyl 1.6 L GAS
- Aveo5 | 2007-2008 | LS, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Clutch Switch Part Number: 15101582
$27.92 MSRP: $46.00
You Save: $18.08 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Cruise Control Selector; Switch, Transmission Safety Starting Switch Or Speed Sensing; Switch, Transmission Safety Start/Warning
Fits the following Chevrolet Models:
- Colorado | 2004-2007 | Base, LS, LT, Sport, Sport LS, WT, Z71, Z71 LS, Z85, Z85 LS | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts
Chevrolet Neutral Safety Switch Part Number: 19151835
$38.97 MSRP: $70.55
You Save: $31.58 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Back Up Lamp; Switch, Transmission Safety Starting or Speed Sensing; Safety Start/Warning Switch.
Fits the following Chevrolet Models:
- Silverado 1500 | 2009-2010 | LS, LT, LTZ, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
- Silverado 2500 HD | 2009-2010 | LT, LTZ, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Silverado 3500 HD | 2009-2010 | LT, LTZ, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts
Chevrolet Neutral Safety Switch Part Number: 94023971
$21.16 MSRP: $33.60
You Save: $12.44 (38%)
ADD TO CART
Product Specifications
- Other Name: Switch, Door Window; Switch, Transmission Safety Starting Switch Or Speed Sensing
Fits the following Chevrolet Models:
- Spectrum | 1985-1988 | Base, CL, CL Plus, Express, Turbo | 4 Cyl 1.5 L GAS
View related parts
Chevrolet Neutral Safety Switch Part Number: 94852667
$18.34 MSRP: $34.44
You Save: $16.10 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Cruise Control Selector; Clutch Switch; Switch, Transmission Safety Starting Switch Or Speed Sensing; Switch, Transmission Safety Start/Warning
Fits the following Chevrolet Models:
- Prizm | 1998-2002 | Base, LSi | 4 Cyl 1.8 L GAS
View related parts
Chevrolet Back-Up Switch Part Number: 94536202
$13.26 MSRP: $21.83
You Save: $8.57 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly-Back Up Lamp; Back Up Light Switch; Switch, Back Up Lamp
Fits the following Chevrolet Models:
- Spark | 2016-2021 | ACTIV, LS, LT | 4 Cyl 1.4 L GAS
View related parts
Chevrolet Switch Part Number: 23190137
$26.69 MSRP: $43.97
You Save: $17.28 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Transmission Safety Start/Warning; Switch, Transmission Safety Starting Switch Or Speed Sensing; Switch, Transmission Shift Brake Interlock
- Replaces: 26054721
Fits the following Chevrolet Models:
- Avalanche 1500 | 2002-2006 | Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2006 | Base, LS, LT | 8 Cyl 8.1 L GAS
- Silverado 1500 | 1999-2006 | Base, Hybrid, LS, LT, SS, WT, Z71 Off-Road | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 Classic | 2007 | Hybrid | 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV)
- Silverado 1500 HD | 2005, 2001-2003 | Base, LS, LT | 8 Cyl 6.0 L GAS
- Silverado 2500 | 1999-2004 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Silverado 2500 HD | 2001-2005 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Silverado 3500 | 2001-2005 | Base, LS, LT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Suburban 1500 | 2000-2006 | Base, LS, LT, LTZ, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Suburban 2500 | 2000-2006 | Base, LS, LT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View More
View related parts
Chevrolet Back-Up Switch Part Number: 95216947
$16.92 MSRP: $26.86
You Save: $9.94 (38%)
ADD TO CART
Product Specifications
- Other Name: Switch, Back Up Lamp; Back Up Light Switch; Switch, Instrument Panel/Interior Lamp Switch
Fits the following Chevrolet Models:
- Spark | 2013-2015 | LS, LT | 4 Cyl 1.2 L GAS
View related parts
Chevrolet Paddle Switch, Driver Side Part Number: 23162572
$51.31 MSRP: $77.40
You Save: $26.09 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Safety Starting Switch Or Speed Sensing; Transmission Range Sensor; Switch, Transmission Safety Start/Warning; Switch, Transmission Control Cable; Switch, Transmission Control
- Position: Driver Side
- Replaces: 22905832
Fits the following Chevrolet Models:
- Corvette | 2014 | Stingray | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Paddle Switch, Passenger Side Part Number: 23156477
$21.07 MSRP: $32.97
You Save: $11.90 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Automatic Transmission Manual Shift Auxiliary Position; Transmission Range Sensor; Switch, Transmission Control
- Position: Passenger Side
- Replaces: 13297283
Fits the following Chevrolet Models:
- Camaro | 2012-2015 | LS, LT, SS, Z/28, ZL1 | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Paddle Switch, Red, Driver Side Part Number: 23272739
$95.84 MSRP: $150.01
You Save: $54.17 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Safety Starting Switch Or Speed Sensing; Transmission Range Sensor; Switch, Transmission Safety Start/Warning; Switch, Transmission Control
- Position: Driver Side
Fits the following Chevrolet Models:
- Corvette | 2018-2019 | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Paddle Switch, Yellow, Driver Side Part Number: 23272741
$99.76 MSRP: $150.50
You Save: $50.74 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Safety Starting Switch Or Speed Sensing; Transmission Range Sensor; Switch, Transmission Safety Start/Warning; Switch, Transmission Control
- Position: Driver Side
Fits the following Chevrolet Models:
- Corvette | 2016-2019 | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Paddle Switch, Passenger Side Part Number: 23162573
$51.12 MSRP: $80.02
You Save: $28.90 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Safety Starting Switch Or Speed Sensing; Transmission Range Sensor; Switch; Switch, Transmission Safety Start/Warning; Switch, Transmission Control Cable; Switch, Transmission Control
- Position: Passenger Side
- Replaces: 22905833
Fits the following Chevrolet Models:
- Camaro | 2016-2022 | LS, LT, LT1, SS, ZL1 | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
- Corvette | 2014 | Stingray | 8 Cyl 6.2 L GAS

| Page 1 of 5 |Next >

1-20 of 94 Results

Chevrolet Neutral Safety Switch

Want to cut long-term maintenance and repair costs? Choose OEM Neutral Safety Switch. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Neutral Safety Switch includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Neutral Safety Switch Parts Questions & Experts Answers

Neutral Safety Switch
24221125
Q: How to replace the Neutral Safety Switch on Chevrolet Colorado?
A:
To replace the park/neutral back up switch, start by using the parking brake, while moving the transmission to neutral. Lift and apply support to the vehicle and remove the nut holding the transmission control lever to the manual shaft, then pull off the lever. Loosen the electrical connector from the switch and take out the bolts that hold the park/neutral back up switch down at the transmission. If the switch won't slide off the manual shaft you want to file any burrs from the outside of the manual shift shaft. Mount the new park/neutral back up switch onto the transmission manual shaft, lining up the switch hub flats with the manual shaft flats, and sliding it from until the mounting bracket contacts the transmission bosses. However, if there is a new switch that needs installation, the positive assurance bracket will align it accordingly, and a park neutral switch aligner ( J 41364-A) is not needed. Loosen the two bolts for the park/neutral back up switch, and position the park neutral switch aligner (J 41364-A) on the switch by placing the slots against the tool's tabs. .rotate until the upper locator pin of the tool lines up with the slot on the switch, then tighten the bolts to 27 n.m (20 lb ft). However, remove the park neutral switch aligner (J 41364-A), and if necessary, the positive assurance bracket. Reconnect the electrical connector back to the switch and reinstall the transmission control lever to the manual shaft secured with the nut of 20 n.m (15 lb ft). Lower the vehicle, adjust the automatic transmission range selector cable and check the switch for the right operation that ensures that the engine runs only when the vehicle's p (PARK) or n (NEUTRAL) position is reached. Change the switch if it does not work correctly.
Neutral Safety Switch
24220734
Q: How to Ensure Proper Functioning of the Neutral Safety Switch on Chevrolet Equinox?
A:
The first step to replace the transaxle range switch is to remove the battery tray. Check the transaxle manual shaft in the neutral (N) while engaging the park brake and the control shift lever in neutral (N). Then take off the range switch lever transaxle and unplug the electrical connectors (3, 5) from the range switch. Use a screwdriver to bend down the lockwasher tabs toward the nut, and then remove nut lock tab washer and flat washer from manual shaft in that same order. Follow up with the elimination of the transaxle range switch bolt , stud , and flat washers as well as the transaxle range switch . For installation, the transaxle range switch is attached from the manual shaft lever, the washer stud and the bolt , hand threading should be done at this stage only. Install the flat washer, lock tab washer, and m, while tightening the nut to 7 Nm (62 inch lbs.). Make sure manual shaft is still in neutral (N) and bend the lock washer tabs to fasten the nut. Utilize the J 45404 Transmission Indicator Alignment Tool (J 45404) on the manual shaft, and turn the transaxle range switch until the neutral base-line on the switch lines up with the indicator line on the J 45404. Tighten the transaxle range switch bolt and stud to 25 Nm (18 ft. lbs.) then remove the J 45404 from manual shaft. Reconnect the electrical connectors (3, 5) back to the transaxle range switch, replace the transaxle range switch lever, and ultimately replace the battery tray. Once you are done with the installation and adjustment, ensure the engine starts only in park (P) or neutral (N); if it begins else where, start by moving the switch.
Neutral Safety Switch
12450161
Q: How to replace the Neutral Safety Switch on Chevrolet Malibu?
A:
To replace the pnp switch, the first step is disconnecting the switch electrical connector while removing the attaching bolts and the park/neutral position switch assembly. For installation, set the shift shaft to the park/neutral position, and line up the flats on the shift shaft with those on park/neutral switch. Mount the park/neutral position switch mounting bolts and tighten them to 24 nm (18 ft. Lbs.). Connect the switch electrical connector while the engine starts only in p (Park) or n (Neutral); the previous step does not make any sense - if exercises are performed an abnormal way, the switch will have to be set in multiple positions which can cause improper training. The exercises should be readjusted to have everything right. Next, align the transmission control shifter assembly into the n (Neutral) notch in the detent plate, loosen attaching bolts for the park/neutral position switch and rotate the switch onto the shifter assembly to position the service adjustment pacing the cast hole with the carrier tang hole. Insert a 2.34mm (3/32 inch) maximum diameter gauge pin to a depth of 9.0mm (9/64 inch) and tighten the bolts to 24 nm (18 ft. Lbs. Konnte).
