Make sure this part fits

GM 19330399
Upper Control Arm, Front Driver Side

2002-2009 GM

Customer Questions & Expert Answers (25)
GM 19330399 Upper Control Arm, Front Driver Side
GM 19330399 Upper Control Arm, Front Driver Side
GM 19330399 Upper Control Arm, Front Driver Side
GM 19330399 Upper Control Arm, Front Driver Side
  • Part Description
    Arm Assembly, Front Upper Control; Suspension Control Arm; Control Arm
  • Position
    Front Upper Driver Side
  • Replaces
    15077244, 15858682, 15158962, 15298272, 25786774, 15080913
  • Manufacturer
    General Motors
Make sure this part fits
$107.58 MSRP: $183.15
You Save: $75.57 (42%)
Ships in 1-2 Business Days
1
ADD TO CART

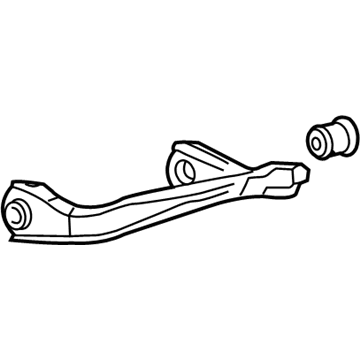

  • 19330399 Upper Control Arm, Front Driver Side is Ref No. 1 in the diagram below

    2006 Chevy SSR Upper Control Arm, Front Driver Side Diagram for 19330399
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 19330399

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2007 Buick RainierCXL, CXL Plus6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2003-2006 Chevrolet SSRBase8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2002-2009 Chevrolet TrailblazerBase, LS, LT, LTZ, North Face, SS6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2002-2006 Chevrolet Trailblazer EXTLS, LT, North Face6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2009 GMC EnvoyDenali, SLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2006 GMC Envoy XLDenali, SLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2004-2005 GMC Envoy XUVSLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2002-2004 Oldsmobile BravadaBase6 Cyl 4.2 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 19330399 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 19330399 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    What are the final steps after installing the rear axle upper control arm for the 2005 Buick Rainier? Posted by Customer
    A:
    Remove the rear axle support, reinstall the wheelhouse panel, put the tire and wheel back on, and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after placing the upper control arm in position for the 2005 Buick Rainier? Posted by Customer
    A:
    Gently pry out on the inner fender to access the forward-facing bolt and install the upper control arm mounting bolts, tightening them to 150 Nm (111 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done if it is equipped with air suspension after installation for the 2007 Buick Rainier? Posted by Customer
    A:
    Reconnect the air suspension leveling sensor link to the rear axle upper control arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the first step to replace the lower control arm for the 2004 Buick Rainier? Posted by Customer
    A:
    Begin by raising and supporting the vehicle, then remove the tire and wheel.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be observed while tightening the bolts for the 2006 Buick Rainier? Posted by Customer
    A:
    The Fastener Notice in Service Precautions.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the installation process for the upper control arm for the 2006 Buick Rainier? Posted by Customer
    A:
    Position the upper control arm, gently pry out on the inner fender to access the forward-facing bolt, install the upper control arm mounting bolts, and tighten them to 150 Nm (111 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after installing the upper control arm for the 2003 Chevrolet SSR? Posted by Customer
    A:
    Install the upper control arm mounting bolts and tighten them to 150 Nm (111 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the torque specification for the stabilizer shaft link retaining nut for the 2004 Chevrolet SSR? Posted by Customer
    A:
    Tighten it to 145 Nm (107 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the next step after raising the rear axle for the 2006 Chevrolet SSR? Posted by Customer
    A:
    Remove the rear axle lower control arm from the axle mounting nut and bolt.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What important notice should be adhered to during this process for the 2005 Chevrolet SSR? Posted by Customer
    A:
    The Fastener Notice in Service Precautions.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be removed after the axle mounting bolt and nut for the 2006 Chevrolet SSR? Posted by Customer
    A:
    The rear axle upper control arm to frame mounting bolt.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the first step in the installation process of the rear axle upper control arm for the 2003 Chevrolet SSR? Posted by Customer
    A:
    Install the rear axle upper control arm and hand-tighten it to the frame.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    How do you remove the upper control arm for the 2002 Chevrolet Trailblazer? Posted by Customer
    A:
    Remove the upper control arm mounting bolts and take out the upper control arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    How should the lower control arm be aligned during installation for the 2006 GMC Envoy? Posted by Customer
    A:
    Ensure the lower control arm is parallel to the lower control arm bracket during installation and tightening.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    How do you remove the rear axle lower control arm for the 2005 GMC Envoy? Posted by Customer
    A:
    Take off the axle mounting nut and bolt, followed by the frame mounting nut and bolt, and then take out the lower control arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    How do you connect the shock module yoke to the lower control arm for the 2005 Chevrolet Trailblazer? Posted by Customer
    A:
    Connect the shock module yoke and install the shock module yoke lower mounting nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    How do you remove the rear axle lower control arm for the 2004 Chevrolet Trailblazer? Posted by Customer
    A:
    Detach the nut and bolt from the axle mounting and then from the frame mounting, followed by removing the lower control arm itself.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the next step after removing the lower control arm for the 2009 Chevrolet Trailblazer? Posted by Customer
    A:
    Install the new lower control arm and secure it to the frame mounting nut and bolt, following fastener caution guidelines.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be removed after raising for the 2006 GMC Envoy? Posted by Customer
    A:
    The tire and wheel, followed by the wheelhouse panel.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the first step to replace the rear axle upper control arm for the 2009 Chevrolet Trailblazer? Posted by Customer
    A:
    Raise and support the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after placing the new upper control arm for the 2008 GMC Envoy? Posted by Customer
    A:
    Gently pry out on the inner fender to access the forward-facing bolt and install the upper control arm mounting bolts, tightening them to 146 N.m (108 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the next step after supporting the rear axle for the 2003 GMC Envoy? Posted by Customer
    A:
    Remove the rear axle upper control arm to axle mounting bolt and nut, then the rear axle upper control arm to frame mounting bolt, and finally take out the rear axle upper control arm.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after removing the upper control arm mounting bolts for the 2009 GMC Envoy? Posted by Customer
    A:
    Remove the upper control arm itself.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    Q:
    What is the procedure for installing the stabilizer shaft link for the 2007 GMC Envoy? Posted by Customer
    A:
    Install the stabilizer shaft link and washer to the lower control arm, followed by the stabilizer shaft link retaining nut, tightening it to 155 N.m (114 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Upper Control Arm, Front Driver Side 19330399 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 19330399 Upper Control Arm, Front Driver Side is available in the market under the name GM Control Arm. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 19330399 Upper Control Arm, Front Driver Side fits certain Chevrolet SSR, Trailblazer, Trailblazer EXT models, as well as GMC Envoy, Envoy XL, Envoy XUV. Additionally, it is compatible with Buick Rainier and Oldsmobile Bravada models.
The original GM component designated by manufacturer part number 19330399 maintains top performance when functioning as the Arm Assembly, Front Upper Control; Suspension Control Arm; Control Arm unit at its Front Upper Driver Side. The component 19330399 is constructed from durable material and its dimensions span 2.8 x 12.7 x 11.4 inches while weighing 5.90 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Arm, Steering Knuckle Upper & Lower Control. The part 19330399 has available replacement options 15077244, 15858682, 15158962, 15298272, 25786774, 15080913. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
