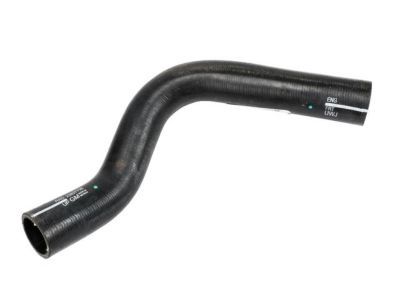

GM 22827735

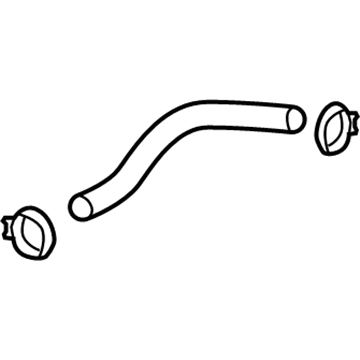

Lower Hose

As the first step for inlet Radiator Hose replacement you must drain the cooling system content. To perform this task loosen the air cleaner outlet duct clamps which secure both the Throttle Body and mass airflow/intake air temperature sensor before you remove the duct. Examine the engine sight shield for removal in case it is needed. Start by detaching the radiator vent inlet hose from its clips on the radiator while also moving its clamp to the radiator and finally removing the hose from the radiator. The next step involves removing the inlet hose clip from the Fan Shroud after repositioning the inlet hose clamp from the water outlet to extract the inlet hose from the water outlet. The inlet hose must be fitted to the water outlet before adjusting the outlet hose clamp. Reposition the Fan Shroud inlet hose clip before you join the inlet hose to the radiator and position its clamp. Reconnect the radiator vent inlet hose to the radiator inlet hose clips before putting back engine sight shields when needed as long as the duct outlet arrow faces the Throttle Body stud. Finish the installation by attaching the air cleaner outlet duct while tightening clamps to 7 nm at the Throttle Body and maf/iat sensor position. Then proceed to fill the cooling system.

The first step to replace radiator inlet hose on 4.3l engines is to drain the cooling system. The first step involves disconnecting the maf/intake air temperature sensor assembly from the air inlet tube through unclipping the hose clamps before releasing the positive crankcase ventilation hose from the air cleaner duct. The air inlet tube and resonator can be removed through removal of the wing nut and vertical pivoting motion until the hinge clip disengages from the Throttle Body. Move the radiator inlet hose clamp into position and detach the hose from the radiator before relocating the clamp at the Thermostat Housing for easily removing the hose from there. When installing the new radiator inlet hose it must be connected to the radiator while being clamped into place at the Thermostat Housing. Insert the hose on the support before you align the hinge clip with the Throttle Body lip and then install both air inlet tube and resonator by moving them downward until the mounting stud passes through the air inlet tube hole. The resonator installation requires use of the retaining wing nut while reattaching the pcv hose then adding the maf/iat sensor assembly and air inlet duct with tube clamps tightened to 4 nm (35 inch lbs.). Finally, fill the cooling system.

To replace the Water Pump outlet pipe, one should start by removing the left front fender wheelhouse inner panel and proceed by taking out the Water Pump. Next, unplug the Water Pump outlet pipe from the Engine Oil Cooler assembly, parting with the o-ring seal (Fig. C). Clean the ring of sealing once it has been removed. For installation, install a new o-ring seal on the Water Pump outlet pipe, slightly lubricated with engine oil. Mount the Water Pump outlet pipe into the Engine Oil Cooler assembly, after which attach a fresh outlet pipe to Water Pump, and then install a Water Pump outlet pipe to Water Pump gasket. Finally, install the Water Pump and the left front fender wheelhouse inner panel.

The replacement procedure of inlet radiator hoses on 4.8l, 5.3l, and 6.0l engines begins with draining the cooling system. Begin by unfastening clamp connections of the air cleaner outlet duct to both Throttle Body and maf-iat sensor before removing the air cleaner outlet duct. Several steps might require removing the engine sight shield. Alongside the task of radiator inlet hose removal), one should first detach the radiator vent inlet hose from its clips and position the inlet hose clamp to the radiator before removing the hose from the radiator. First detach the inlet hose clip securing the Fan Shroud before relocating the inlet hose clamp to the water outlet. This allows removal of the inlet hose from the water outlet. Attach the inlet hose to the water outlet while placing the inlet hose clamp in its proper position. After installing the inlet hose clip to the Fan Shroud proceed with connecting the inlet hose to the radiator while repositioning the inlet hose clamp. The radiator vent inlet hose must be reattached to radiator inlet hose clips but an engine sight shield only needs installation if required. Install the air cleaner outlet duct only after confirming the arrow points towards the Throttle Body attaching stud. Tighten both air cleaner outlet duct clamps to 7 nm (62 inch lbs.) at their positions on the Throttle Body and maf-iat sensor. Complete this work by filling the cooling system.

A necessary first step for radiator outlet hose replacement includes cooling system drainage. The outlet hose clamp must be shifted from the position on the radiator before you detach the radiator outlet hose from its radiator connection. Place the surge tank outlet hose clamp into position then take out the surge tank outlet hose from the surge tank. Next move the outlet hose clamp off the Water Pump and remove the outlet hose from the Water Pump. During installation start by hooking up the Water Pump outlet hose and then placing its clamp on the pump base. Mount the surge tank outlet hose to the surge tank while placing the surge tank outlet hose clamp in position. When finished install the radiator outlet hose to the radiator while positioning the outlet hose clamp on the radiator. After completing these steps fill the cooling system.

The first step to replace the Radiator vent inlet hose demands draining the cooling system. First position the Radiator vent inlet hose clamp to a different location then remove the hose connecting to the Radiator. Move the vent inlet hose clamp off its place on the surge tank before extracting the hose from the tank. You should install the vent inlet hose on the surge tank then relocate the vent inlet hose clamp onto the surge tank. The Radiator installation requires you to connect the vent inlet hose to the Radiator and after apply the vent inlet hose clamp back to the Radiator. Finally, fill the cooling system.

The replacement process of the inlet Radiator Hose (8.1L) begins with draining the cooling system fluid. Remove the inlet hose from the Radiator by moving the clamp on top of the Radiator. The replacement of the inlet hose starts with relocating the clamp at the water crossover and removing the hose from this point. Begin installation by putting the inlet hose onto the water crossover followed by clamping it down using the inlet hose clamp at that location. Begin by adding the inlet hose to the Radiator before placing its clamp at the Radiator location. You must complete the cooling system filling as the final step of this operation.

Loosen the air cleaner outlet duct clamps at the throttle body and the MAF/IAT sensor, then remove the air cleaner outlet duct.

First, drain the cooling system.

Reposition the outlet hose clamp at the water pump and remove the outlet hose from the water pump.

Fill the cooling system.

Install the heater and surge tank hoses to the mounting clip and fill the cooling system.

Fill the cooling system.

Reposition the inlet hose clamp from the water outlet and remove the inlet hose from the water outlet.

Install the outlet hose to the water pump and reposition the outlet hose clamp to the water pump, ensuring to align the arrow at the throttle body end of the duct with the throttle body attaching stud.

Reconnect the PCV hose to the air cleaner outlet duct, install the MAF/IAT sensor assembly and air inlet duct, and tighten the clamps to 4 Nm (35 inch lbs.).

Start by installing the vent inlet hose to the surge tank and repositioning the vent inlet hose clamp to the surge tank.

Remove the radiator outlet hose from both the surge tank and the water pump, then reposition the clamp at the radiator before removing the hose itself.

Connect the inlet hose to the radiator and secure the inlet hose clamp at the radiator.

Reattach the inlet hose clip.

First, drain the cooling system.

Loosen the air cleaner outlet duct clamps at the throttle body and MAF/IAT sensor, then remove the radiator inlet hose clip from the outlet duct and take out the air cleaner outlet duct.

Install the vent inlet hose to the radiator and reposition the vent inlet hose clamp to the radiator.

Attach the inlet hose to the water outlet and reposition the inlet hose clamp.

Reattach the inlet hose clip to the fan shroud and install the radiator vent inlet hose to the radiator inlet hose clips.

If necessary, reinstall the engine sight shield.

Install the new radiator inlet hose onto the water pump and then to the radiator.

Reposition the outlet hose clamp at the water pump and remove the outlet hose from the water pump.

Loosen the hose clamp to separate the MAF/IAT sensor assembly from the air inlet tube, then disconnect the PCV hose from the air cleaner outlet duct.

First, drain the cooling system.

Loosen the air cleaner outlet duct clamps at the throttle body and MAF/IAT sensor, then remove the radiator inlet hose clip from the outlet duct and take out the air cleaner outlet duct.

Attach the new radiator outlet hose.

Install the inlet hose to the radiator and position the inlet hose clamp at the radiator.

Reposition the vent inlet hose clamp from the surge tank and remove the vent inlet hose from the surge tank.

Tighten the air cleaner outlet duct clamps at the throttle body and MAF/IAT sensor, ensuring the clamp screws are tightened to 7 Nm (62 inch lbs.).

Begin by installing the vent inlet hose to the surge tank and repositioning the vent inlet hose clamp to the surge tank.

Remove the air inlet tube and resonator by taking off the retaining wing nut and pivoting the assembly upward until the hinge clip releases from the throttle body.

Start by installing the outlet hose to the radiator and positioning the outlet hose clamp at the radiator.

Reposition the outlet hose clamp at the water pump and remove the outlet hose from the water pump.

Ensure a firm push onto the heater core pipe until an audible click is heard.

Reinstall the water pump and the left front fender wheelhouse inner panel.

Reposition the vent inlet hose clamp from the radiator and remove the vent inlet hose from the radiator.

Position the vent inlet hose clamp at the radiator, install the vent inlet hose clip at the fan shroud, and attach the vent inlet hose to the throttle body, ensuring the vent inlet hose clamp is correctly positioned at the throttle body.

Drain the cooling system.
