Make sure this part fits

GM 24507563

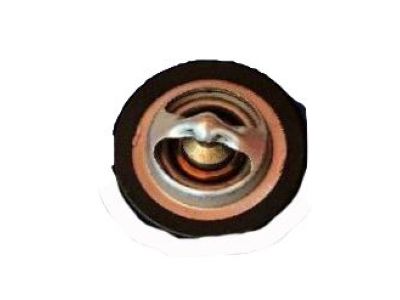

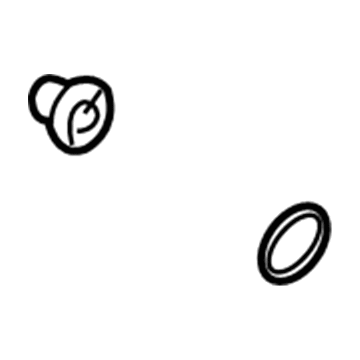

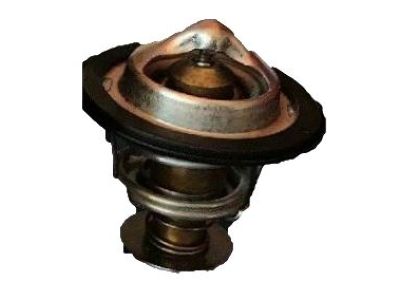

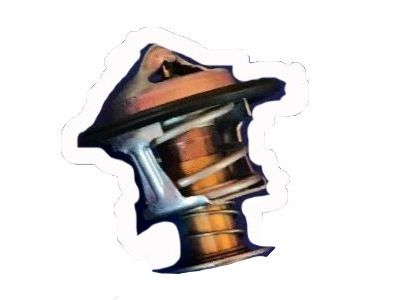

Thermostat

1992-2009 GM

Customer Questions & Expert Answers (39)
GM 24507563 Thermostat
GM 24507563 Thermostat
  • Part Description
    Thermostat, Engine Coolant Temperature
  • Replaced By
    19435095
  • Manufacturer
    General Motors
Make sure this part fits
$13.11 MSRP: $39.94
You Save: $26.83 (68%)
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers
  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number24507563
    Part DescriptionThermostat, Engine Coolant Temperature
    Item Dimensions3.3 x 2.1 x 2.1 inches
    Item Weight0.50 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerGeneral Motors
    SKU24507563
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65
  • Vehicle Fitment

    Year Make Model Trim Engine
    1994-2005 Buick CenturyCustom, Limited, Special, Special Edition6 Cyl 3.1 L GAS
    1992-1996 Buick RegalCustom, Limited6 Cyl 3.1 L GAS
    2002-2007 Buick RendezvousCX, CX Plus, CXL, CXL Plus6 Cyl 3.4 L GAS, 6 Cyl 3.5 L GAS
    1994-1998 Buick SkylarkCustom, Gran Sport, Limited, Olympic Gold Edition6 Cyl 3.1 L GAS
    2005-2006 Buick TerrazaCX, CXL6 Cyl 3.5 L GAS, 6 Cyl 3.9 L GAS
    1992-1996 Chevrolet BerettaBase, GT, GTZ, Z266 Cyl 3.1 L GAS
    1993-1994 Chevrolet CavalierRS, Z246 Cyl 3.1 L GAS
    1992-1996 Chevrolet CorsicaBase, LT, LTZ6 Cyl 3.1 L GAS
    2005-2009 Chevrolet EquinoxLS, LT, LTZ6 Cyl 3.4 L GAS
    2000-2005 Chevrolet ImpalaBase6 Cyl 3.4 L GAS
    View More
  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 24507563 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 24507563 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the thermostat on a 3.1L engine on Buick Century? Posted by Customer
    A:
    To substitute the Thermostat for a 3.1l motor, first you will have to remove the air cleaner intake duct and partially empty out the cooling system. Locate the compression needle for the hose reel (J 38185) in order to reposition it into the water hose housing, then remove the radiator water inlet needle from the water housing. Then, take out the bolts of the exhaust crossover pipe and water outlet housing, and remove the water outlet housing and gasket. Remove the Thermostat and clean and inspect the water outlet housing mating gasket surfaces. For installation it starts with the installation of the Thermostat, an installation of water outlet gasket, and installations of water outlet housing. Mount the water outlet housing bolts, torquing them to 25 nm (18 ft. Lbs.). Refit the exhaust crossover pipe and the radiator inlet hose to the water outlet housing by using the hose clamppliers (J 38185) and reposition and fit the hose clamp. Lastly, reinstall the air cleaner intake duct and add fuel to the cooling system.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the thermostat (LA1) on Buick Rendezvous? Posted by Customer
    A:
    All required tools to replace the Thermostat (LA1) include the following: hose clamp pliers (J 38185). Hose clamp pliers (J 38185). Start by removing both the air cleaner and duct assembly before draining enough coolant so the Thermostat stays beneath the visible level. Before the replacement the crossover Exhaust Pipe must be detached together with the Radiator Hose which connects to the Thermostat Housing. Disassemble the Thermostat Housing bolts before cleaning each thread thoroughly while removing the components together with their gasket. Use a clean cloth to wipe down both surfaces where the Thermostat connects. Begin by mounting the new Thermostat followed by installing both the Thermostat Housing and gasket. Start by placing the new Thermostat before adding the housing and gasket. Tighten the bolts to 25 nm (18 ft. Lbs.) then reinstall the Radiator Hose and crossover Exhaust Pipe. Last, replace the air cleaner and duct assembly before completing the cooling system refill.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the thermostat on Buick Terraza? Posted by Customer
    A:
    The hose clamp pliers (J 38185) should be used to detach the Thermostat Housing. You should first remove the Thermostat before cleaning and checking the mating surfaces between the Thermostat Housing gasket. Start by mounting the new Thermostat followed by reinstalling the Thermostat Housing for installation.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the thermostat on Chevrolet Impala? Posted by Customer
    A:
    To replace the Thermostat, one should first remove the air cleaner intake duct, then partially drain the cooling system. Remove the hose clamp using hose clamp pliers (J 38185), and put it back in place to reposition the hose clamp from the water outlet housing. Then remove the radiator inlet hose from the water outlet housing. Next, remove the exhaust crossover pipe and the bolts of the water outlet house; then remove water outlet house and the gasket. Remove the Thermostat and clean the mating surfaces of the water outlet. In installation, begin by fixing the Thermostat and then followed by fitting of water outlet gasket and housing. Mount the water outlet housing bolts tightening to 25 nm (18 ft. Lbs) and re-mounting the exhaust crossover pipe and radiator inlet hose on to the water outlet housing. Deploy the hose clamp pliers (J 38185) once more to move and attach the hose clamp to the water outlet protection housing, after which place back the air cleaner intake duct. Lastly, fill up the cooling system and check for leaks.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the thermostat on Chevrolet Equinox? Posted by Customer
    A:
    Turn off the car using a tool around the Thermostat and pull up to remove it. Drain the coolant to a lower position than the Thermostat. Before removing the Thermostat, disconnect the fuel injector sight shield. Next, unscrew the crossover Exhaust Pipe and the Radiator Hose from the Thermostat Housing. Take off the Thermostat Housing bolts and clean any sealer off the bolt threads prior to undoing the Thermostat Housing and the Thermostat . Clean the mating surfaces of the place before fitting in the second Thermostat and the Thermostat Housing. Apply rtv sealer, gm p/n 12378478 (Canadian P/N 88900041) or an equivalent, to the Thermostat Housing bolt threads, and install the Thermostat Housing bolts with a torque of 25 nm (18 ft. Lbs.). Reattach the Radiator Hose to the Thermostat Housing, then the crossover Exhaust Pipe and then put back the fuel injector site shield. Tidy up everything and inspect the cooling system for leaks and make repairs when needed.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to service and repair the thermostat on Chevrolet Malibu? Posted by Customer
    A:
    To service and repair Thermostat, disconnect the negative cable battery and drain/recuperate the coolant. Unscrew the air cleaner assembly and disconnect the surge tank line from the outlet for the coolant. Then, remove the coolant outlet by removing the attaching bolts and the Thermostat. Clean the mating surface of the inlet manifold and coolant outlet. For installation, put the Thermostat into inlet manifold and fix the coolant outlet tightly attaching the bolts and tightening them up to 25 nm (18 ft. Lbs.). Replace the air cleaner assembly and the surge tank line to the coolant outlet. Flushing the engine with coolant and reconnecting the negative Battery Cable, tighten the bolt to 16 nm (12 ft. Lbs.). Finally, check the system to make sure it does not leak.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to service and repair the thermostat on Chevrolet Lumina? Posted by Customer
    A:
    To service and repair the Thermostat, you should partially drain the cooling system first. Carefully do remove the throttle body air inlet duct, followed by the air pipe and the exhaust crossover pipe. While holding the hose clamp in place with hose clamp pliers (J38185) move the hose clamp back to the Thermostat Housing and then remove the hose from the Thermostat Housing. Remove the Thermostat Housing bolts, then unlock the Thermostat from the housing gasket and then remove the Thermostat. The mating surfaces should be cleaned prior to installing the new Thermostat. Next, install Thermostat Housing and the gasket to the Intake Manifold, ensuring to tighten the Thermostat Housing bolts to 25 nm (18 ft. Lbs). Replace the exhaust crossover pipe and the air pipe, after which, connect the Radiator Hose to the Thermostat Housing. Reposition and install the hose clamp at the Thermostat Housing using hose clamp pliers (J38185) without forgetting to carefully reinstall the throttle body air inlet duct and fill up the cooling system and finally inspect the system for leaks.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the thermostat on a 3.4L engine on Chevrolet Monte Carlo? Posted by Customer
    A:
    To replace the Thermostat on a 3.4l engine, the air cleaner intake duct will be removed and cooling system will be drained while partially. Again, with the hose clamp pliers (J 38185), reposition the hose clamp from the water outlet housing, after that removed the radiator inlet hose from the water outlet housing. Next, unscrew the exhaust crossover pipe and the water outlet housing bolts, and then remove the water outlet housing and gasket. Remove the Thermostat, then clean the water outlet mating surfaces. For installation, installation of the Thermostat is the first step, followed by the installation of the water outlet gasket and house. Install the bolts for water outlet housing and tighten to 25 nm (18 ft. Lbs.), reinstall the crossover pipe for exhaust and the radiator inlet hose to the water outlet housing. Use hose clamp pliers (J 38185) once more to move and secure the hose clamp on the water outlet housing the last part will be reinstallation of the air cleaner intake duct and filling the cooling system.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to service and repair the thermostat on Chevrolet Venture? Posted by Customer
    A:
    The first step for servicing and repairing the Thermostat begins with taking away the air cleaner and duct assembly. Pump out all coolant until the fluid rests below the position of the Thermostat. After detachment of the Radiator Hose from the Thermostat Housing you can remove the Thermostat Housing bolts but make sure to clean every trace of sealer off the bolt threads. Begin by removing the Thermostat Housing together with its gasket and then the Thermostat from the vehicle. Clean the areas where these components were installed. Position the Thermostat before installing the Thermostat Housing together with its gasket. Open the housing bolt threads with rtv sealer (GM P/N 1052366 or equivalent) before installing the housing bolts while tightening them to a torque of 25 nm (18 ft. Lbs.). After reconnecting the Radiator Hose to the Thermostat Housing you should reinstall the air cleaner alongside the duct assembly. After system filling check for leaks to make needed warp repairs.
    Posted by ChevyPartsGiant Specialist
    Q:
    What should you do before installing the new thermostat for the 2001 Buick Century? Posted by Customer
    A:
    Clean the mating surfaces.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done with the thermostat and water outlet housing for the 2004 Buick Century? Posted by Customer
    A:
    Take out the thermostat and clean and inspect the water outlet housing gasket mating surfaces.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should you do before installing the new thermostat for the 2002 Buick Century? Posted by Customer
    A:
    Clean the water outlet gasket mating surfaces.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the torque specification for the bolts for the 2000 Buick Century? Posted by Customer
    A:
    Tighten them to 25 Nm (18 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done after removing the water outlet housing bolts for the 2003 Buick Century? Posted by Customer
    A:
    Remove the water outlet housing and the gasket.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the first step to replace the thermostat (RPO LX9) for the 2006 Buick Rendezvous? Posted by Customer
    A:
    First, remove the thermostat housing.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done with the old thermostat O-ring seal for the 2007 Buick Rendezvous? Posted by Customer
    A:
    Discard the old thermostat O-ring seal.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What type of sealer should be applied to the thermostat housing bolt threads for the 2007 Chevrolet Equinox? Posted by Customer
    A:
    Apply RTV sealer, GM P/N 12378478 (Canadian P/N 88900041) or an equivalent.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done after removing the water outlet bolts for the 2005 Chevrolet Equinox? Posted by Customer
    A:
    Take out the water outlet.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be reattached after securing the thermostat housing for the 2006 Chevrolet Equinox? Posted by Customer
    A:
    Reattach the radiator hose to the thermostat housing, followed by the crossover exhaust pipe, and finally reinstall the fuel injector sight shield.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done after repositioning the hose clamp for the 2000 Chevrolet Impala? Posted by Customer
    A:
    Partially drain the cooling system, then disconnect the radiator hose from the thermostat housing and remove the exhaust crossover pipe.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be applied to the thermostat housing bolt threads for the 2008 Chevrolet Equinox? Posted by Customer
    A:
    Apply RTV sealer, GM P/N 12378478 (Canadian P/N 88900041) or an equivalent.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the first step to replace the engine coolant thermostat (LNJ) (3.4L) for the 2009 Chevrolet Equinox? Posted by Customer
    A:
    First, remove the fuel injector sight shield.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the final step in the process for the 2005 Chevrolet Malibu? Posted by Customer
    A:
    Reinstall the air cleaner intake duct and then fill the cooling system.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be removed after disconnecting the radiator hose for the 2000 Chevrolet Monte Carlo? Posted by Customer
    A:
    Remove the water outlet housing bolts, followed by the water outlet housing and gasket, and then take out the thermostat.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done with the O-rings before reinstalling the thermostat housing for the 2006 Chevrolet Malibu? Posted by Customer
    A:
    Lubricate the O-rings with coolant only before reinstalling the thermostat housing to the water pump feed pipe.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the first step to replace the thermostat (L61) for the 2004 Chevrolet Malibu? Posted by Customer
    A:
    First, drain the cooling system.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What components need to be removed next for the 2002 Chevrolet Monte Carlo? Posted by Customer
    A:
    Remove the exhaust crossover pipe and the water outlet housing bolts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done after installing the new thermostat and housing for the 2003 Chevrolet Malibu? Posted by Customer
    A:
    Inspect the system for leaks to ensure proper operation.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the first step to replace the thermostat for the 2002 Chevrolet Malibu? Posted by Customer
    A:
    First, remove the thermostat housing.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    How do you remove the radiator inlet hose for the 2004 Chevrolet Monte Carlo? Posted by Customer
    A:
    Use the Hose Clamp Pliers (J 38185) to reposition the hose clamp from the water outlet housing, then remove the radiator inlet hose from the water outlet housing.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done after reattaching the water outlet housing for the 2004 Chevrolet Impala? Posted by Customer
    A:
    Reattach the radiator inlet hose to the water outlet housing and use the Hose Clamp Pliers (J 38185) to reposition the hose clamp.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the torque specification for the water outlet housing bolts for the 2003 Chevrolet Monte Carlo? Posted by Customer
    A:
    Tighten the water outlet housing bolts to 25 Nm (18 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be done after removing the radiator hose for the 2003 Buick Rendezvous? Posted by Customer
    A:
    Remove the thermostat housing bolts, ensuring to clean any sealer from the bolt threads.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be removed after repositioning the hose clamp for the 2005 Chevrolet Impala? Posted by Customer
    A:
    Remove the radiator inlet hose from the water outlet housing.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What is the first step to replace the thermostat for the 2001 Chevrolet Malibu? Posted by Customer
    A:
    First, remove the thermostat housing and then the thermostat itself.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be applied to the thermostat housing bolt threads for the 2001 Chevrolet Venture? Posted by Customer
    A:
    Apply RTV sealer (GM P/N 1052366 or the equivalent).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be applied to the thermostat housing bolt threads for the 2005 Chevrolet Venture? Posted by Customer
    A:
    Apply RTV sealer (GM P/N 1052366 or equivalent).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
    Q:
    What should be applied to the thermostat housing bolt threads for the 2002 Chevrolet Venture? Posted by Customer
    A:
    Apply RTV sealer (GM P/N 1052366 or equivalent).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Thermostat
